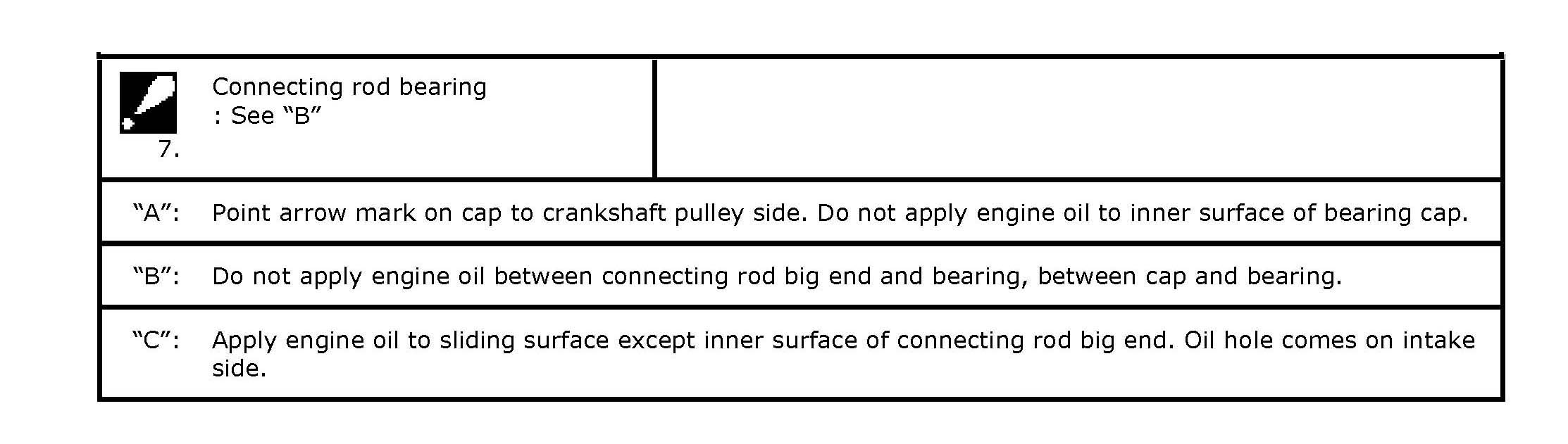

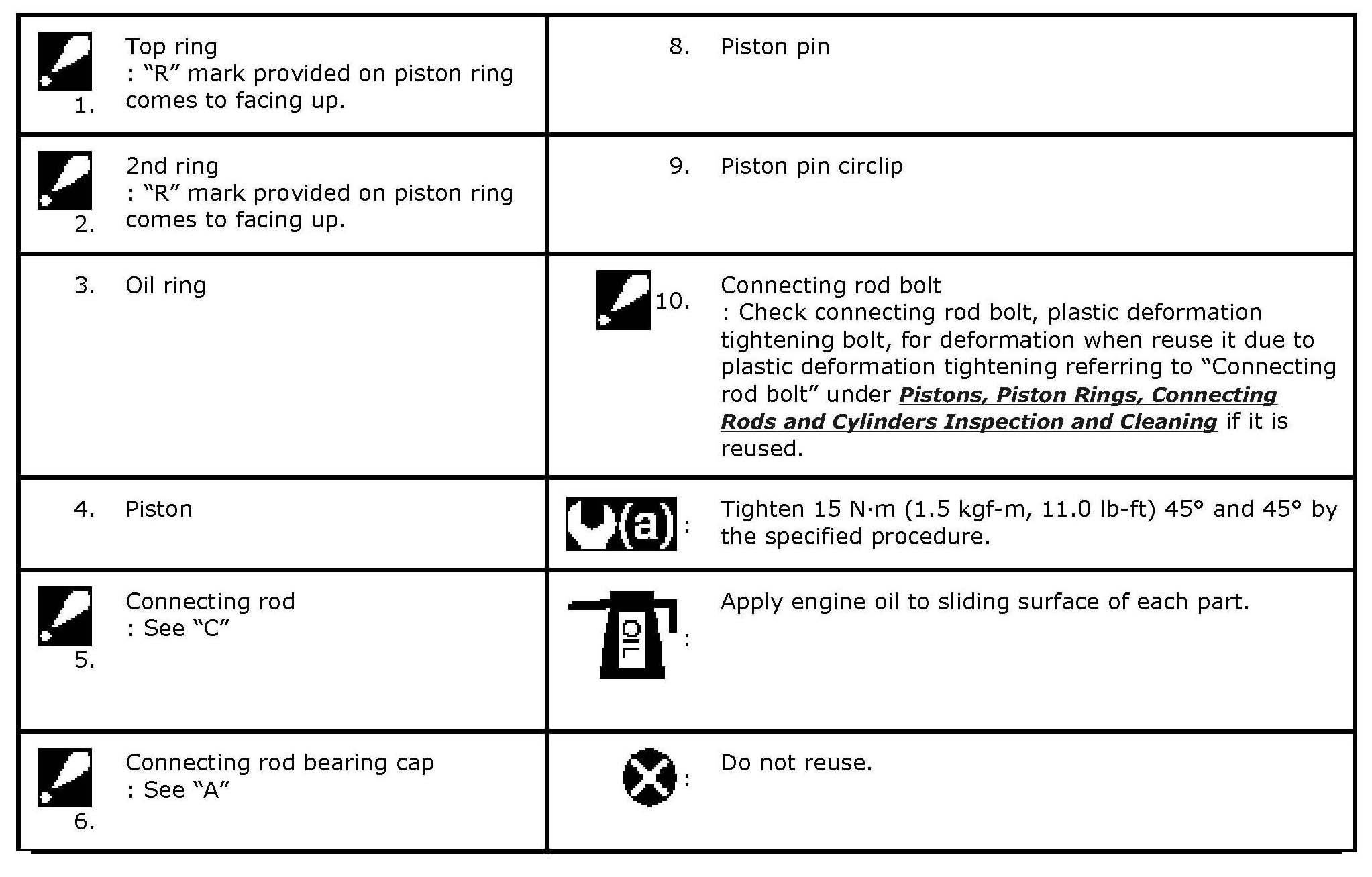

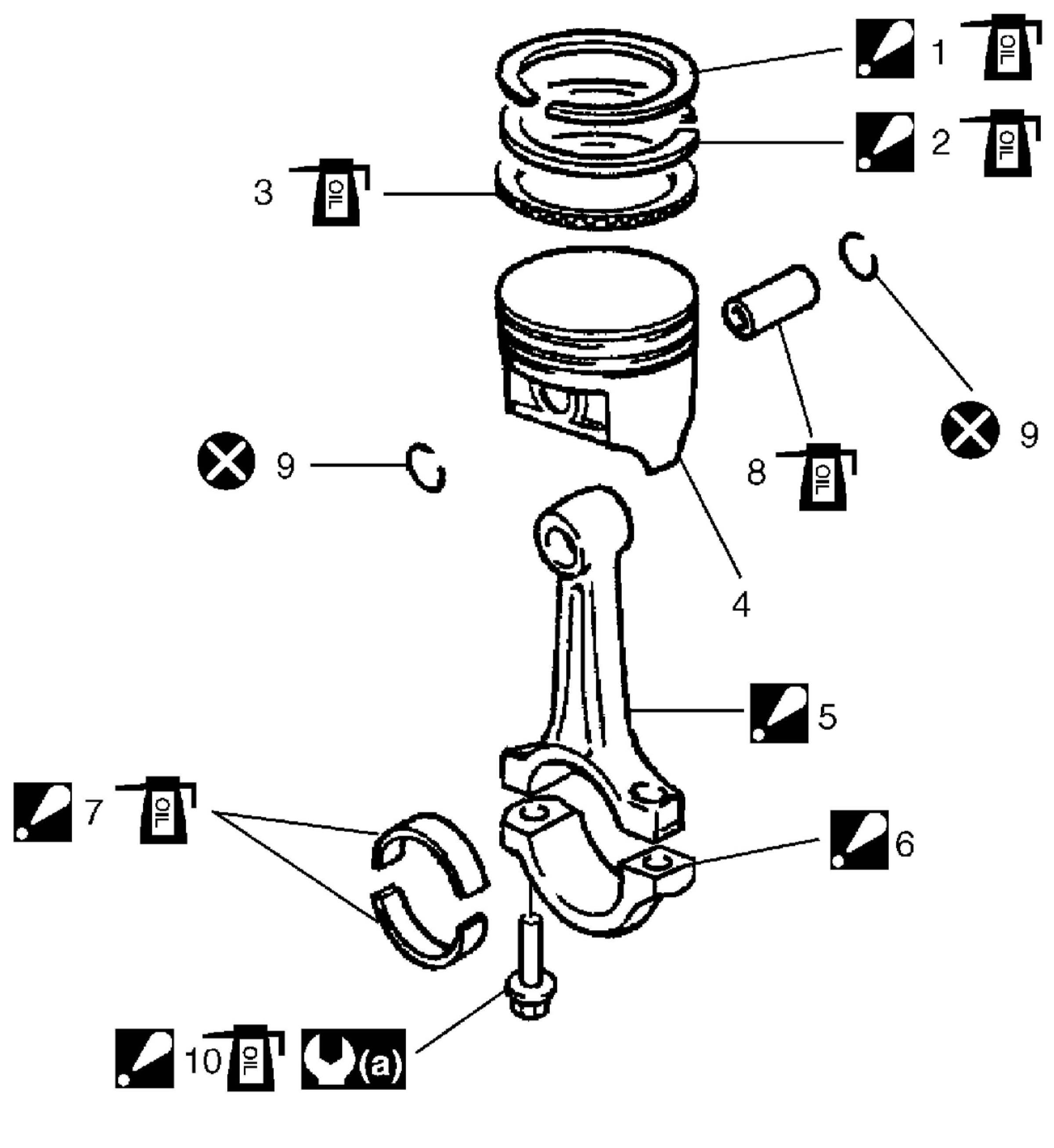

Pistons, Piston Rings, Connecting Rods and Cylinders Components

Pistons, Piston Rings, Connecting Rods and Cylinders Components
