EBD Warning Light (Brake Warning Light) Check

EBD Warning Light (Brake Warning Light) Check

NOTE: Perform this check on a level place.

1. Turn ignition switch ON with parking brake applied.

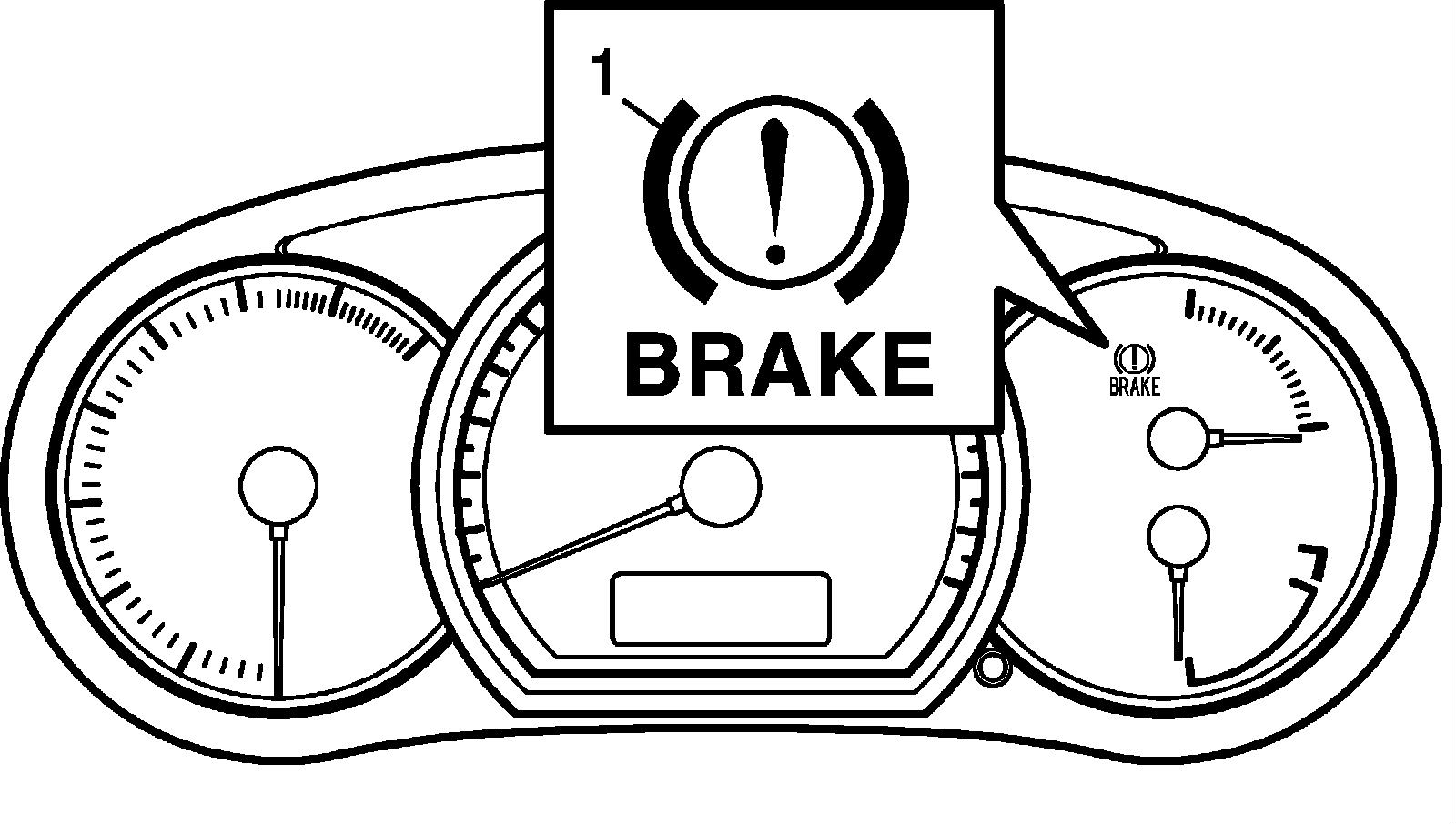

2. Check that EBD warning light (brake warning light) (1) is turned ON.
3. Release parking brake with ignition switch ON and check that EBD warning light (brake warning light) goes off.
If it doesn't go off, go to EBD Warning Light (Brake Warning Light) Comes ON Steady.
