Body Control System Schematic Diagram

Body Electrical Control System Wiring Circuit Diagram

Reference: BCM General Description

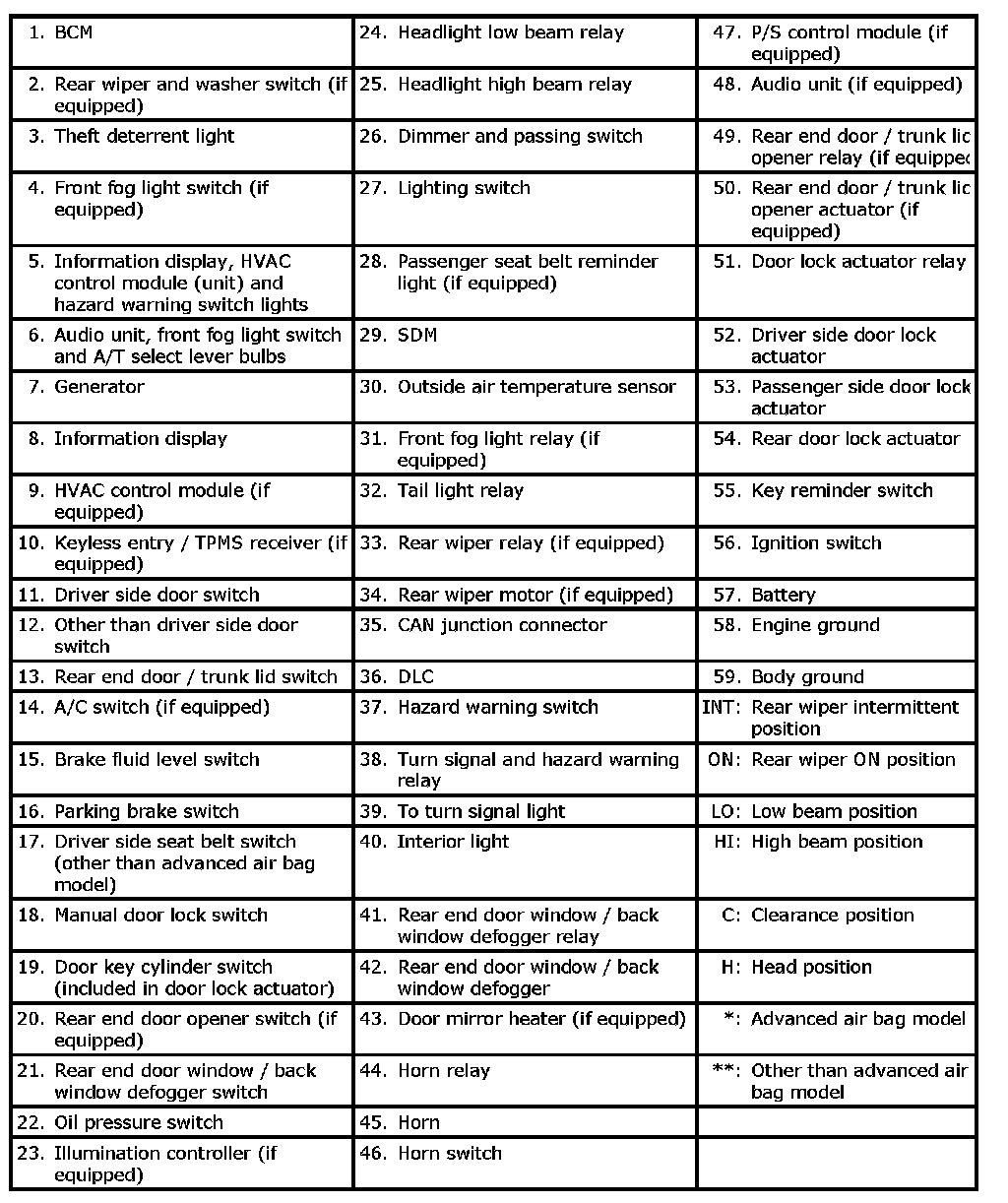

Body Electrical Control System Wiring Circuit Diagram 1:

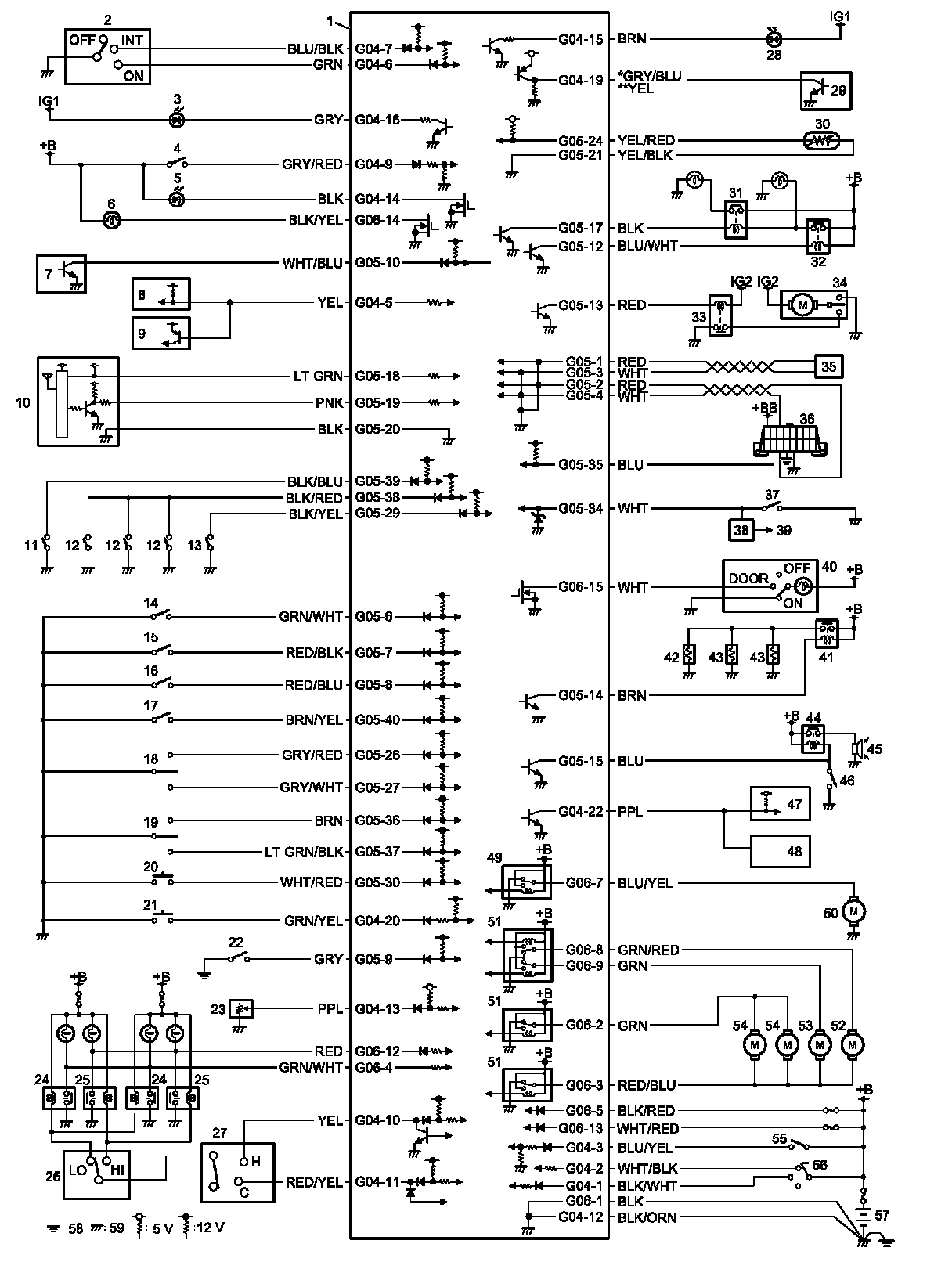

Body Electrical Control System Wiring Circuit Diagram 2:
