Home >> Suzuki >> 2008 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Keyless Entry >> Locations

Keyless Entry: Locations

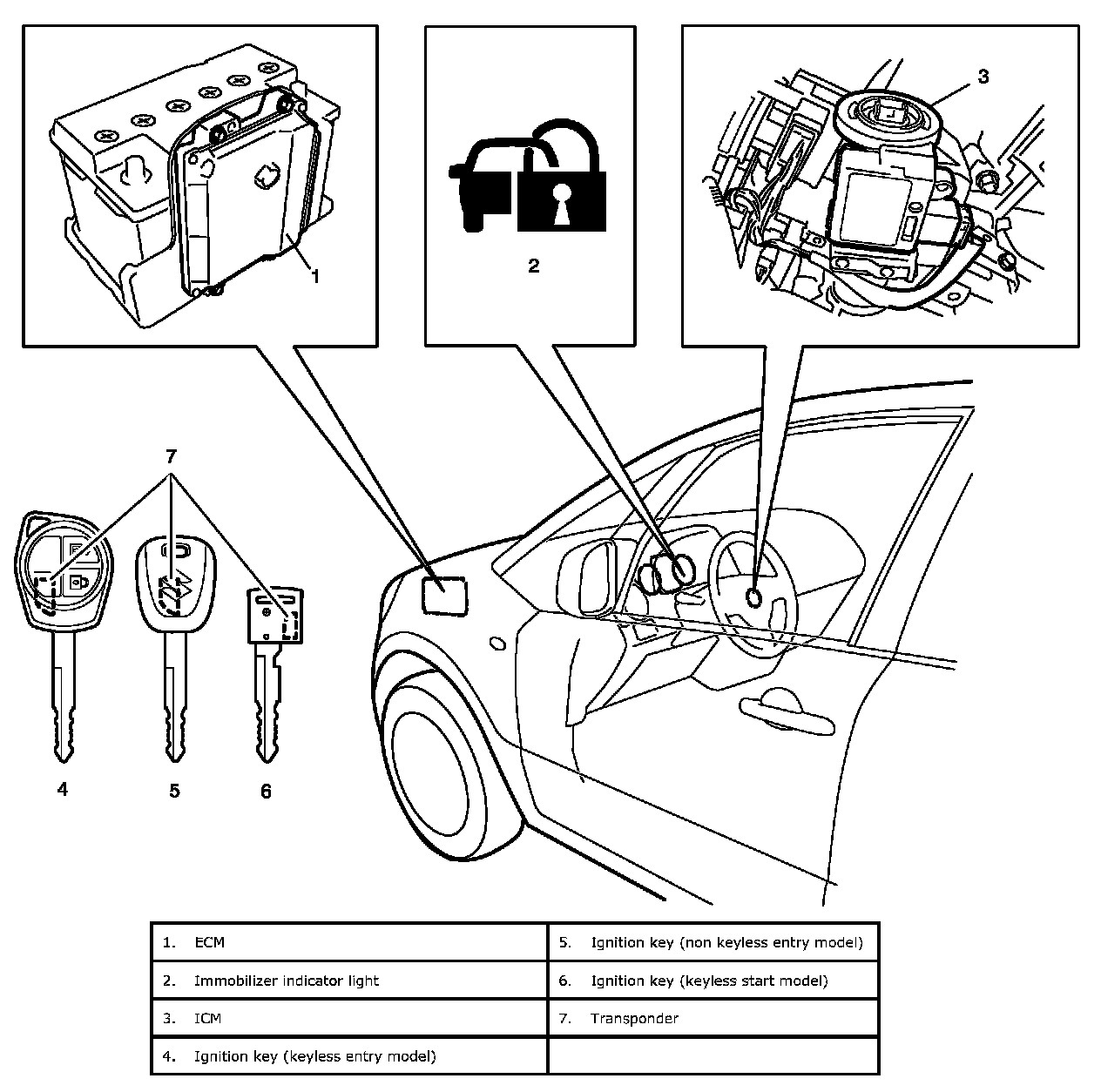

Immobilizer Control System Components Location:

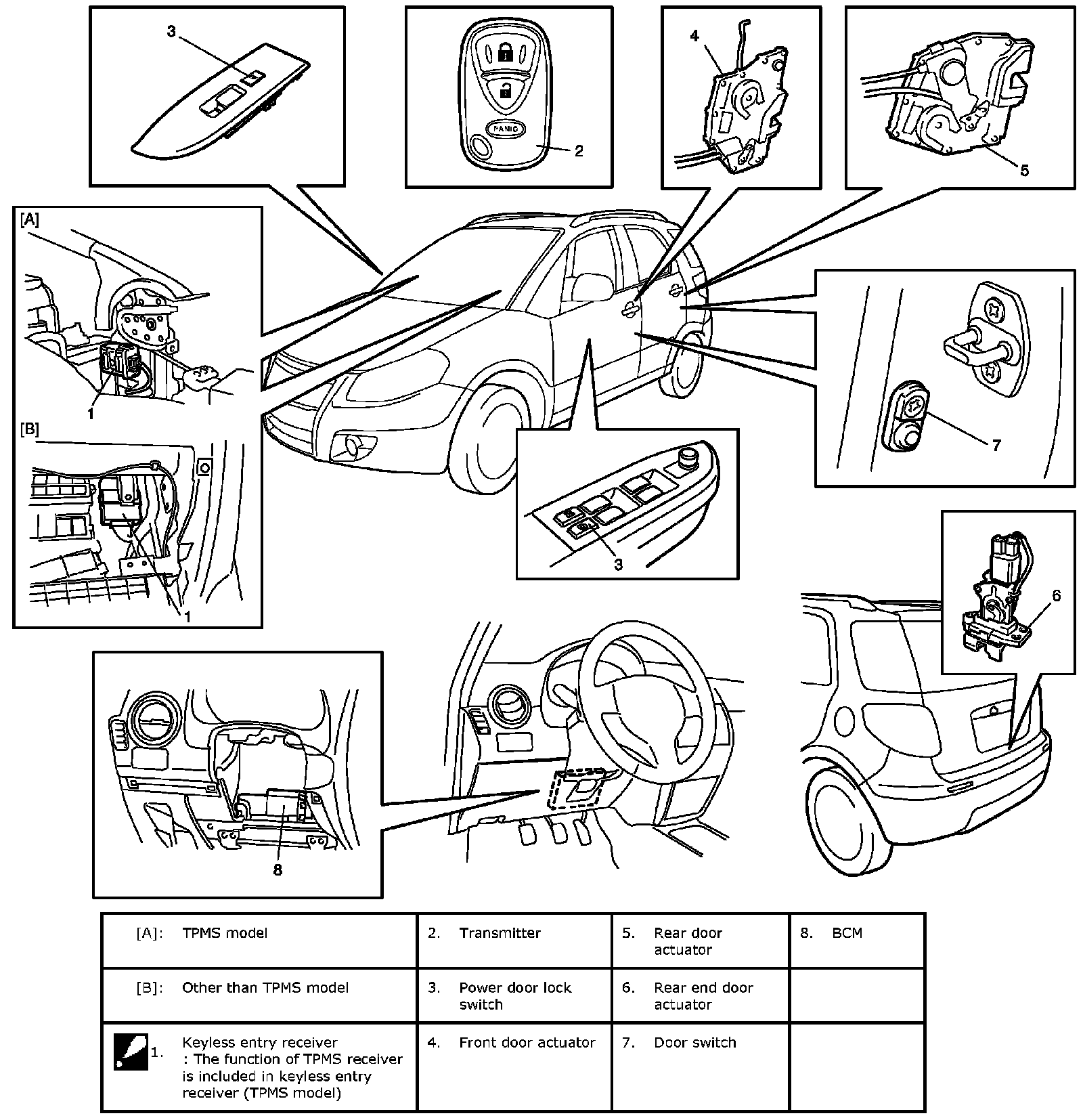

Power Door Lock And Keyless Entry System Component Location (If Equipped):
