Control Systems
>>
Immobilizer Control System
Immobilizer Control System

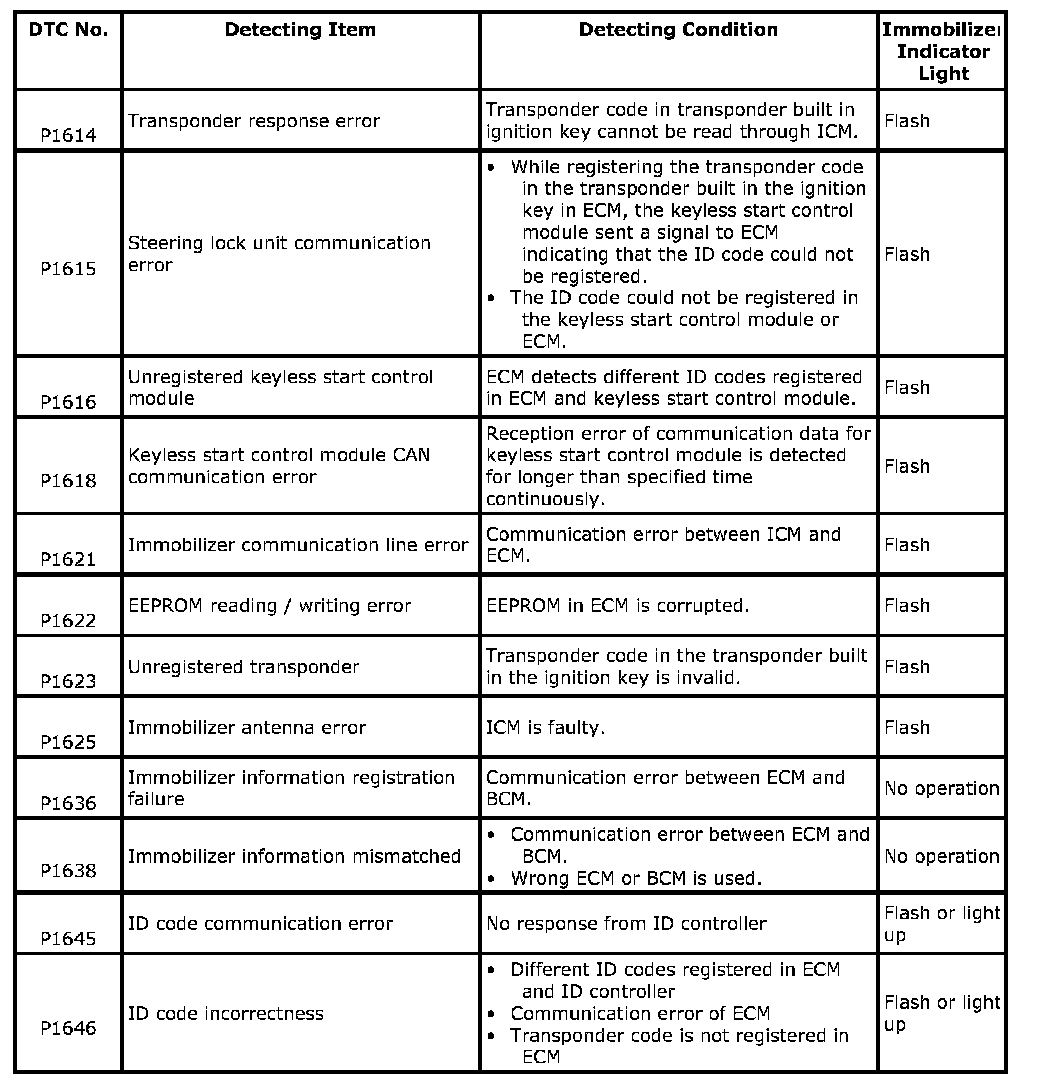

DTC Table
ECM
NOTE:
ECM detects DTC. ICM does not.
P1614-P1646:
NOTE:
If any DTC other than the above DTCs is detected, refer to DTC Table.
