C1254

DTC C1254: 2WD/4WD Switch Malfunction

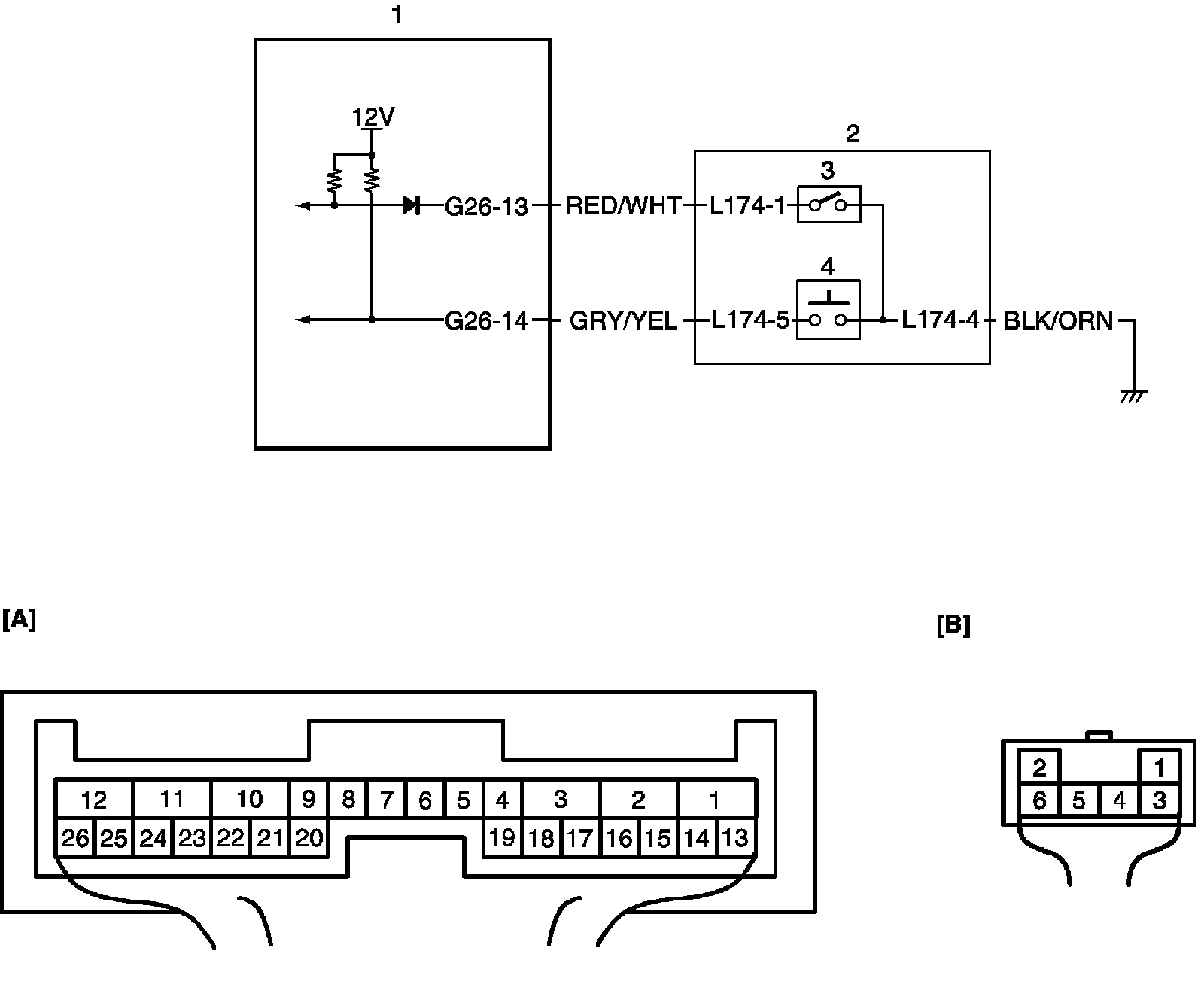

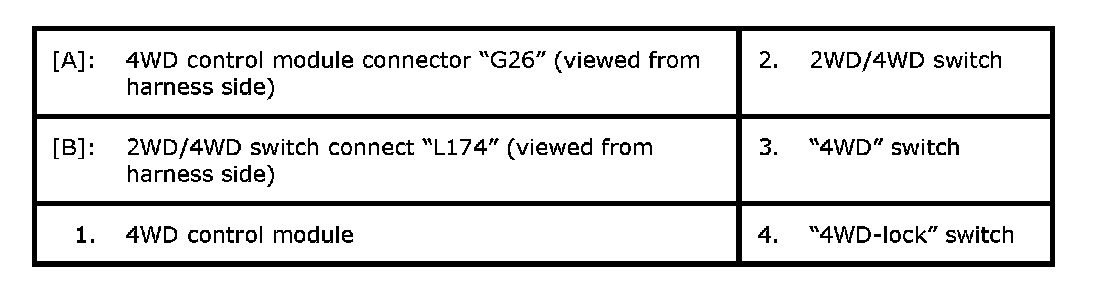

Wiring Diagram

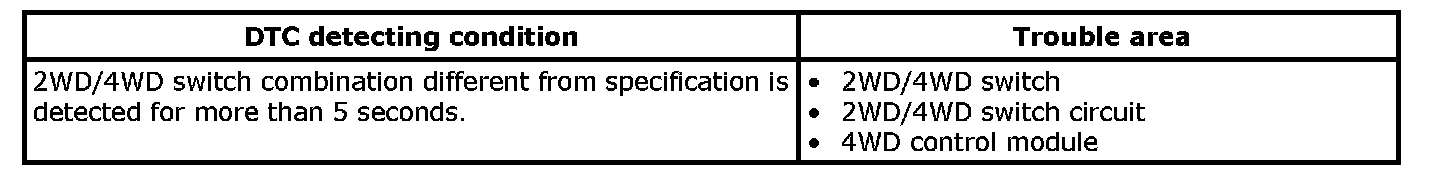

DTC Detecting Condition and Trouble Area





DTC Confirmation Procedure
1. Clear DTC using scan tool.
2. Select 2WD/4WD switch to "2WD" position and keep its position for 10 seconds. Similarly select 2WD/4WD switch to "AUTO" and "LOCK" position.
3. Check DTC.

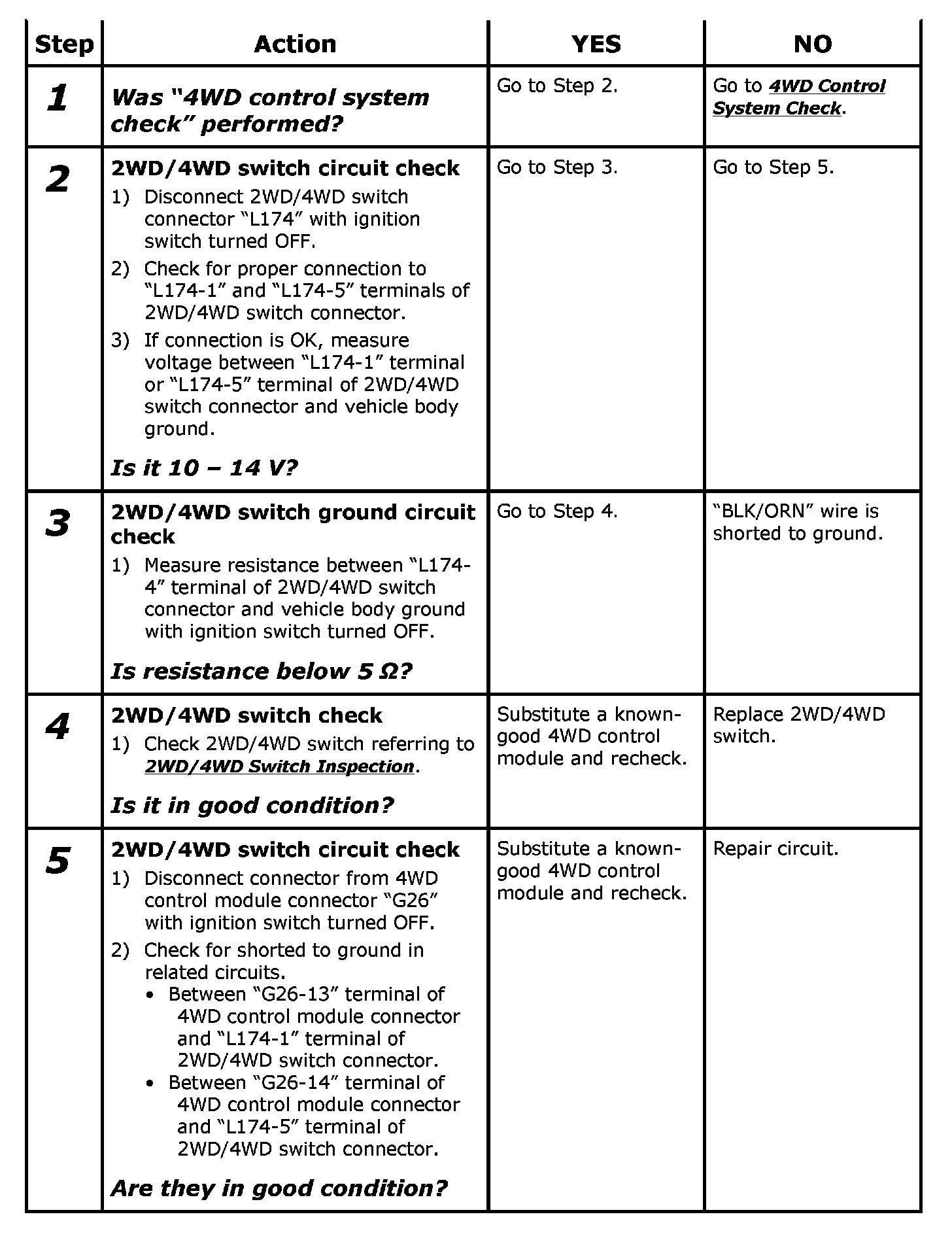

Troubleshooting

Step 1-Step 5:
