Home >> Suzuki >> 2008 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> B Code Charts >> B1551

B1551

DTC B1551: Serial Communication Circuit Malfunction

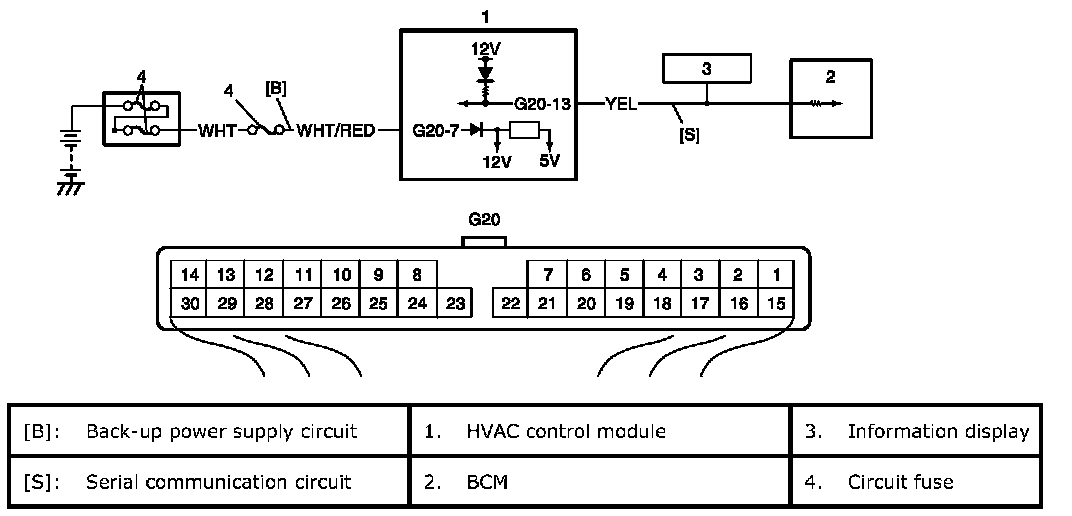

Wiring Diagram

Wiring Diagram:

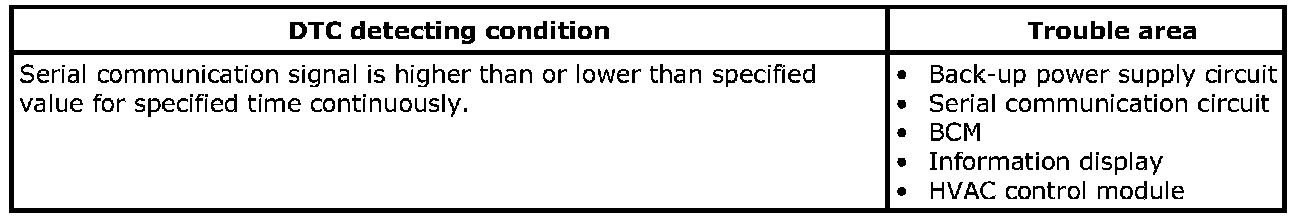

DTC Detecting Condition and Trouble Area

DTC Detecting Condition And Trouble Area:

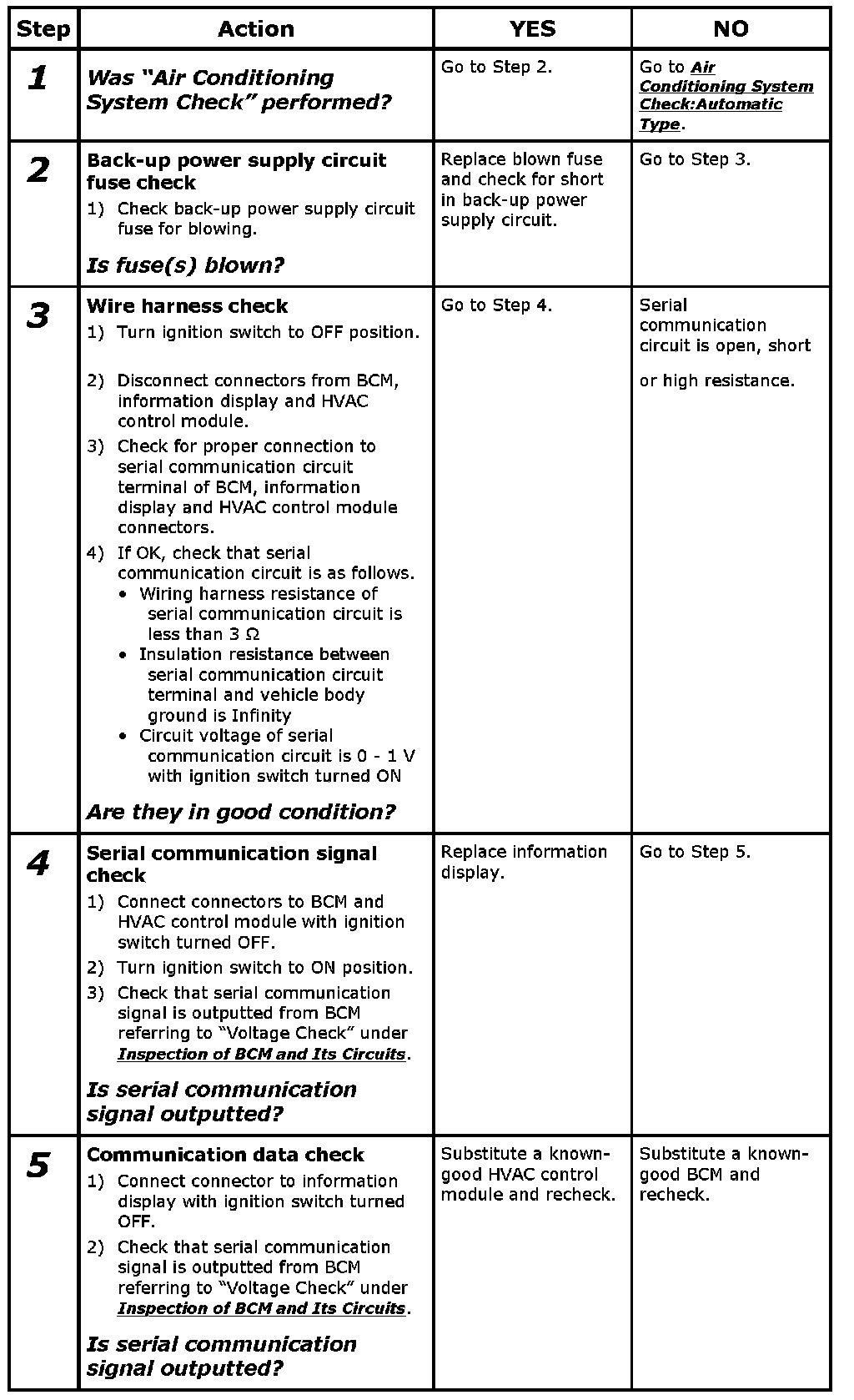

DTC Troubleshooting

Step 1-5:
