Hydraulic Hose: Service and Repair

Clutch Fluid Pipe Removal and Installation

Removal

CAUTION: Do not allow fluid to get on painted surface. It may cause painted surface damage.

1. Remove dust and dirt from each joint of pipe to be disconnected and clean around brake master cylinder reservoir cap.
2. Take out fluid with syringe or such from brake master cylinder reservoir.

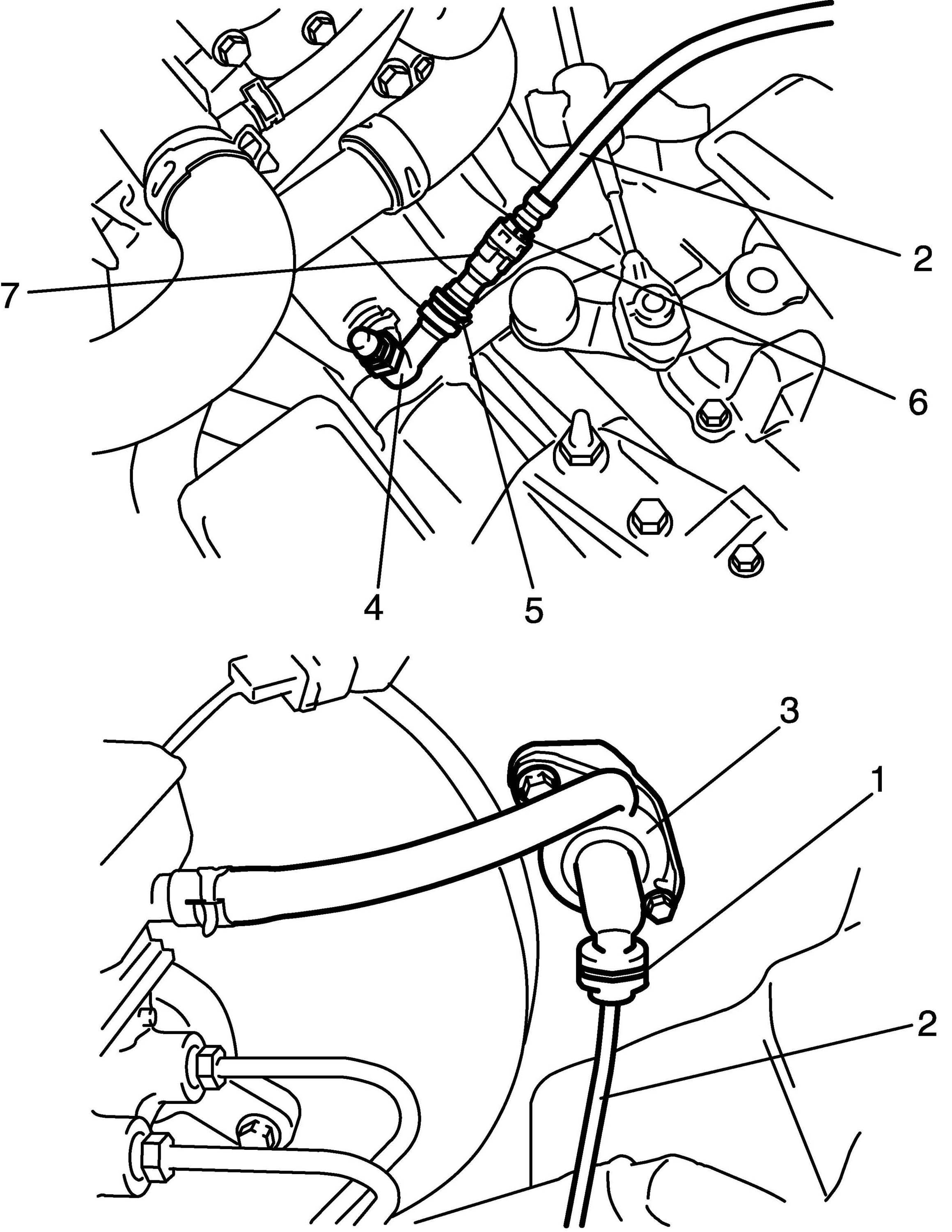

3. Pull clamp (1) of clutch master cylinder (3) and pull clamp (5) of fluid pipe joint (4), and then disconnect clutch fluid pipe (2).
4. Pull clamp (6) of damper (7), and then disconnect damper (7) from clutch fluid pipe (2).





Installation
Reverse removal procedure for installation noting the following.

CAUTION:
^ Do not allow fluid to get on painted surface.
^ Do not allow pipe to contact hard against vehicle body or other parts.

^ Install each clamp securely.
^ After installation, check clutch pedal free travel and bleed air from clutch system.
^ Check fluid leakage.
^ Add fluid to MAX level of reservoir.
