Clutch Master Cylinder: Service and Repair

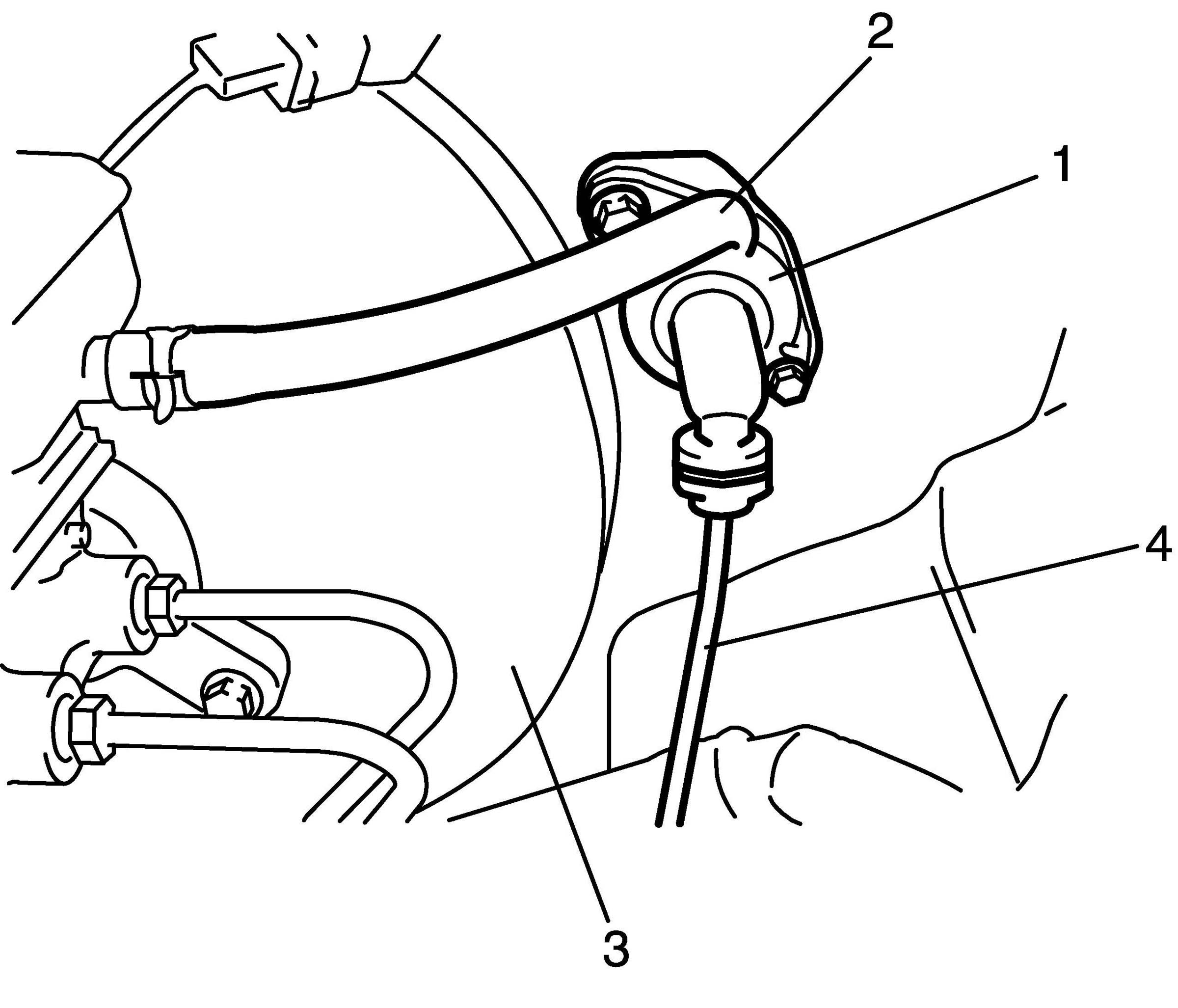

Clutch Master Cylinder Removal and InstallationRemoval
1. Clean around brake master cylinder reservoir cap and take out fluid with syringe or such from brake master cylinder reservoir.
2. Disconnect clutch fluid pipe (4) from clutch master cylinder (1).
3. Disconnect clutch reservoir hose (2).
4. Remove push rod from clutch pedal, and then remove clutch master cylinder.
Installation
Reverse removal procedure for installation noting the following.

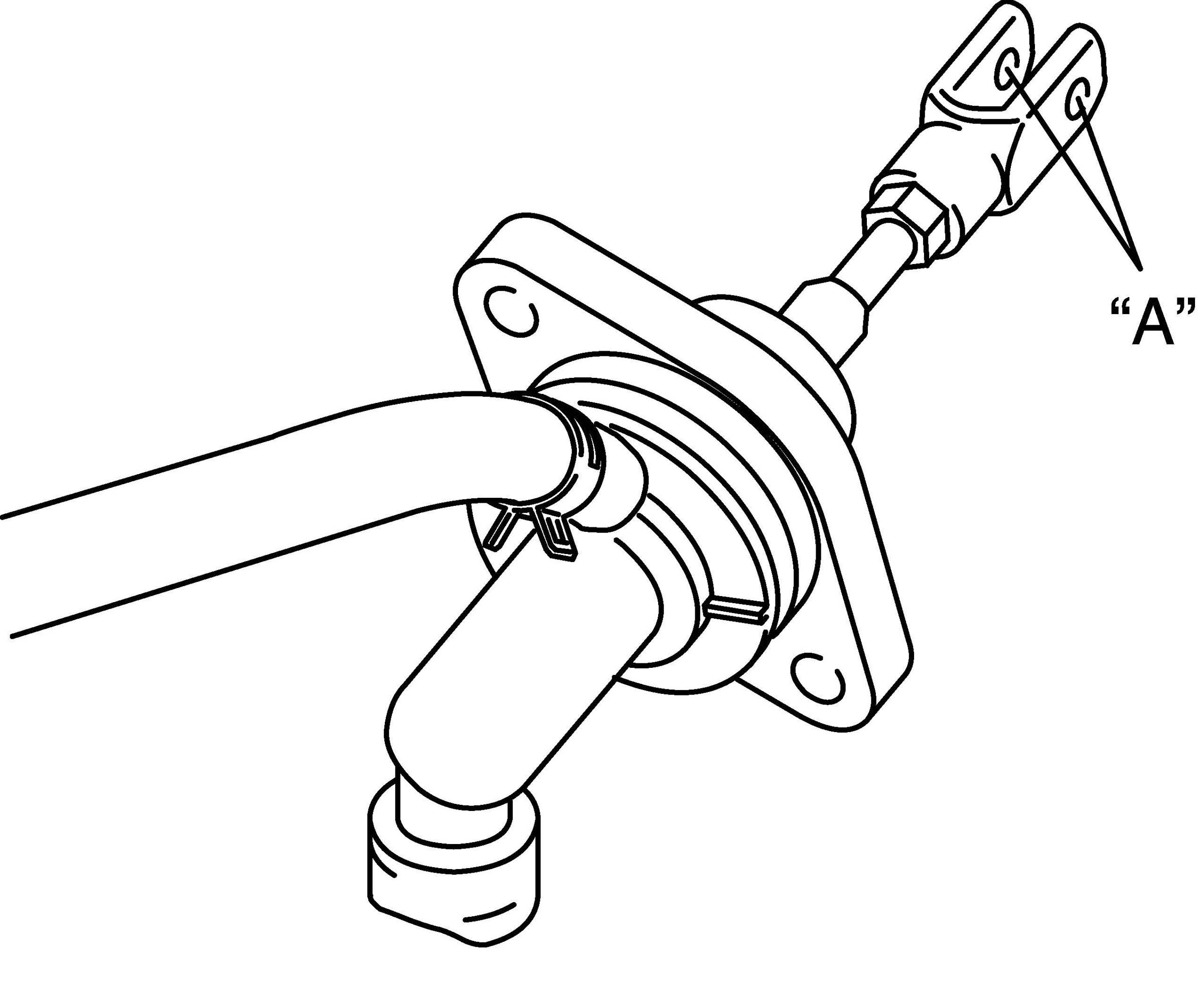

^ Apply grease to push rod tip.
"A": Grease 99000-25100SUZUKI Silicone Grease
^ Tighten clutch master cylinder nut to specified torque.
Tightening torque
Clutch master cylinder nut: 13 Nm (1.3 kgf-m, 9.5 ft. lbs.)
