Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Overhaul >> Oil Pump 2ND Coast Brake and 2ND Brake Components

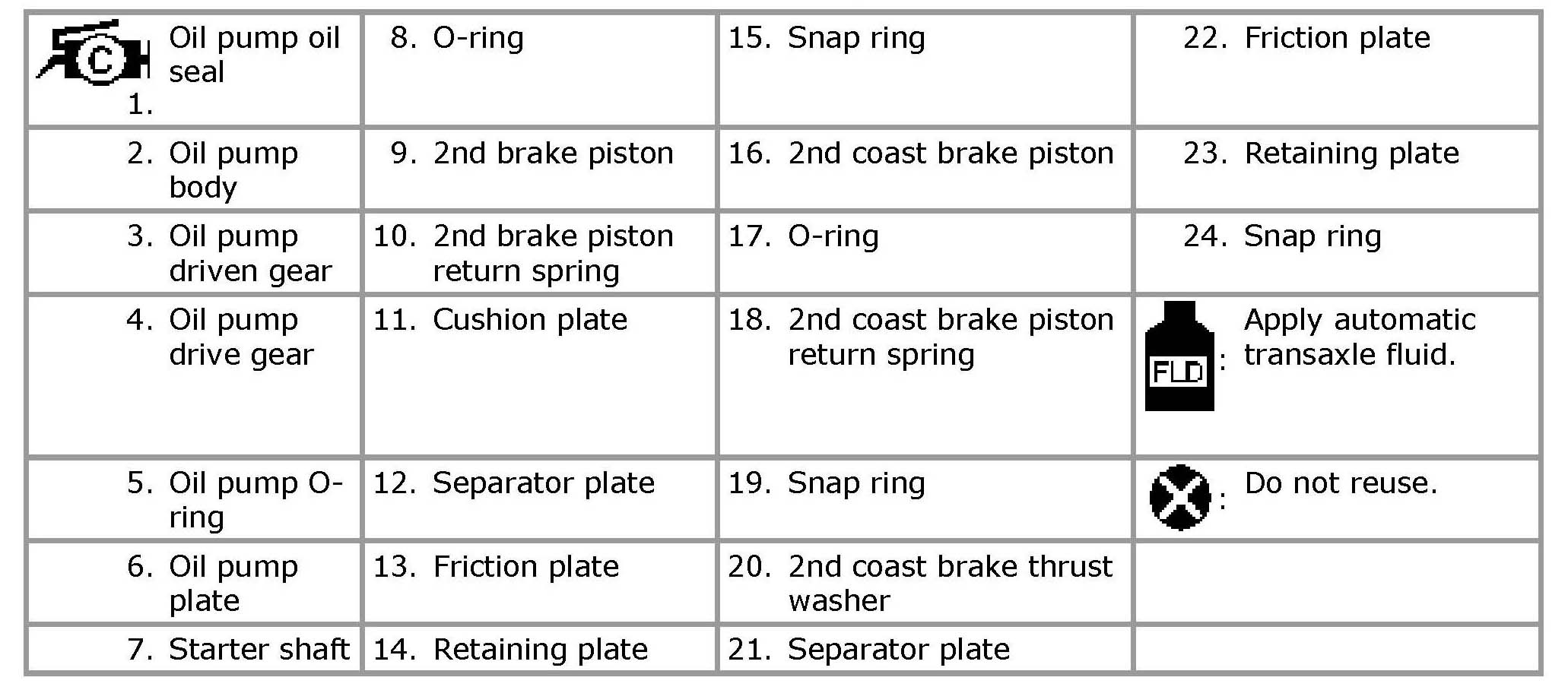

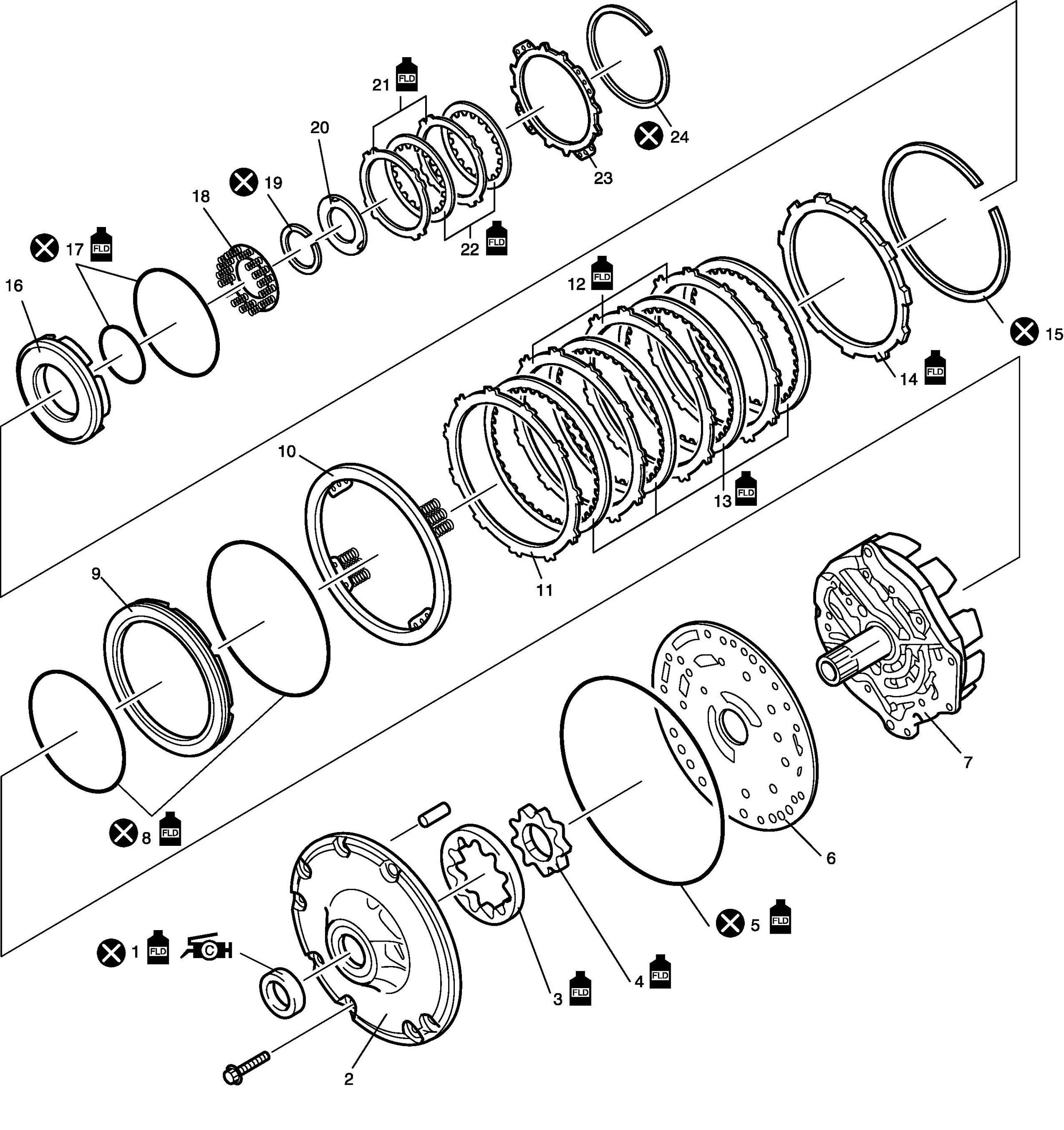

Oil Pump 2ND Coast Brake and 2ND Brake Components

Oil Pump 2nd Coast Brake and 2nd Brake Components
