Electrical - Brake Lamp Wiring Circuit Revision

SX4

Section Title: Body, Cab & Accessories
TSB No. TS 02 08077

Division: Automotive
Category: Technical

SUBJECT:
SERVICE MANUAL UPDATE: BRAKE LIGHT SYSTEM CIRCUIT WIRING DIAGRAM UPDATE

MODEL(S):
SX4 (RW420)

YEAR(S):
2007

CONDITION:
The high mounted stop light has a production change as of March 2007

CAUSE:
Design change.

CORRECTION:

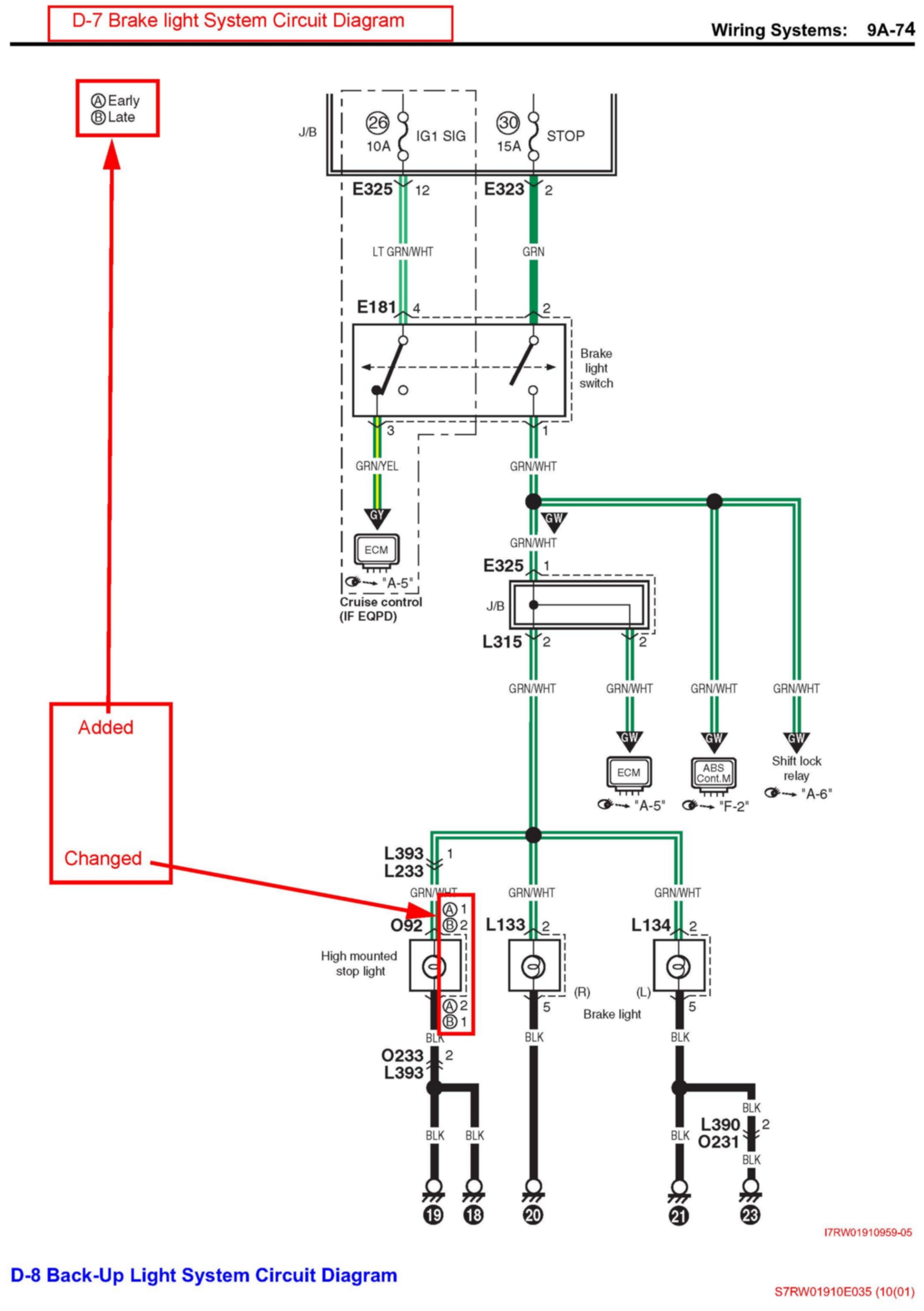

The service manual page contains additional information for the high mounted stop light circuit. Please replace page listed below in your 2007 MY SX4 service manuals.

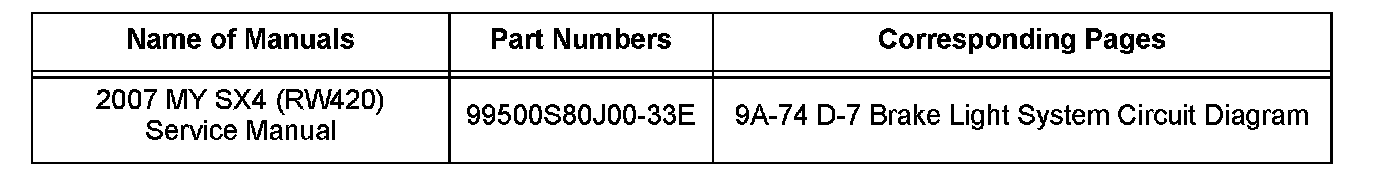

AFFECTED SERVICE MANUALS

NOTE:
These updates will appear in future printings of the service manual. If the reprint date on the inside back cover of the manual is later than the issue date of this bulletin, the manual will have been updated.
