Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Component Tests and General Diagnostics >> OCM Power Supply and Ground Circuit Check

OCM Power Supply and Ground Circuit Check

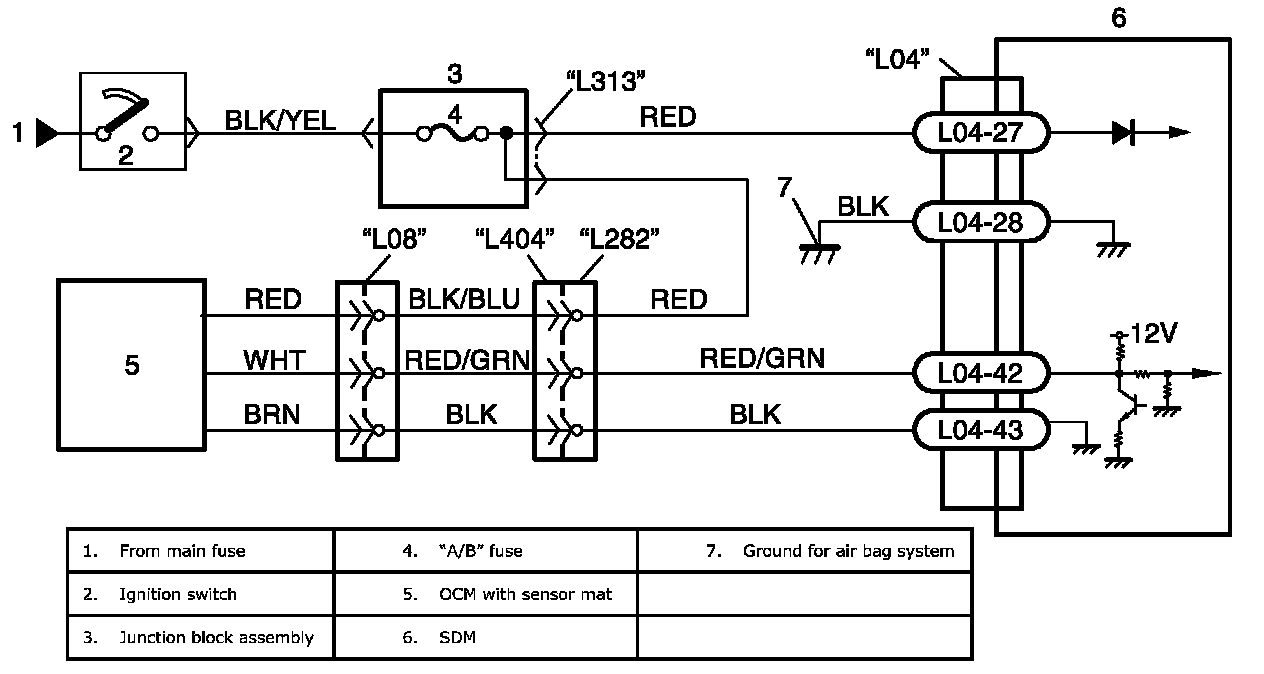

Wiring Diagram:

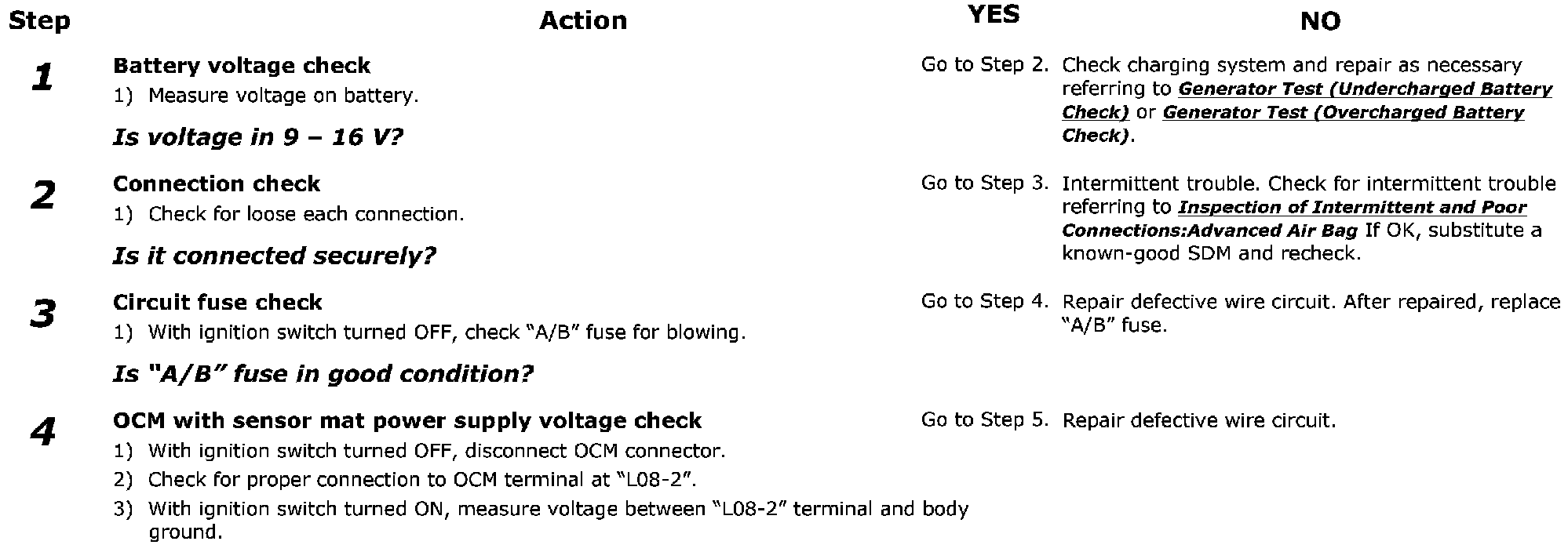

Step 1-4(Continued):

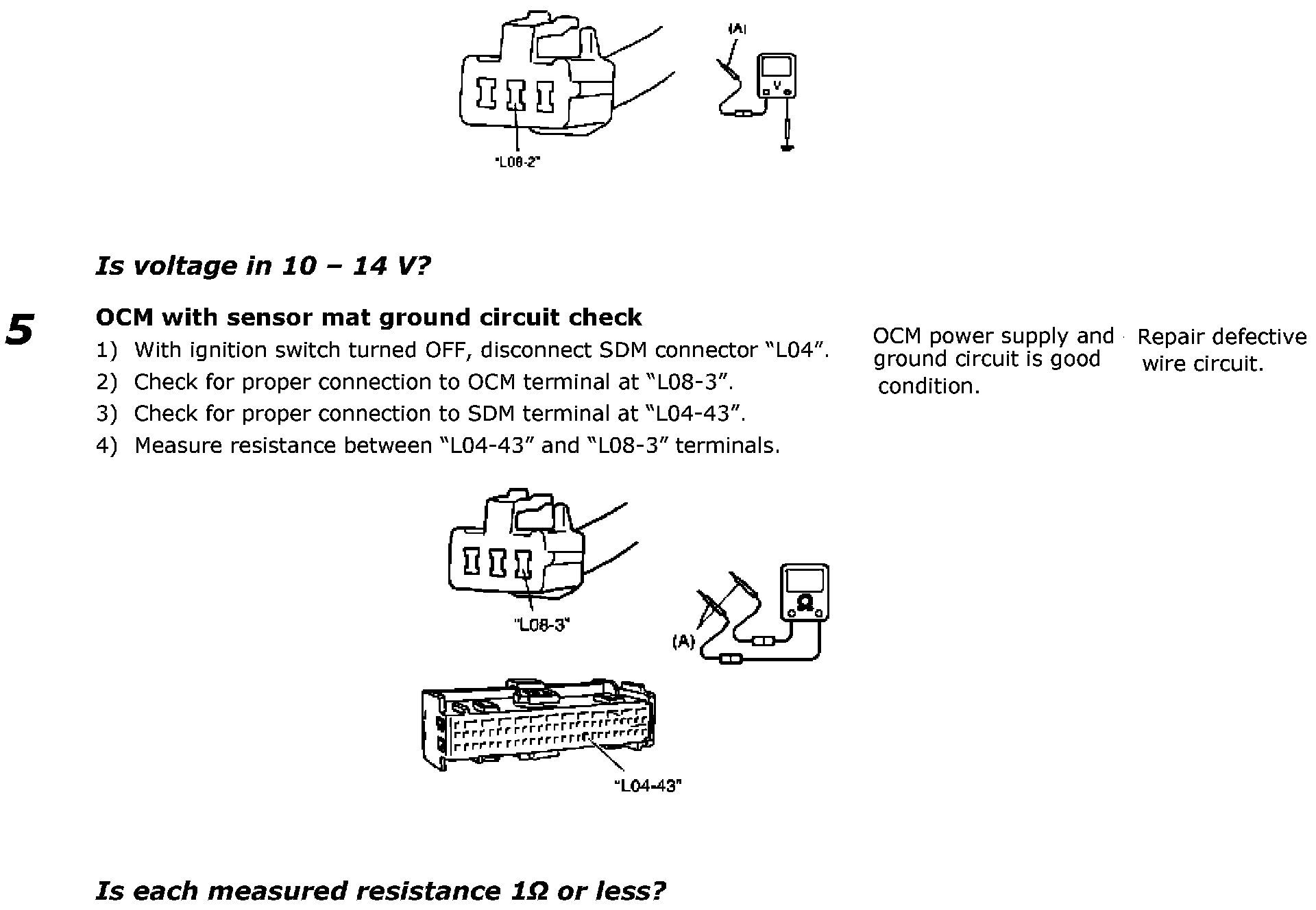

Step 4(Continued)-5:
