Air Bag System Wiring Circuit Diagram
Air Bag System Wiring Circuit Diagram

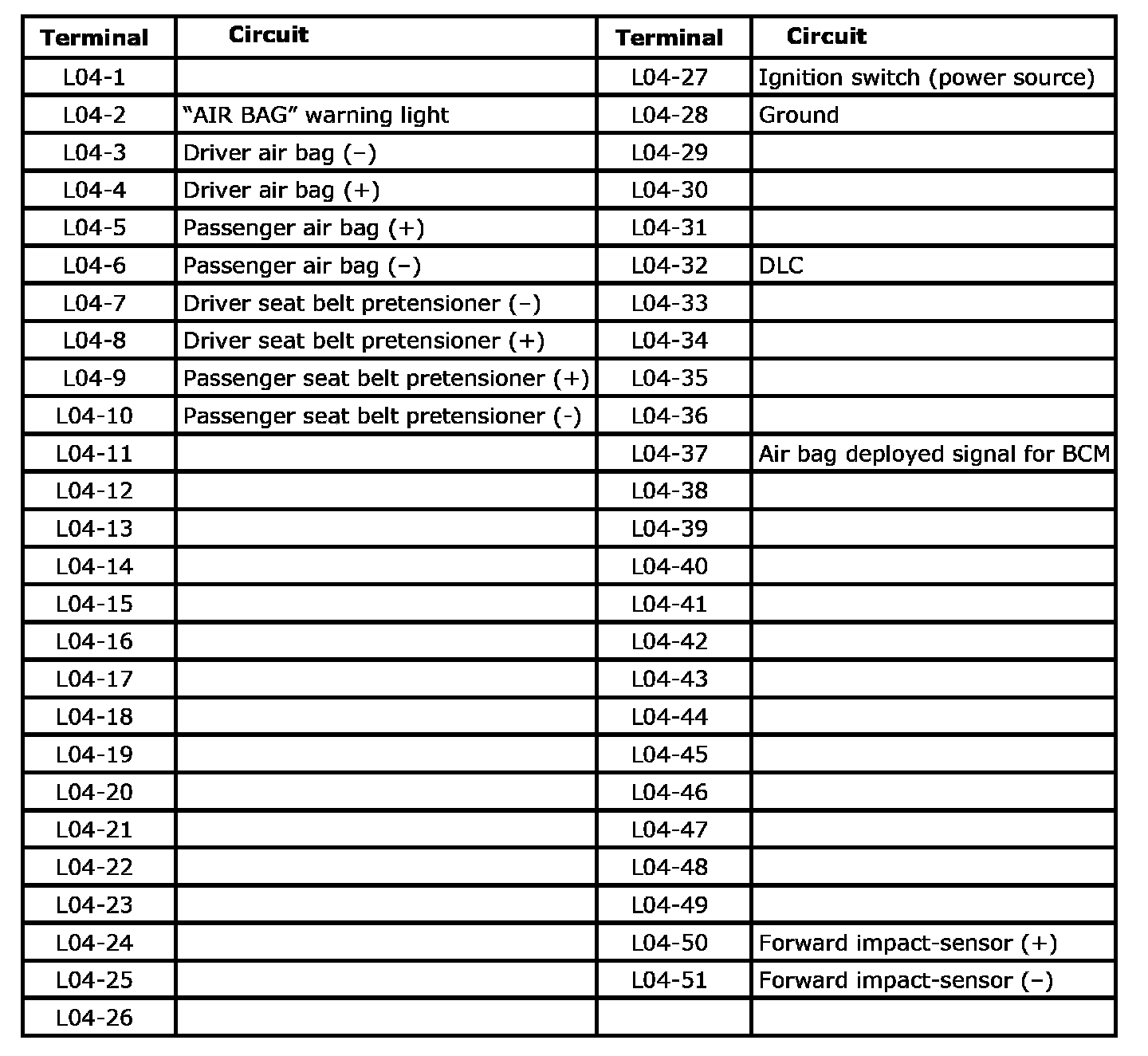

L04-1 - L04-51:

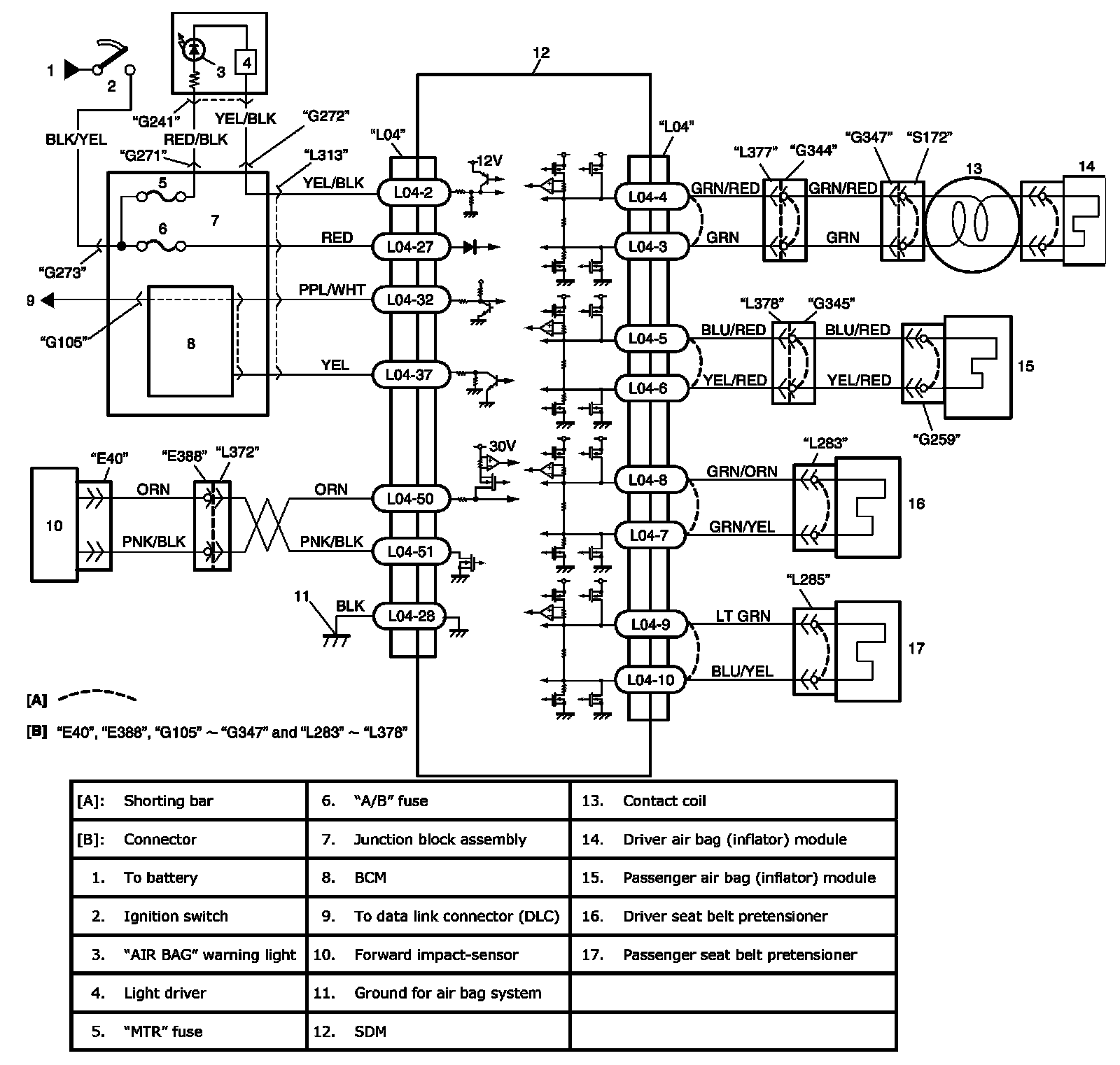

An Bag System Wiring Circuit Diagram:

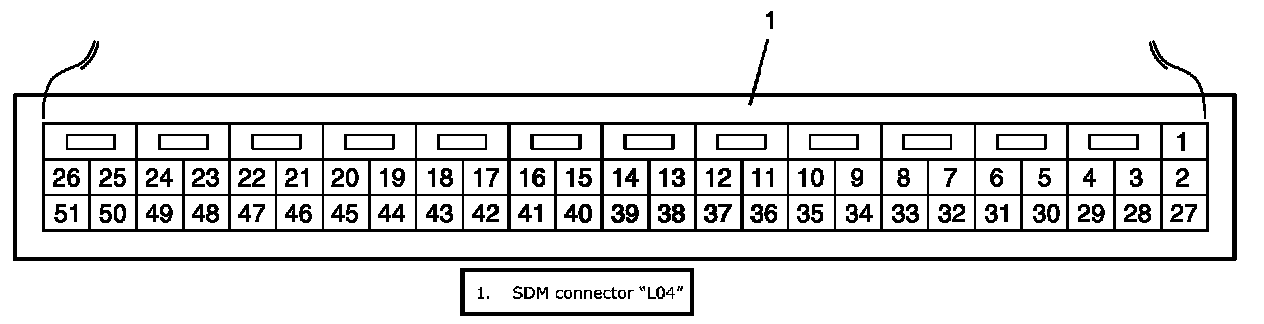

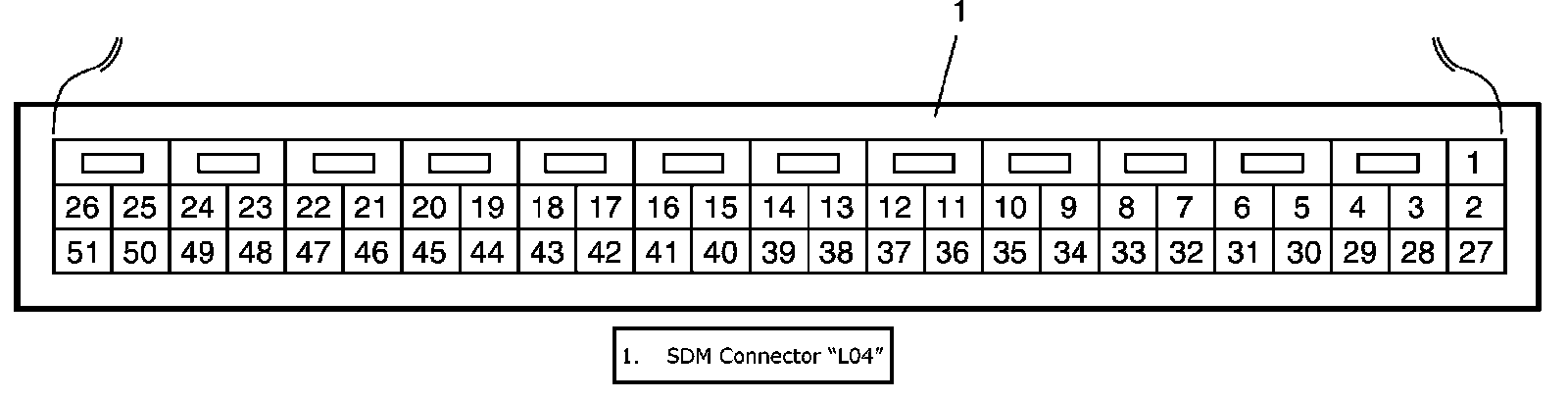

Terminal Arrangement Of SDM (Viewed From Harness Side):

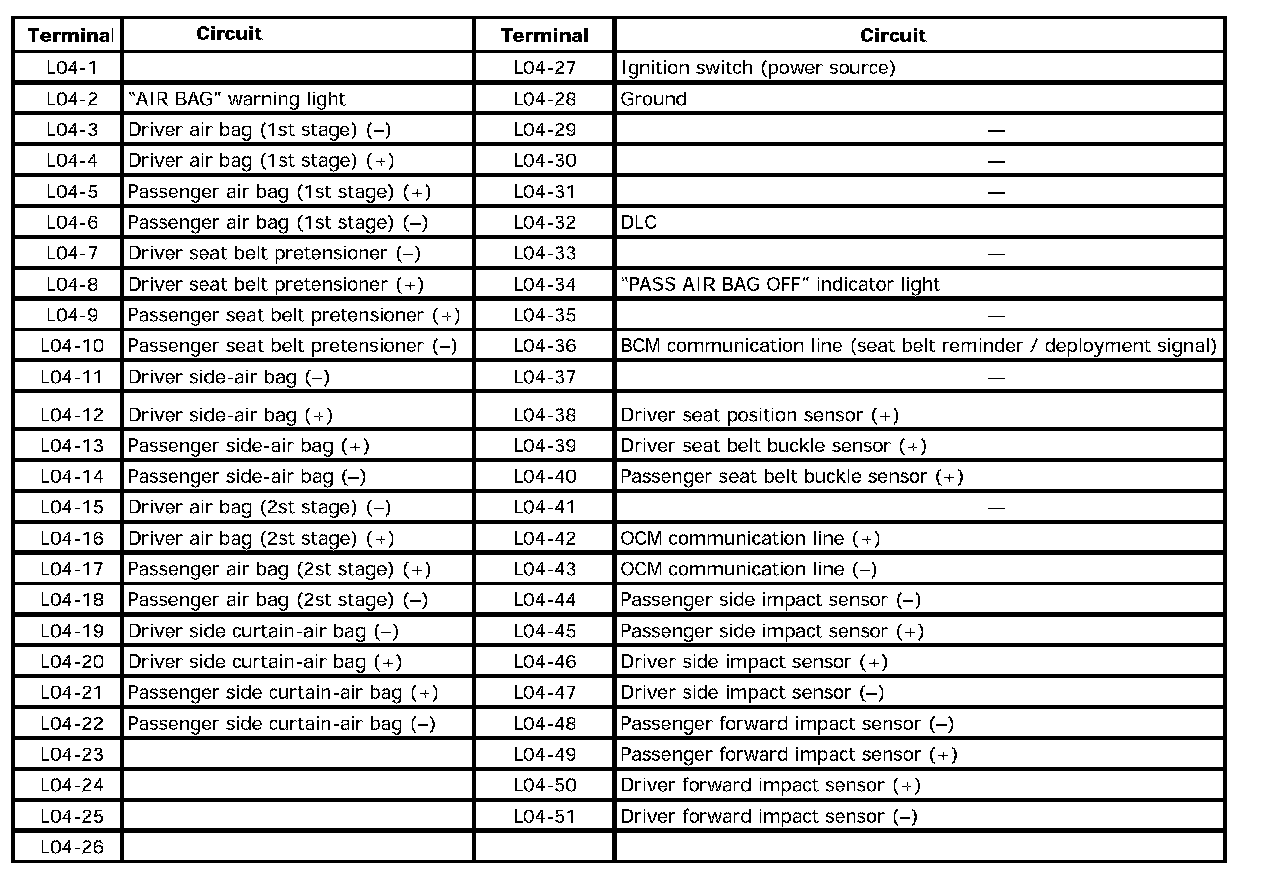

l04-1 - L04-51:

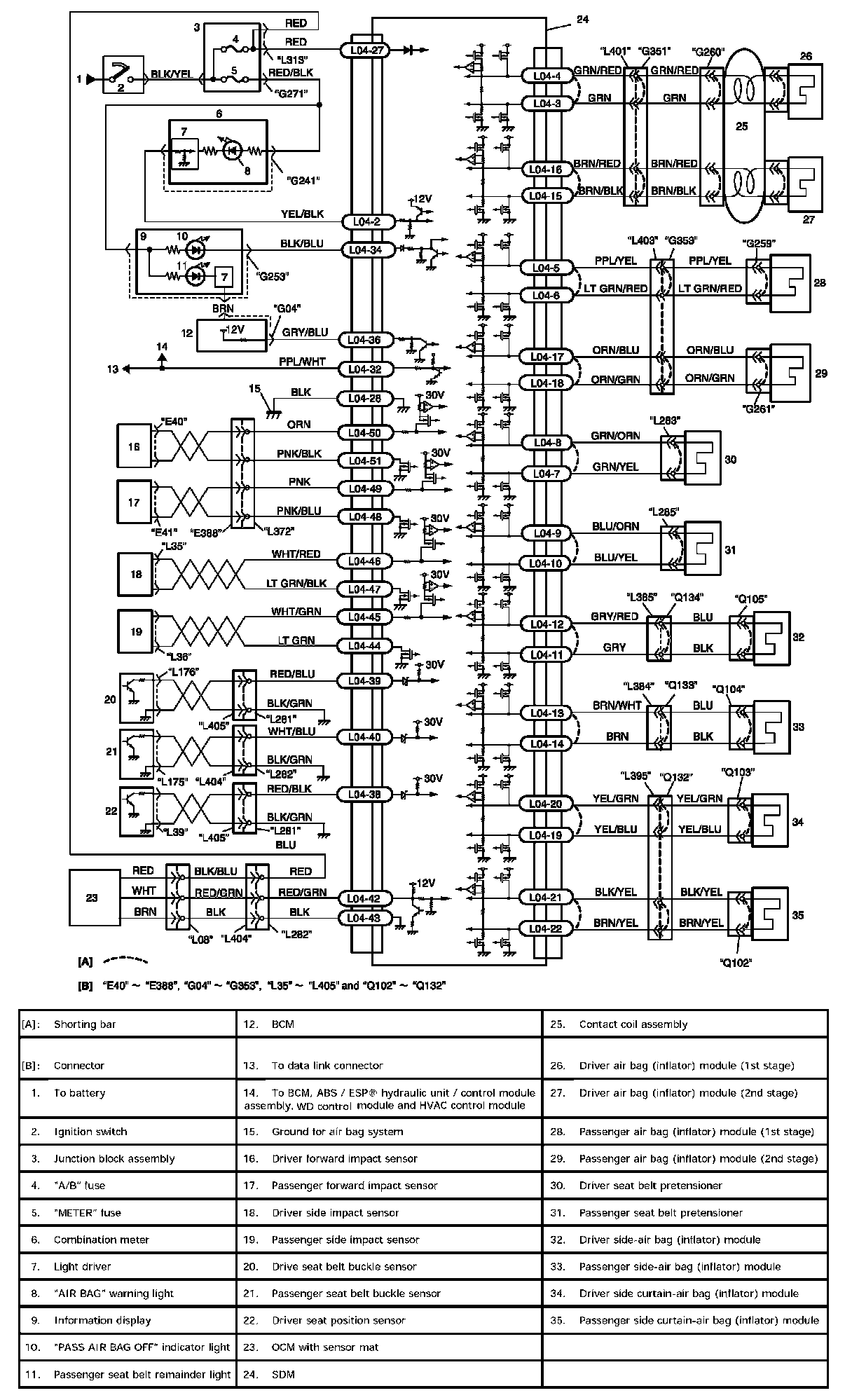

Wiring Diagram:
