Shift Indicator - A/T: Testing and Inspection

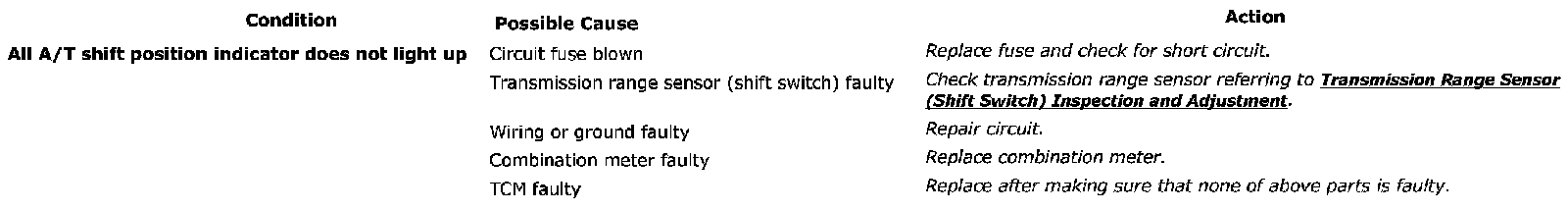

A/T Shift Position Indicator Symptom Diagnosis (A/T Model):
