Comprehensive Component Monitor (Engine Output) (EVAP Leak Check Model)

OBD System Description - Comprehensive Component Monitor (Engine Output) (EVAP Leak Check Model)

DTC Description / Detecting / Confirmation Procedure

P0443
Refer to DTC P0443: EVAP Emission System Purge Control Valve Circuit. P0443

P0449
Refer to DTC P0449: Evaporative Emission System Vent Valve Circuit. P0449

P0480
Refer to DTC P0480: Fan 1 Control Circuit. P0480

P0481
Refer to DTC P0481: Fan 2 Control Circuit (EVAP Leak Check Model). P0481

P0482
Refer to DTC P0482: Fan 3 Control Circuit. P0482

P0506, P0507
Refer to DTC P0506 / P0507: Idle Air Control System RPM Lower than Expected / Higher than Expected. P0506

P2102
Refer to DTC P2102: Throttle Actuator Control Motor Circuit Low. P2102

P2103
Refer to DTC P2103: Throttle Actuator Control Motor Circuit High. P2103

P2111
Refer to DTC P2111: Throttle Actuator Control System - Stuck Open. P2111

P2400

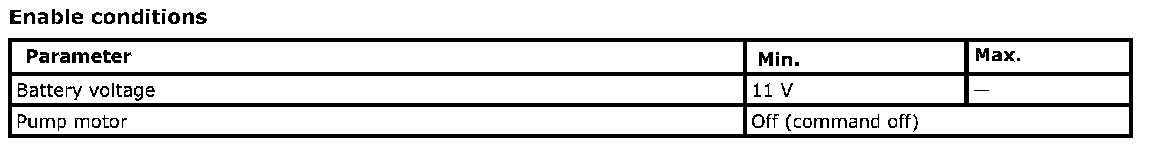

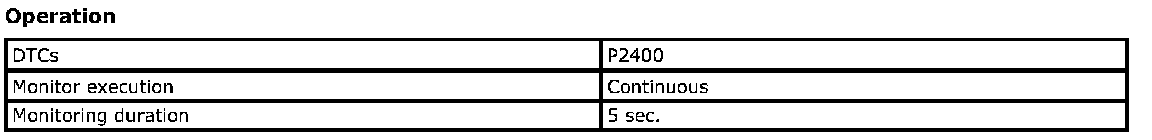

Refer to DTC P2400: Evaporative Emission System Leak Detection Pump Control Circuit Open. P2400

Canister Purge Valve Circuit Monitor

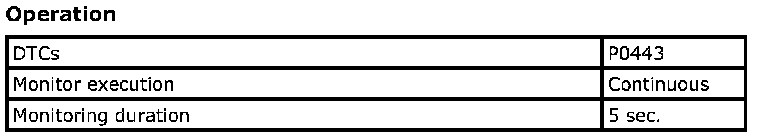

Operation:

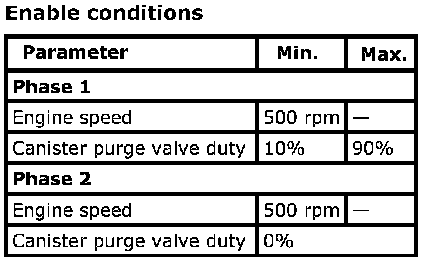

Enable Conditions:

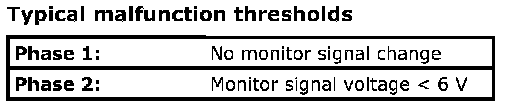

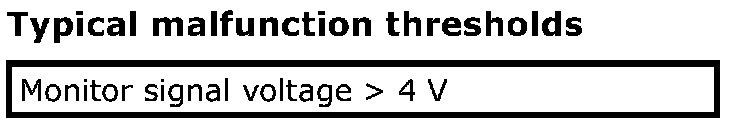

Typical Malfunction Thresholds:

Canister Vent Valve Circuit Monitor

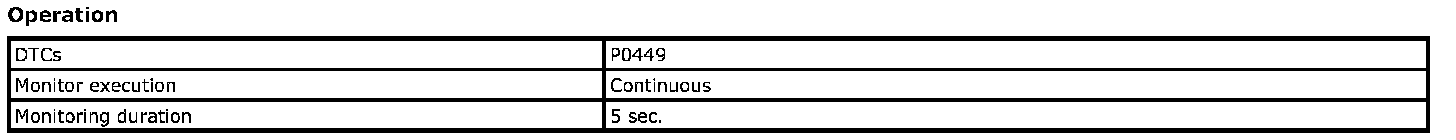

Operation:

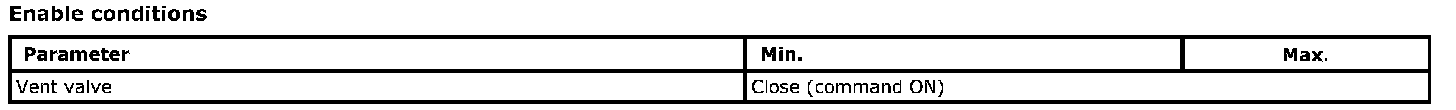

Enable Conditions:

Typical Malfunction Thresholds:

Fan Relay Circuit Monitor

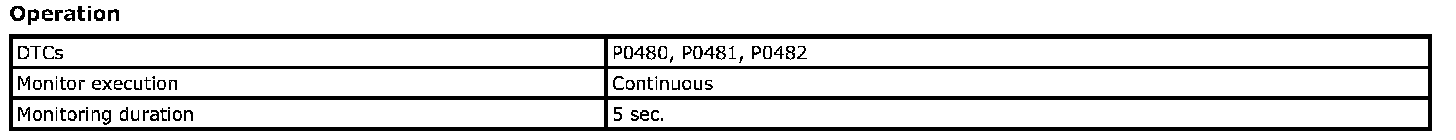

Operation:

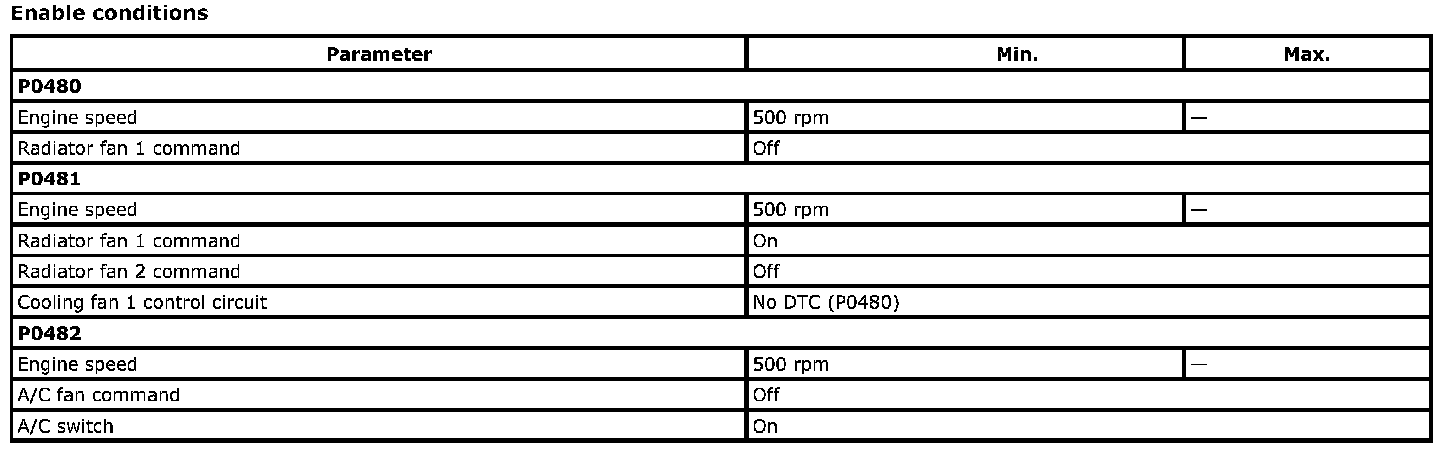

Enable Conditions:

Typical Malfunction Thresholds:

IAC System Monitor

Monitoring procedure
The Idle Air Control (IAC) is functionally checked throttle valve opening by monitoring the loop idle speed comparing with the desired idle rpm. If the idle rpm is higher than the desired idle rpm by 200 rpm or lower than the desired idle rpm by 100 rpm, an IAC malfunction is detected. (P0507, P0506)

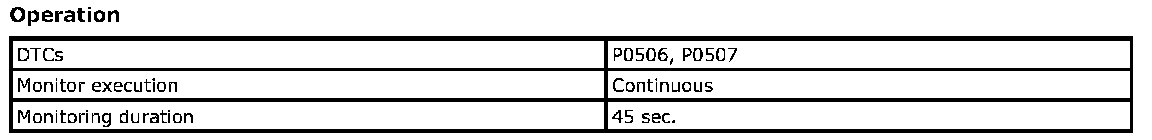

Operation:

Enable Conditions:

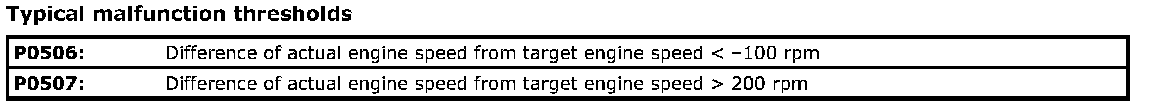

Typical Malfunction Thresholds:

Throttle Actuator Motor Circuit Monitor

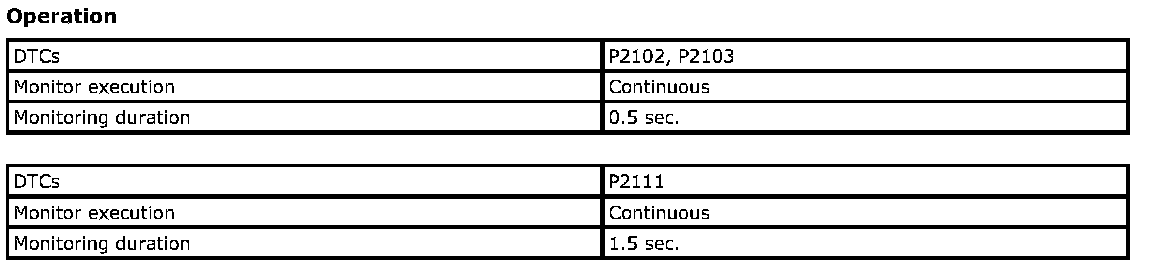

Operation:

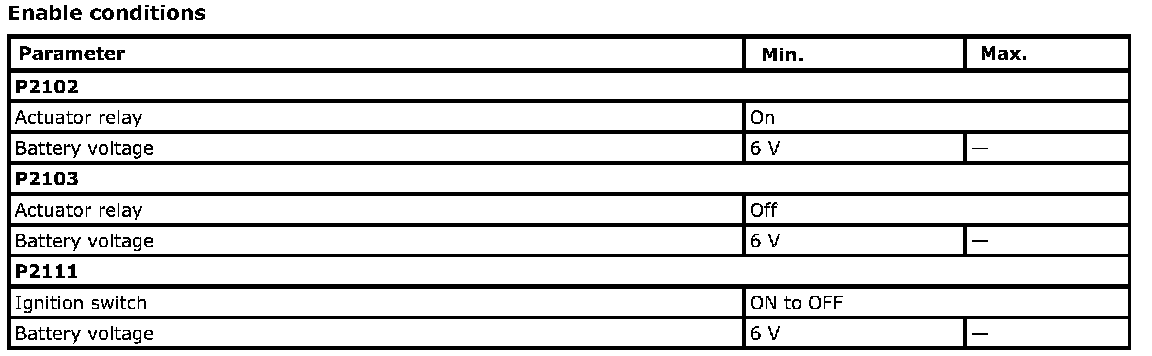

Enable Conditions:

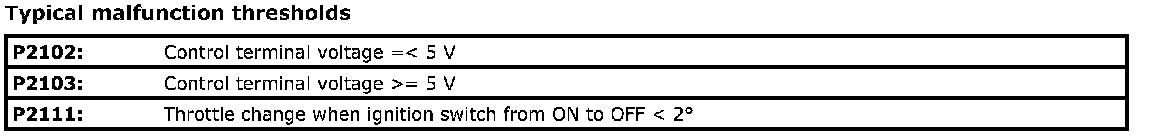

Typical Malfunction Thresholds:

Throttle Actuator Relay Circuit Monitor

Operation:

Enable Conditions:

Typical Malfunction Thresholds:
