Electric Load Signal Circuit Check

Electric Load Signal Circuit Check

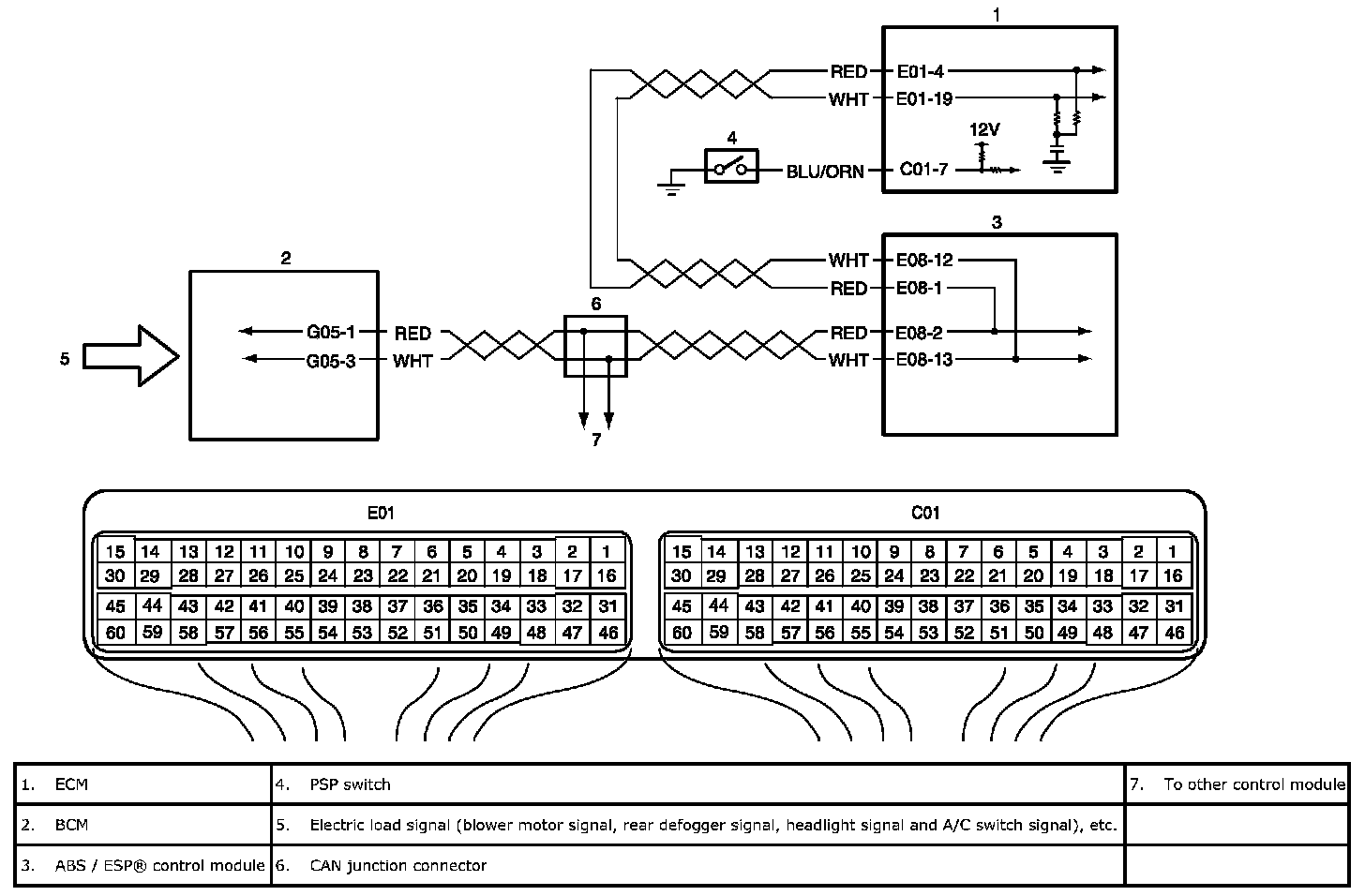

Wiring Diagram

Wiring Diagram:





Troubleshooting

NOTE:
^ Before performed troubleshooting, be sure to read the Precautions of ECM Circuit Inspection.
^ When measuring circuit voltage, resistance and/or pulse signal at ECM connector, connect the special tool to ECM and/or the ECM connectors referring to Inspection of ECM and Its Circuits.

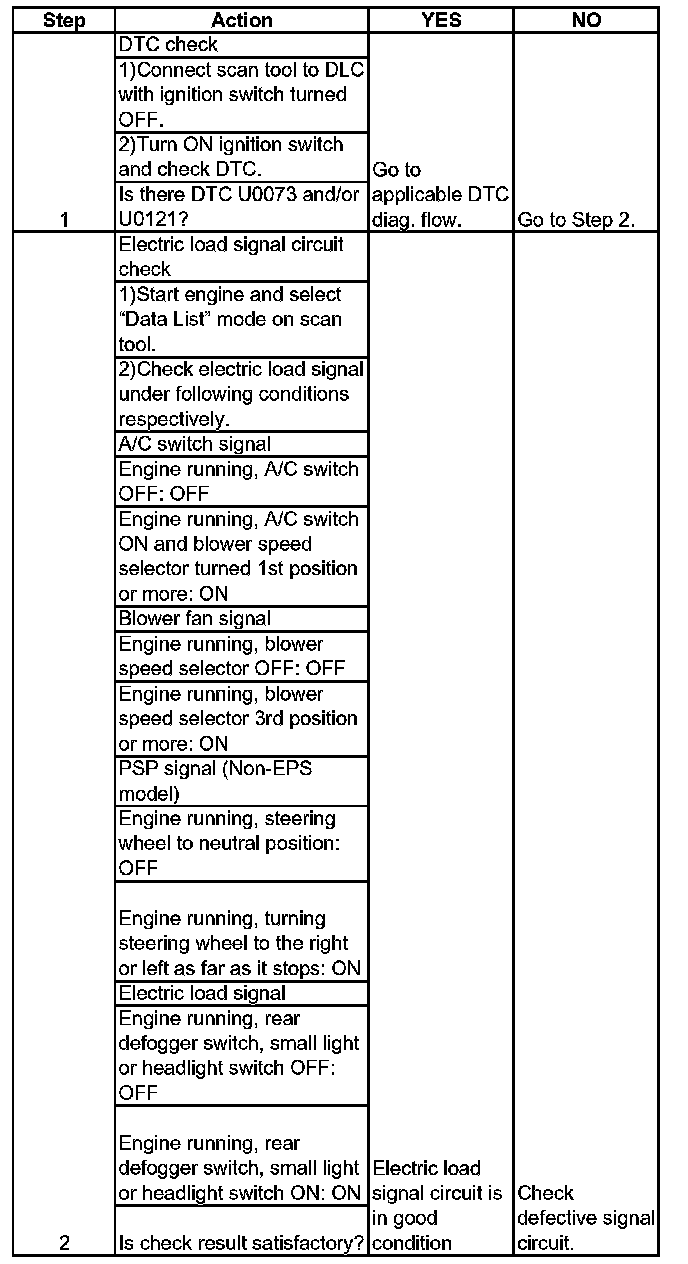

Step 1-2:
