Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> HVAC - Air Conditioning System >> A/C System Symptom Diagnosis

A/C System Symptom Diagnosis

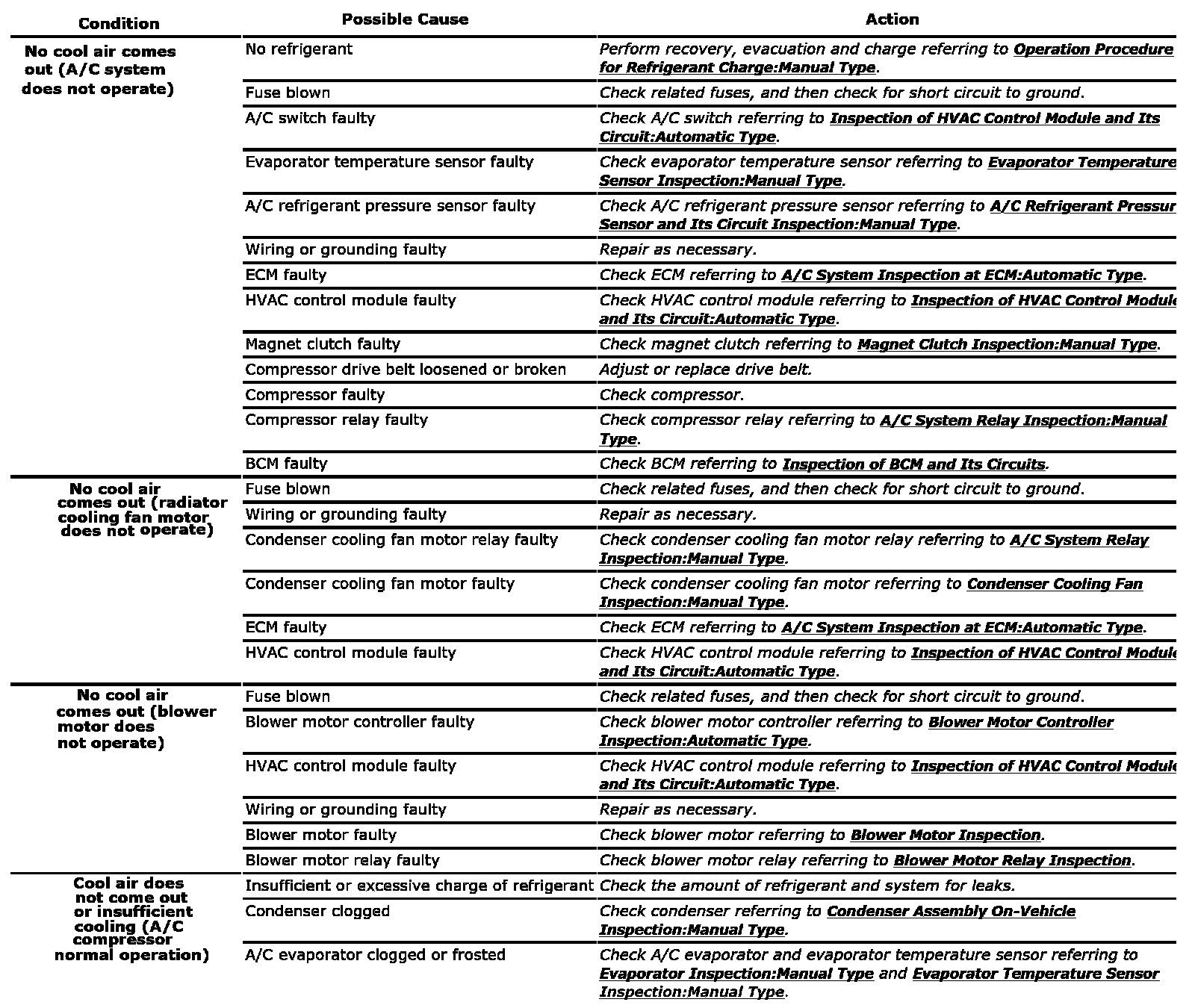

A/C System Symptom Diagnosis (Part 1):

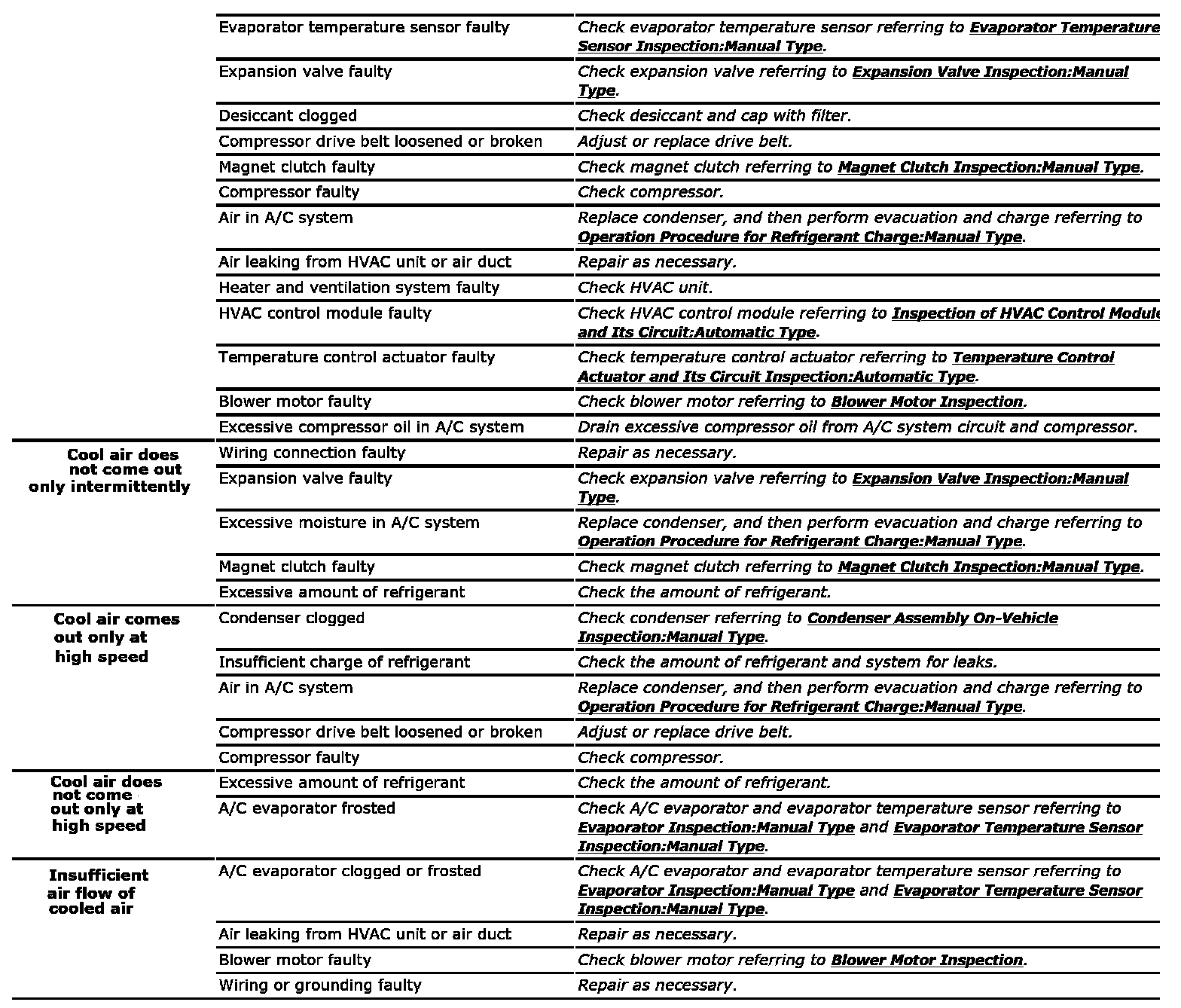

A/C System Symptom Diagnosis (Part 2):

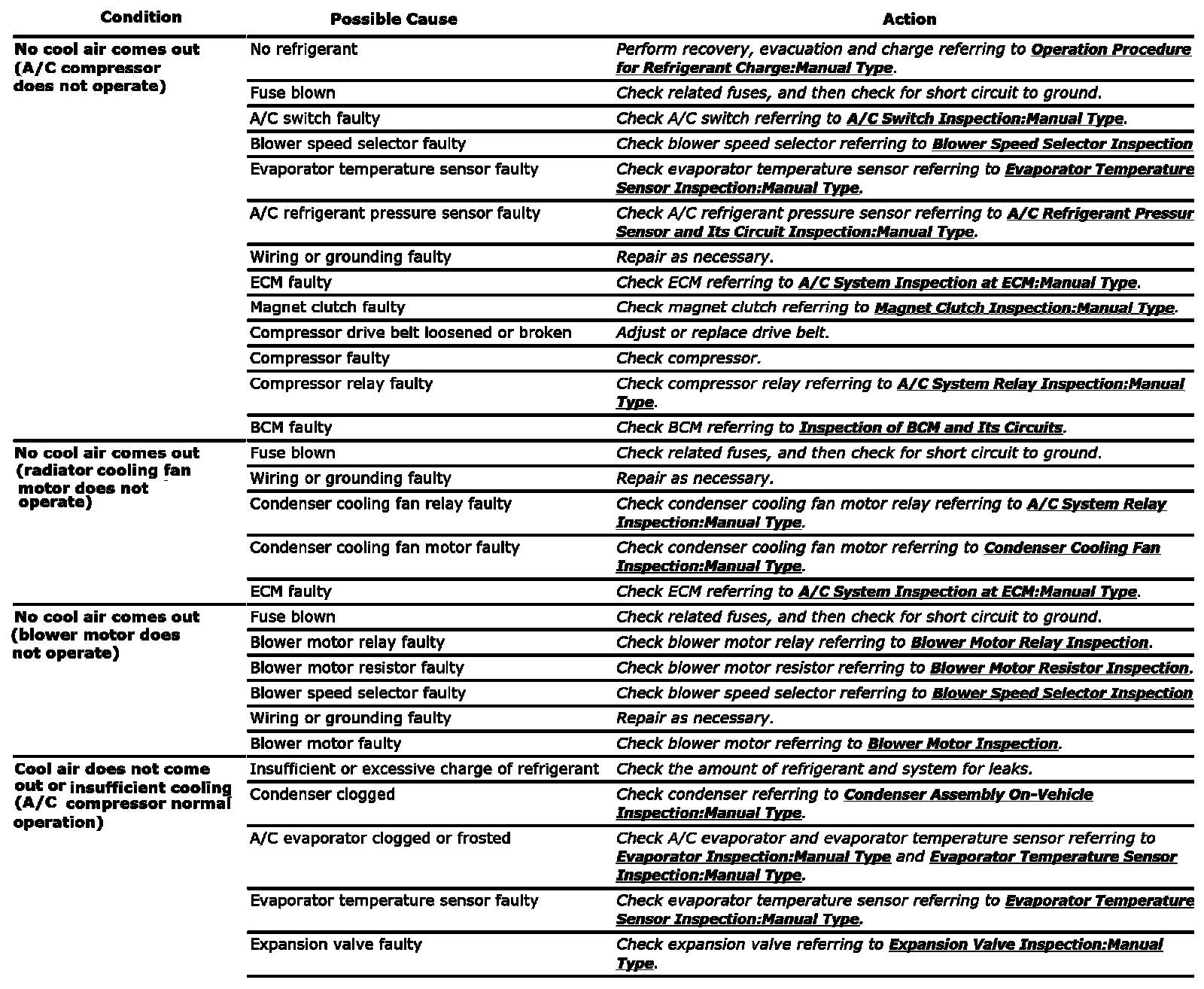

A/C System Symptom Diagnosis (Part 1):

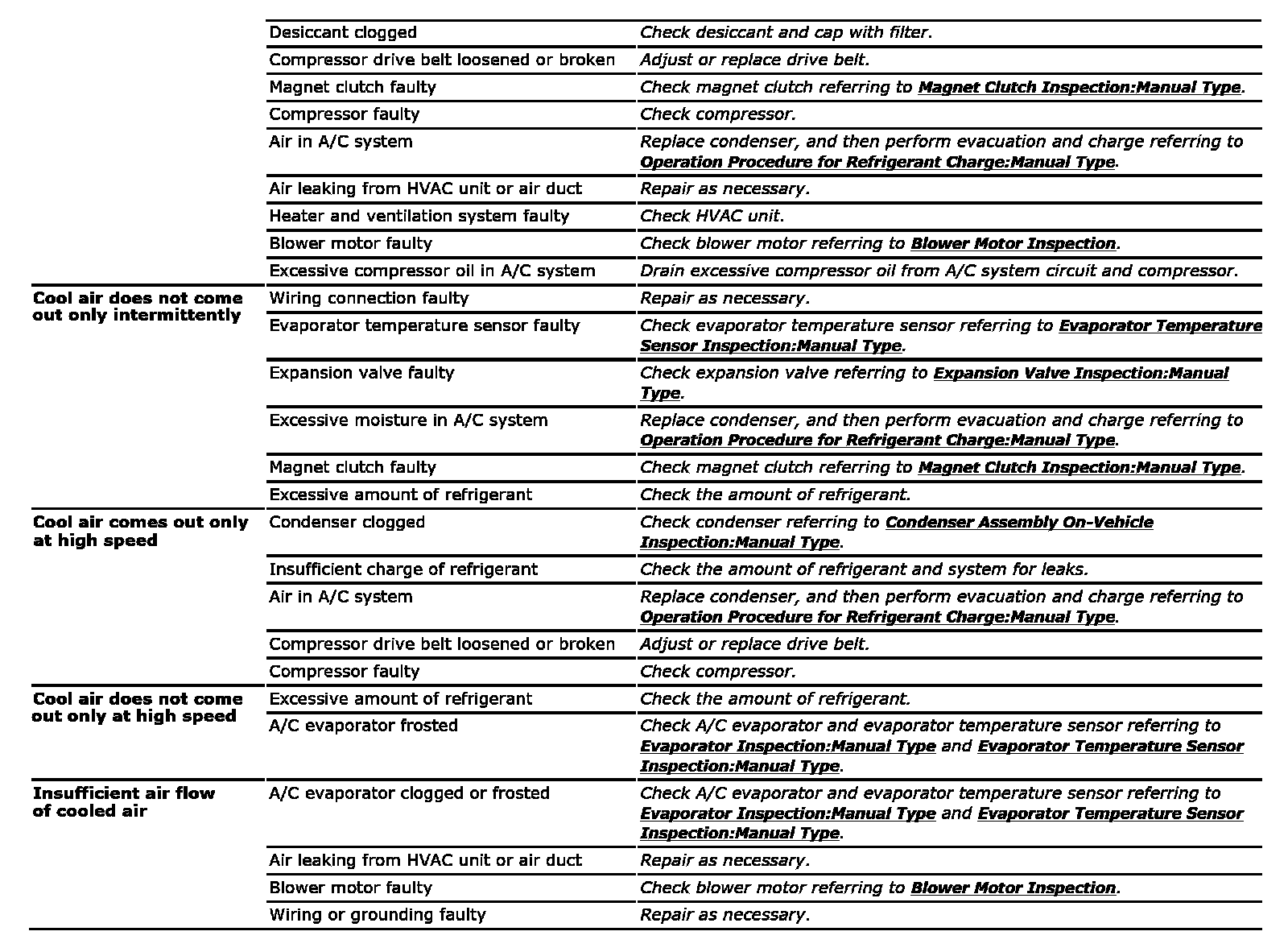

A/C System Symptom Diagnosis (Part 2):
