Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Scan Tool Testing and Procedures >> Scan Tool Data Definitions

Scan Tool Data Definitions

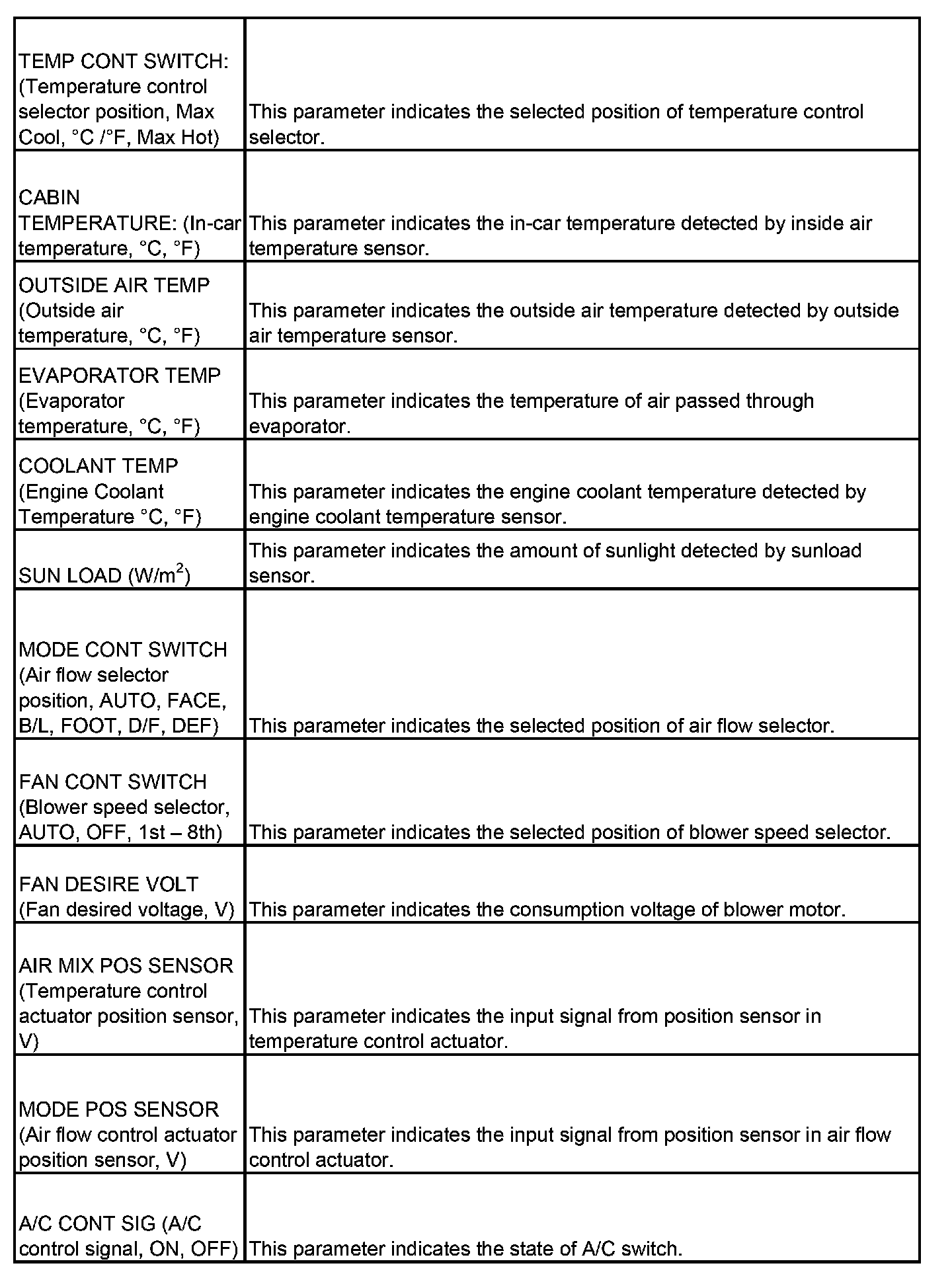

Scan Tool Data Definitions (Part 1):



Scan Tool Data Definitions (Part 2):
