HVAC - Heater and Ventilation

Air Intake Control Actuator Removal and Installation

Reference: HVAC Unit Components

Removal
1. Disconnect negative cable from battery.
2. Remove glove box from instrument panel.

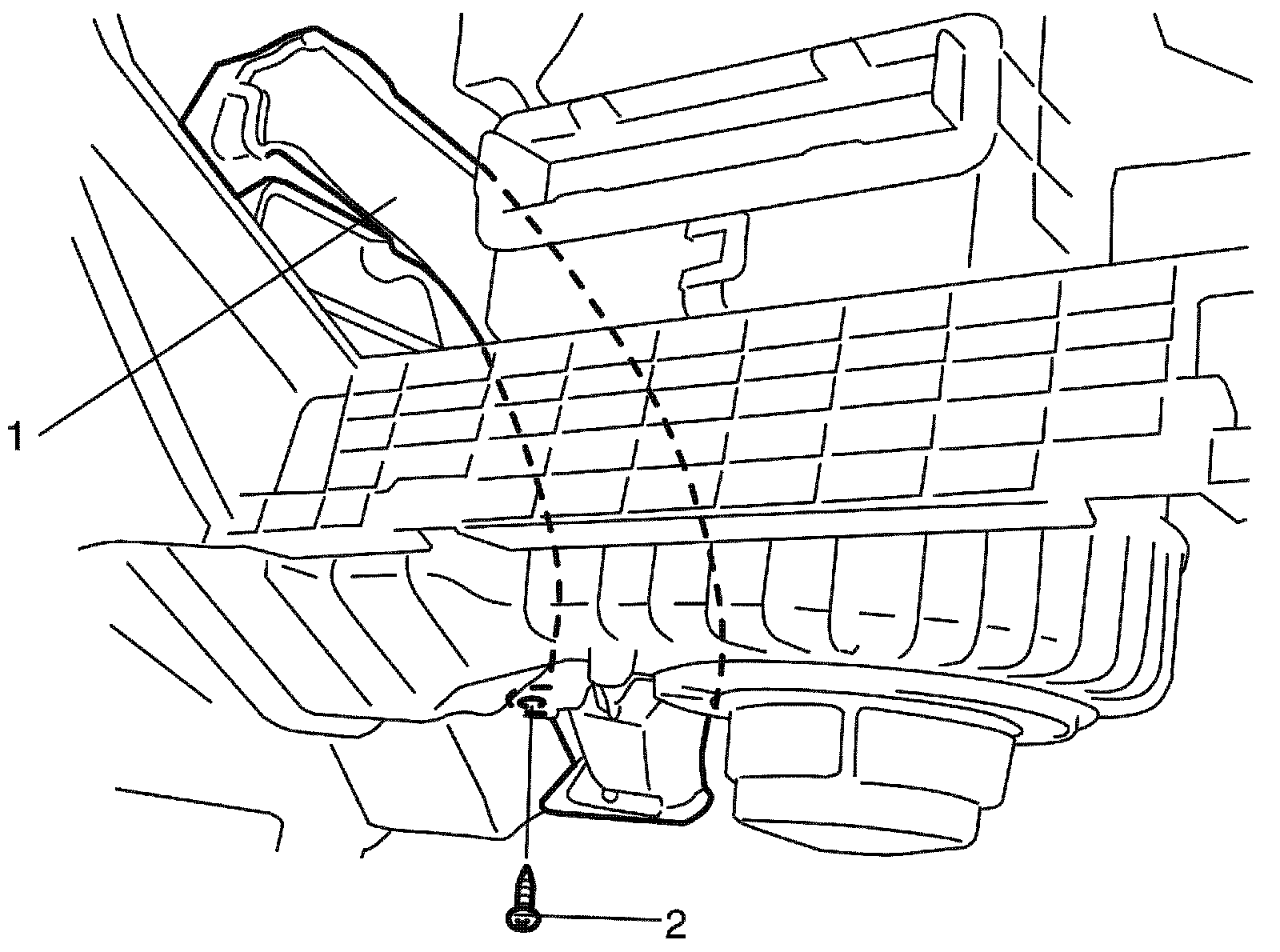

3. Remove passenger side foot duct (1) from HVAC unit by removing screw (2).

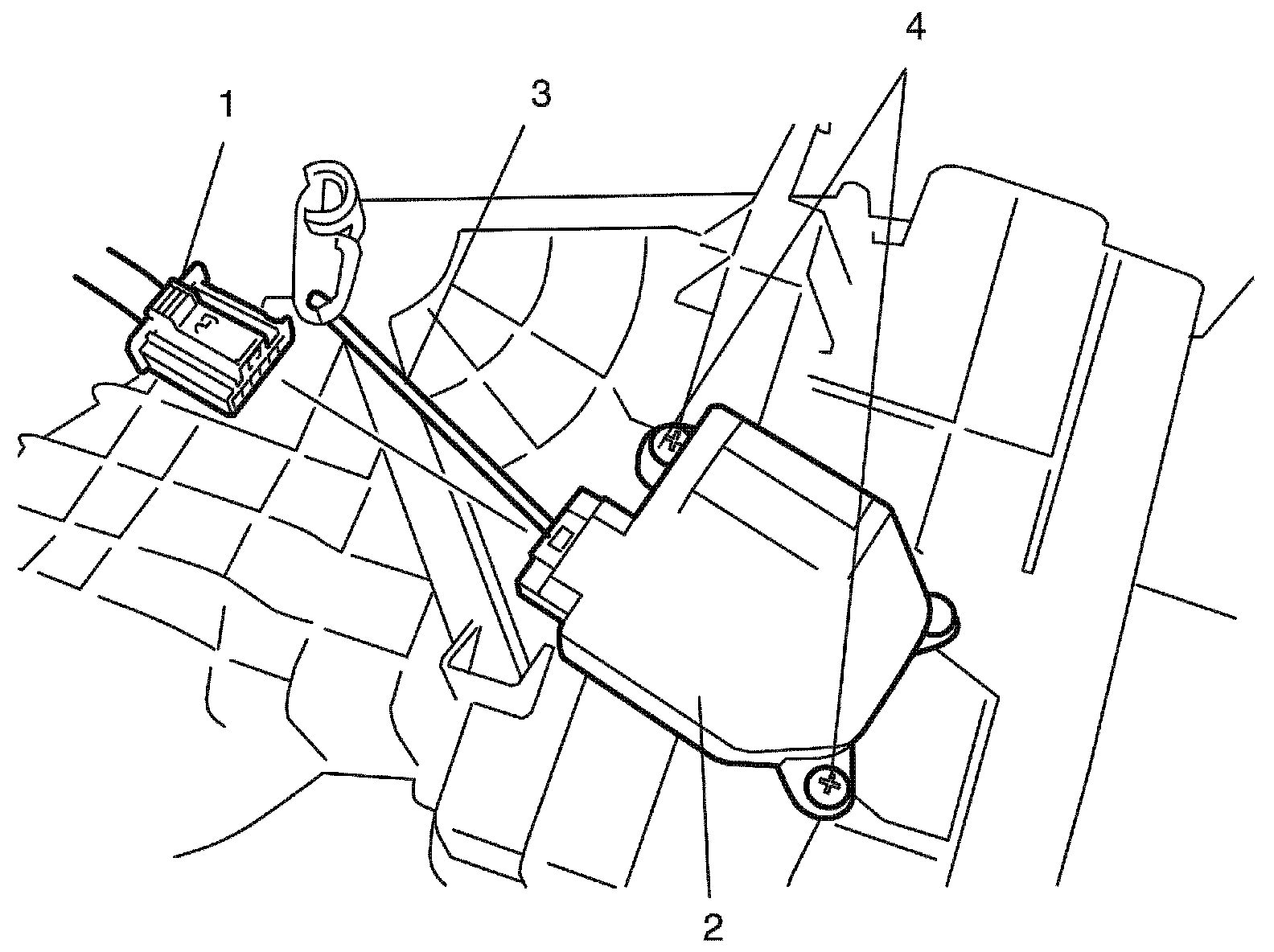

4. Disconnect connector (1) from air intake control actuator (2).




5. Detach linkage rod (3) and remove air intake control actuator (2) by removing screws (4).

Installation




Reference: Air Intake Control Actuator Inspection
Reverse removal procedure noting the following instruction.

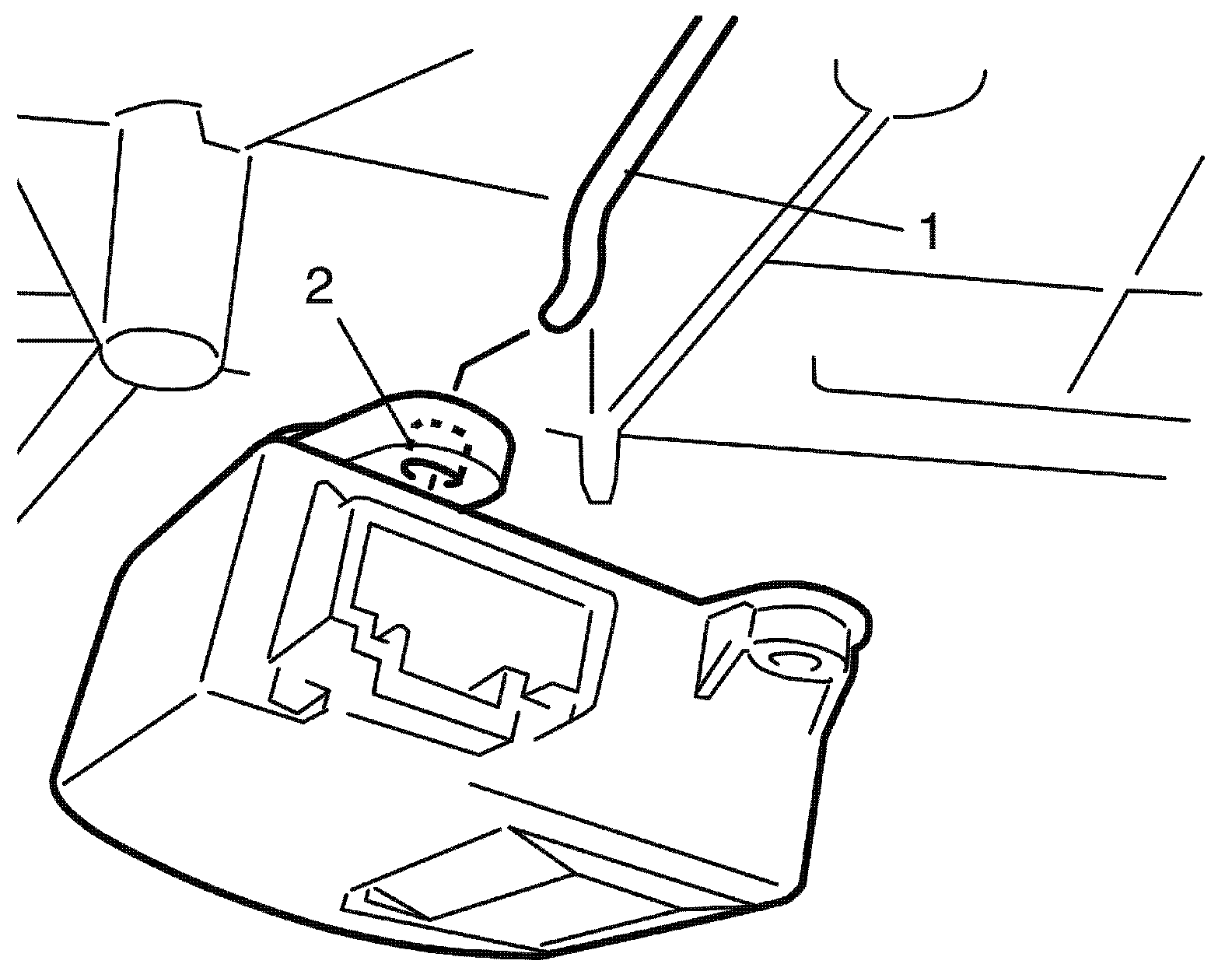

^ Be sure to insert the linkage rod (1) into the hole (2) of air intake control actuator.
