Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> S Connectors

S Connectors

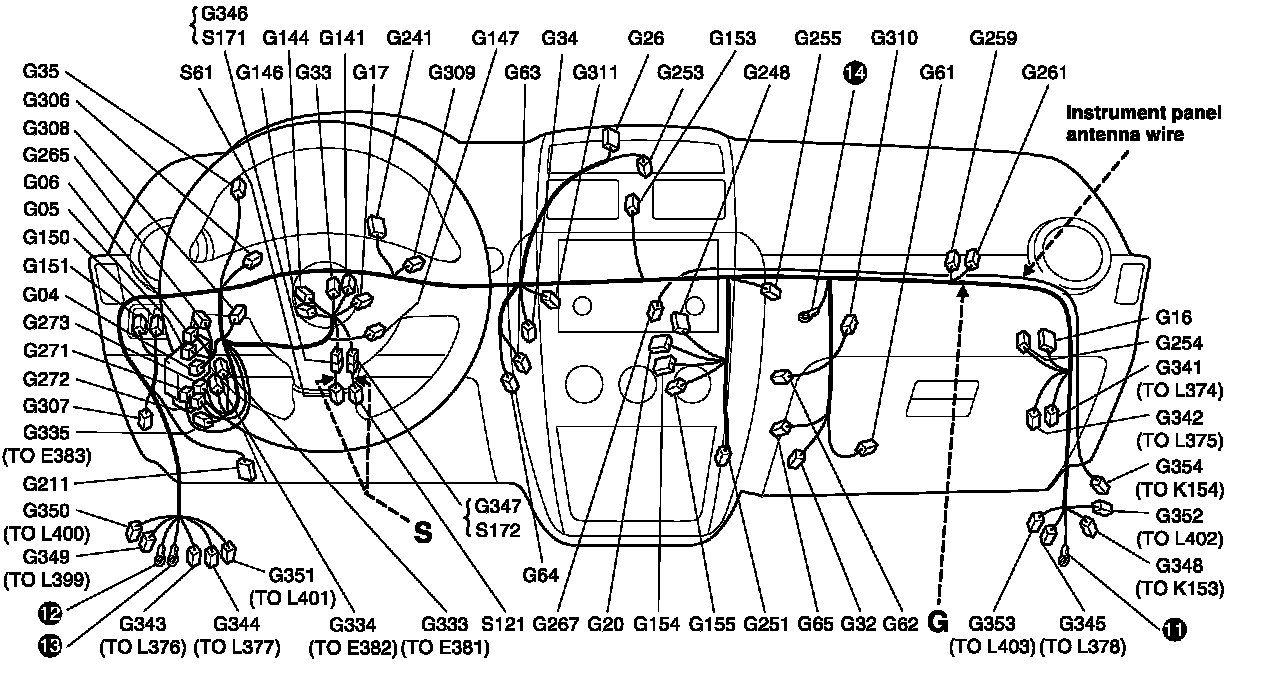

G: Instrument Panel Harness, Instrument Panel Antenna Wire / S: Connect Coil View:

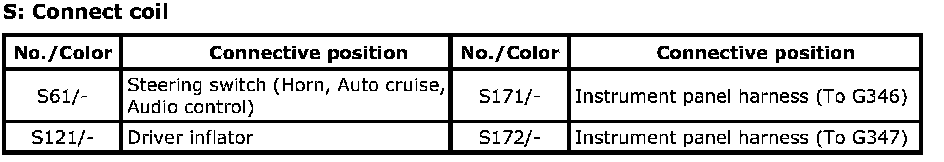

S: Connector Coil Index:
