Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connectors >> C Connectors

C Connectors

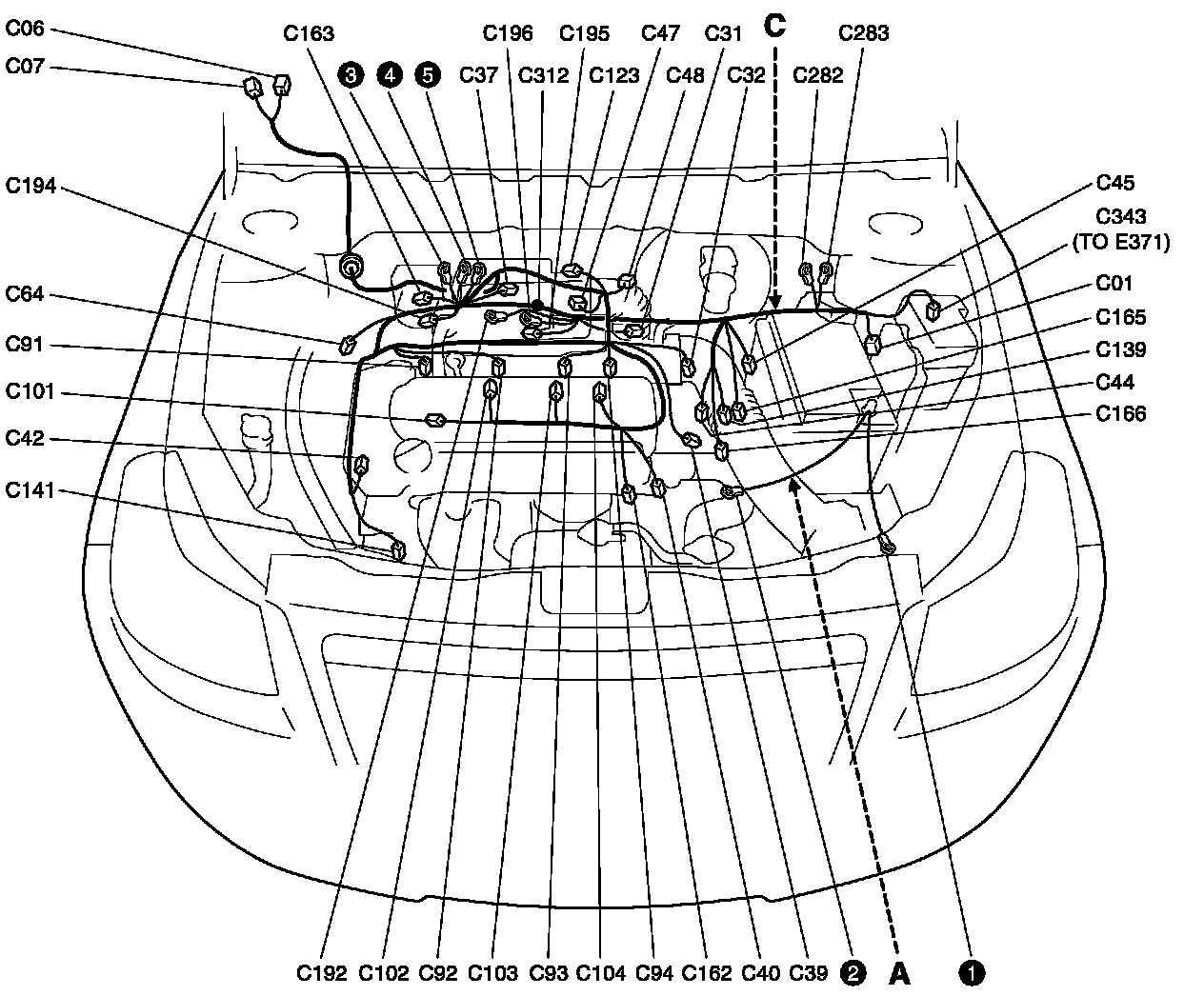

A: Battery Cable / C: Engine Harness View:

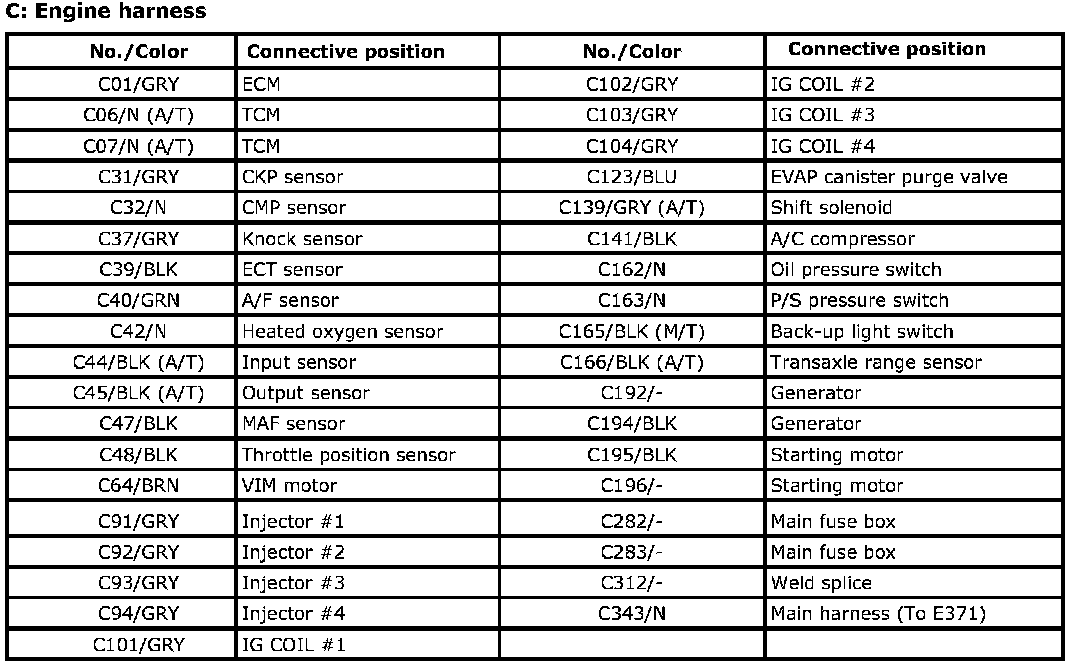

C: Engine Harness Index:
