Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> E Connectors

E Connectors

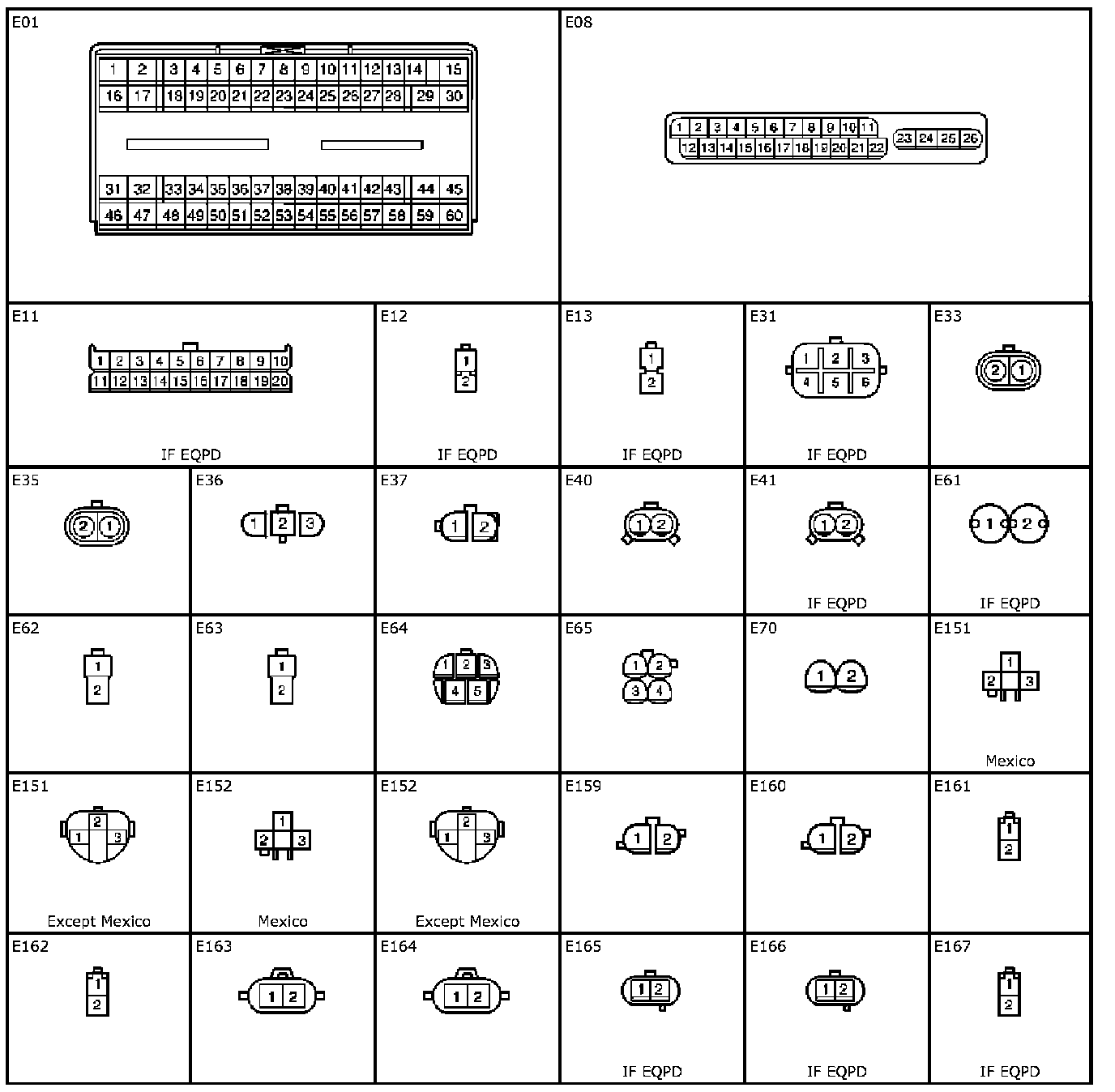

E01 - E167:

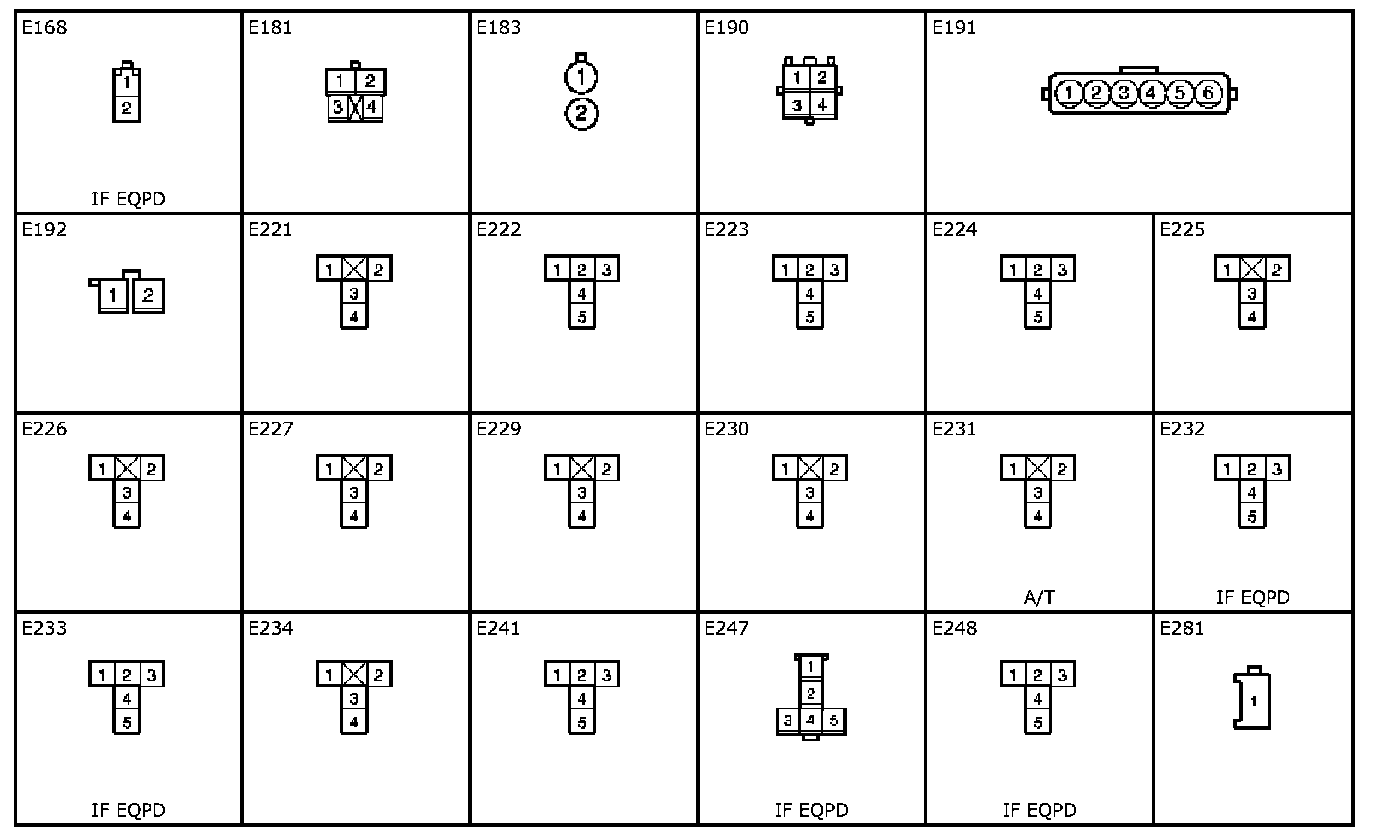

E168 - E281:

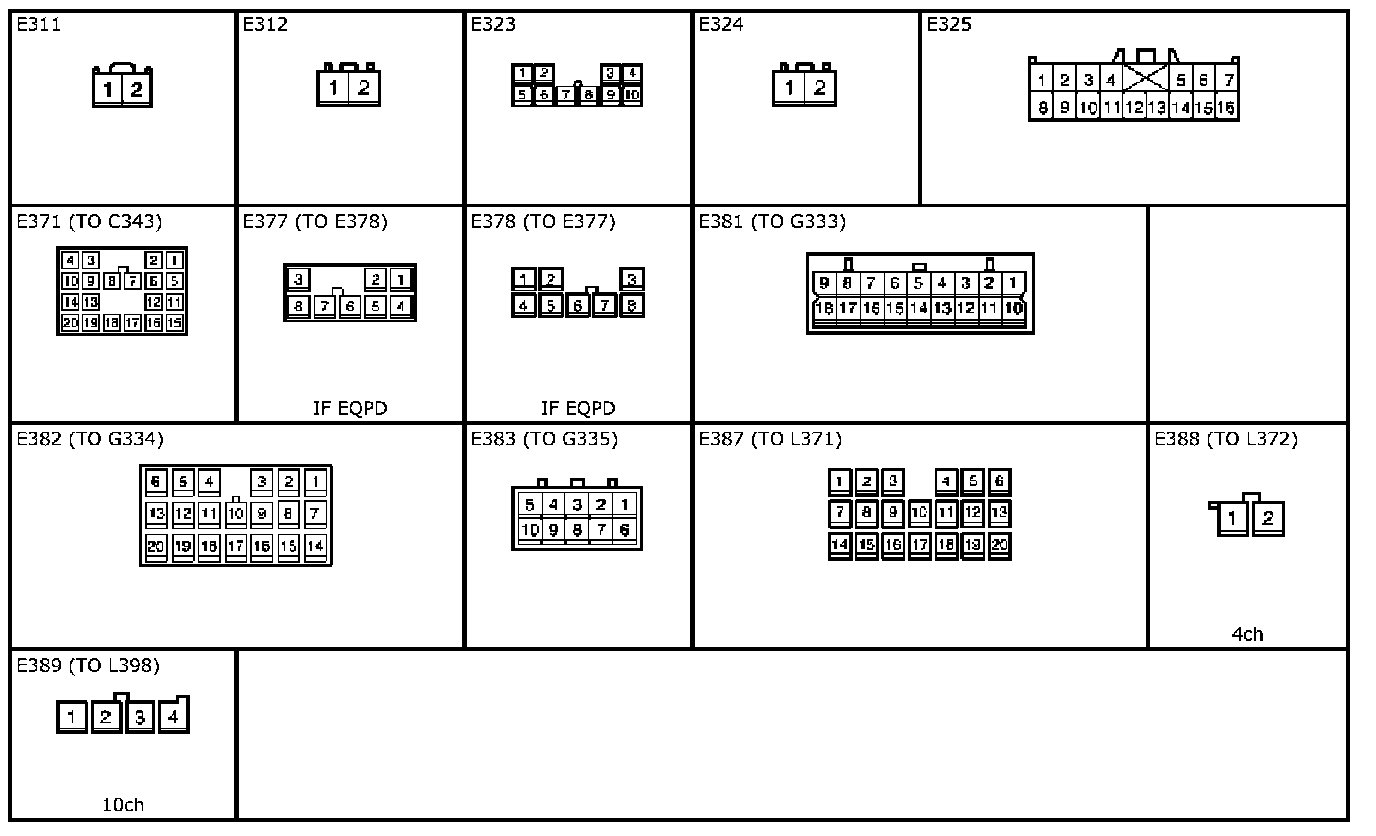

E311 - L398:
