Rear Brake Shoe Removal and Installation

Rear Brake Shoe Removal and Installation

NOTE: When replacing brake shoe, replace it on the right and left.

Removal
1. Remove brake drum.
2. Push and rotate 900 hold down pin (1) and remove hold down pin (1) and hold down spring (2).





3. Remove return springs, brake shoes and adjuster.
4. Disconnect parking brake shoe lever (1) from parking brake cable (2).





5. Remove push nut (1).
6. Remove parking brake shoe lever (2) from shoe rim (3).





Installation
Install parts in reverse order of removal, noting the following.

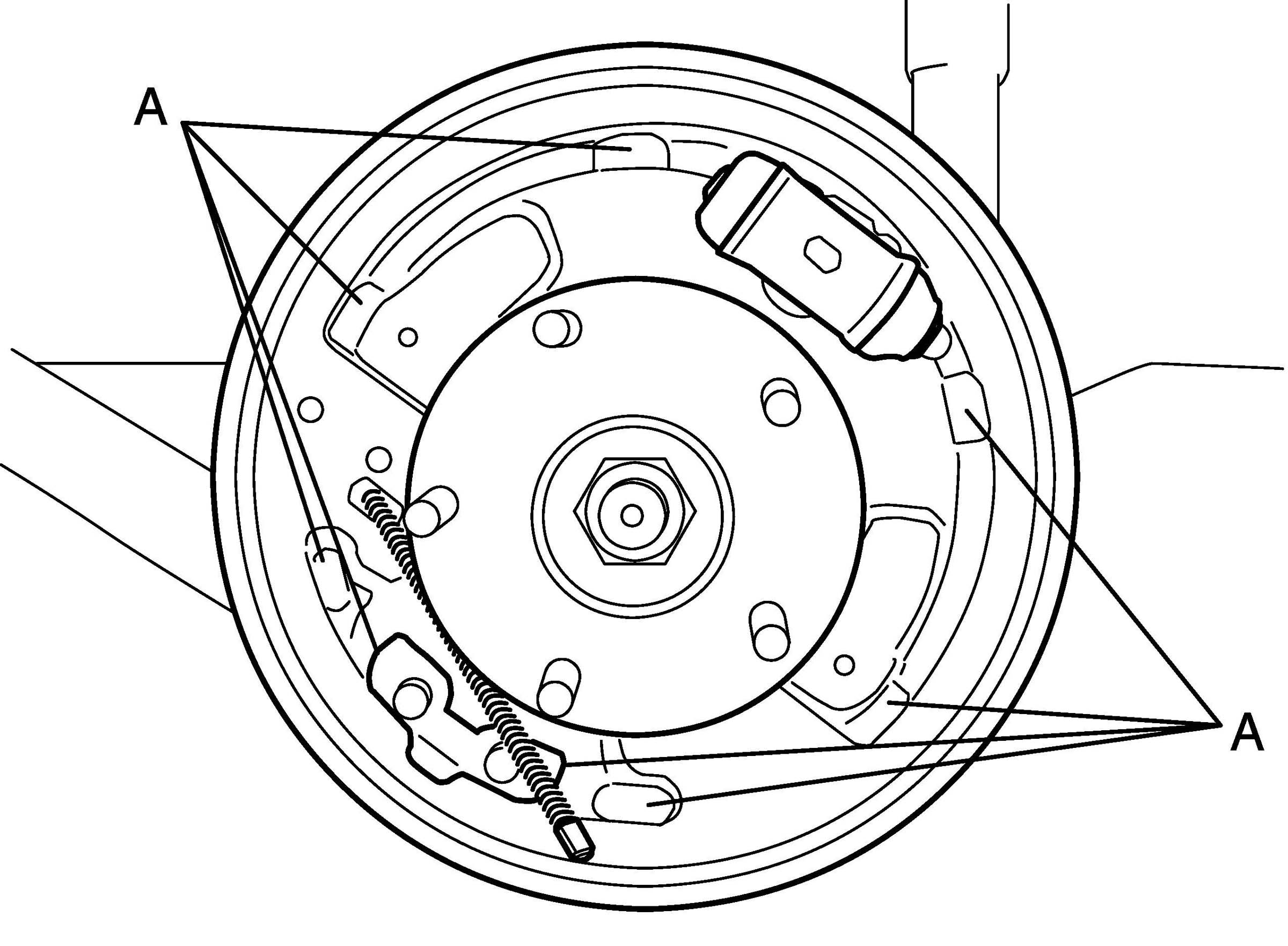

^ Before installing rear brake shoe to brake back plate, clean brake back plate and apply heat resistance brake grease to A on which shoe rims rest.





^ Push and rotate 90° hold down pin and install hold down pin and hold down spring.
^ Install brake drum.
