Reading and Clearing Diagnostic Trouble Codes
>>
ABS
>>
Serial Data Link Circuit Check
Serial Data Link Circuit Check
Serial Data Link Circuit Check

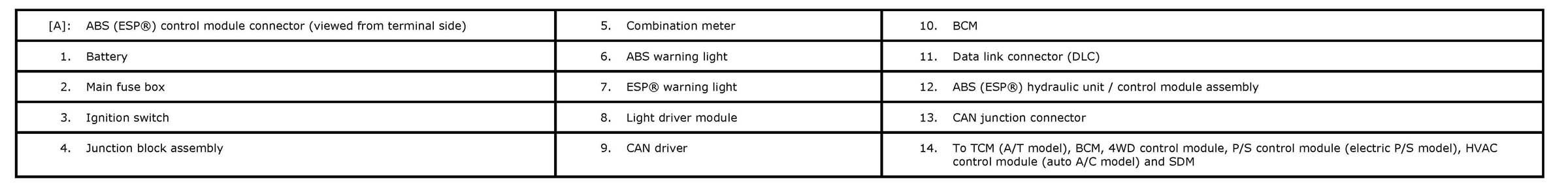

Wiring Diagram
Troubleshooting

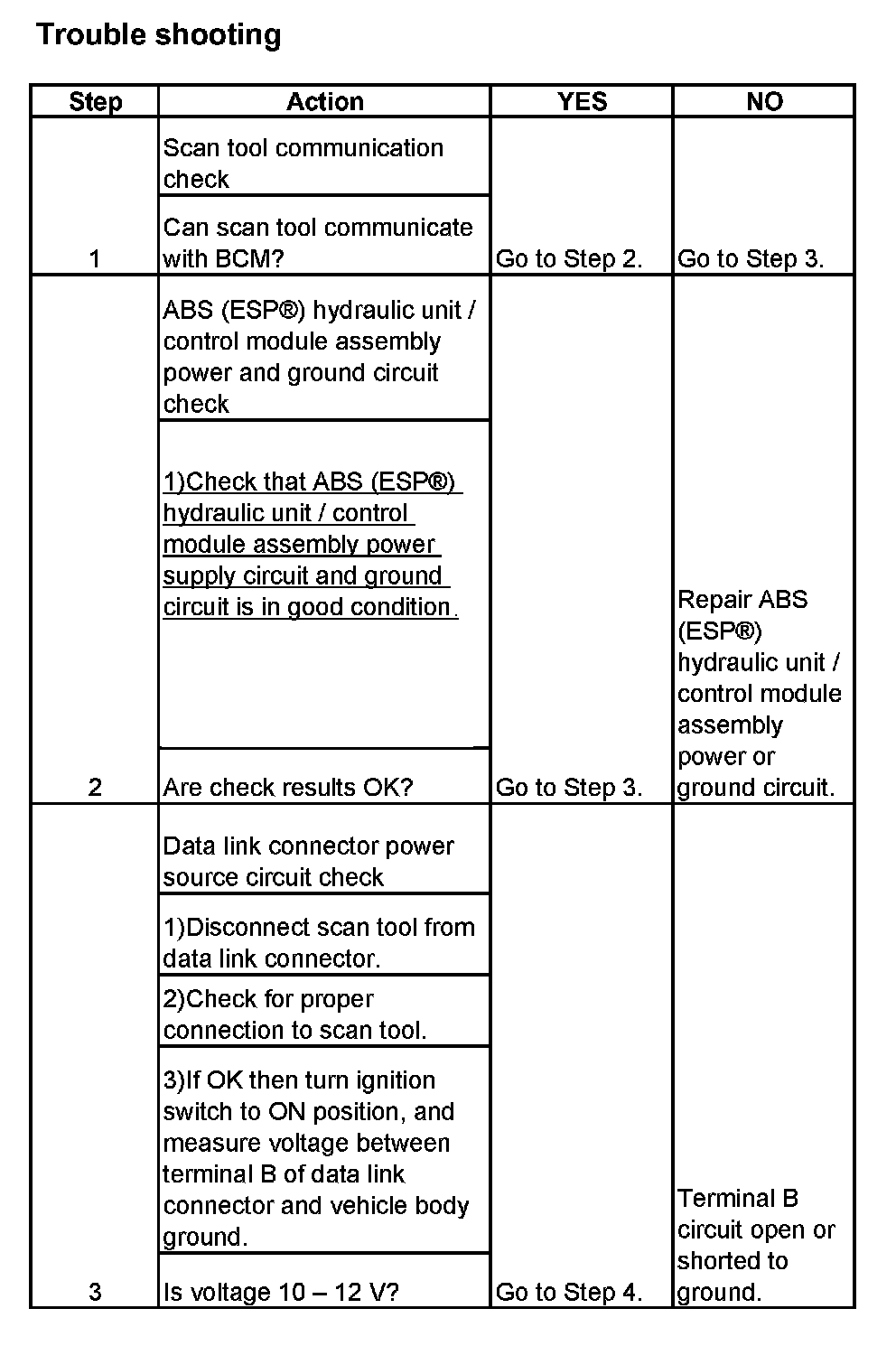

Step 1-3:

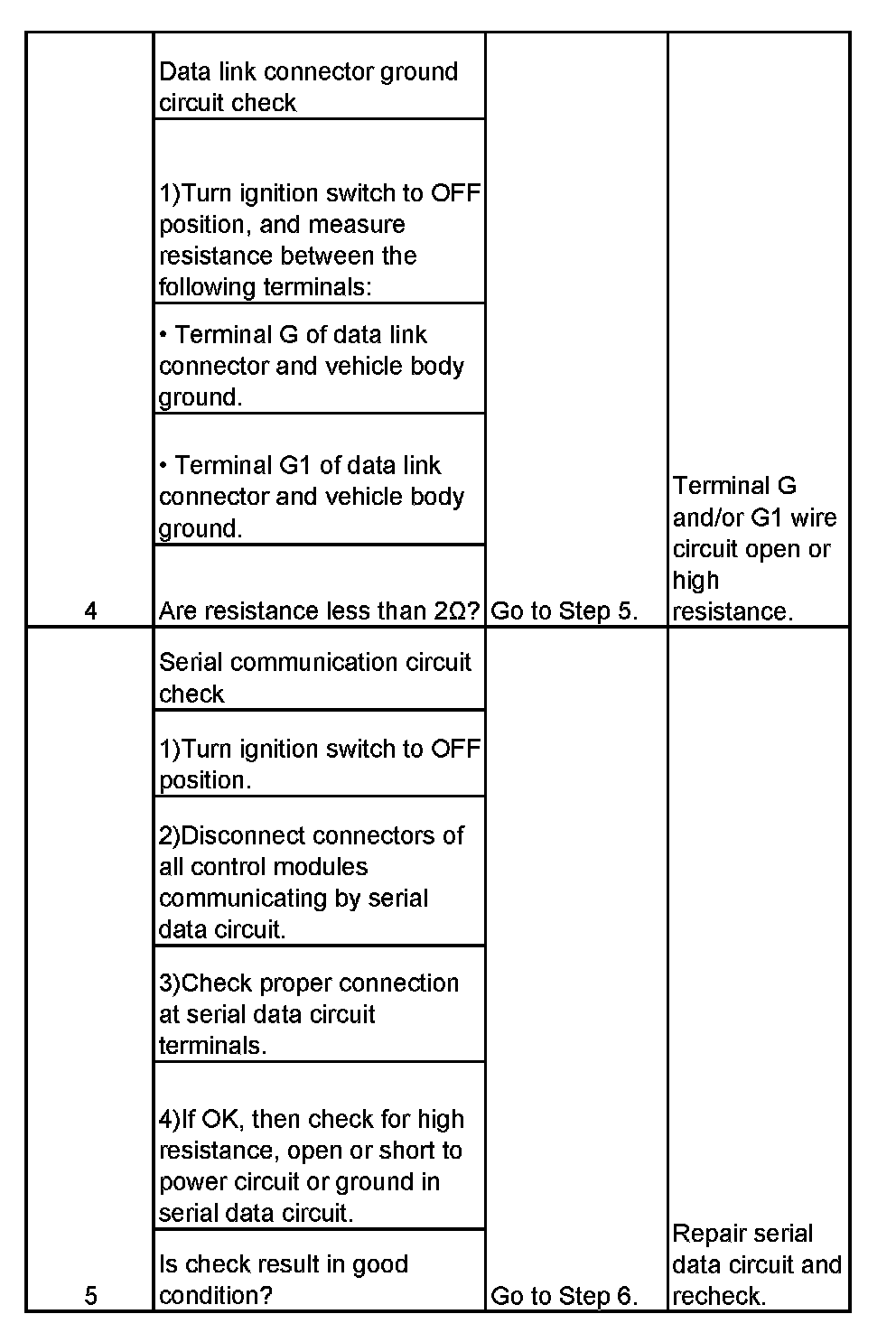

Step 4-5:

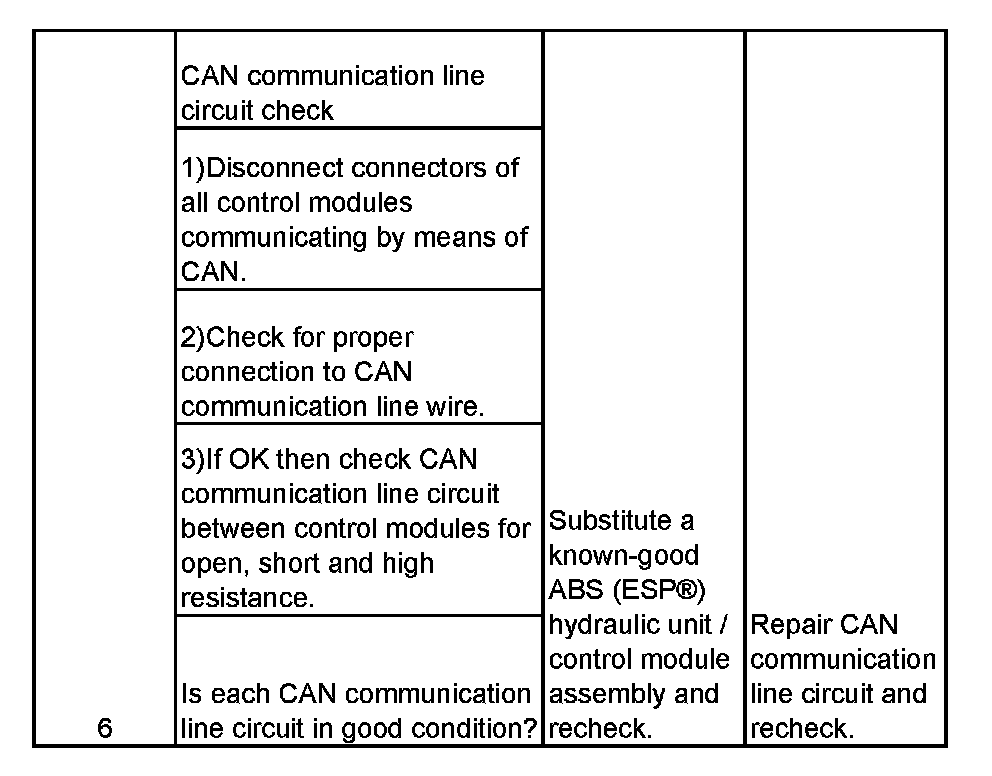

Step 6:
