DTC Check

DTC Check
1. Turn ignition switch to OFF position.

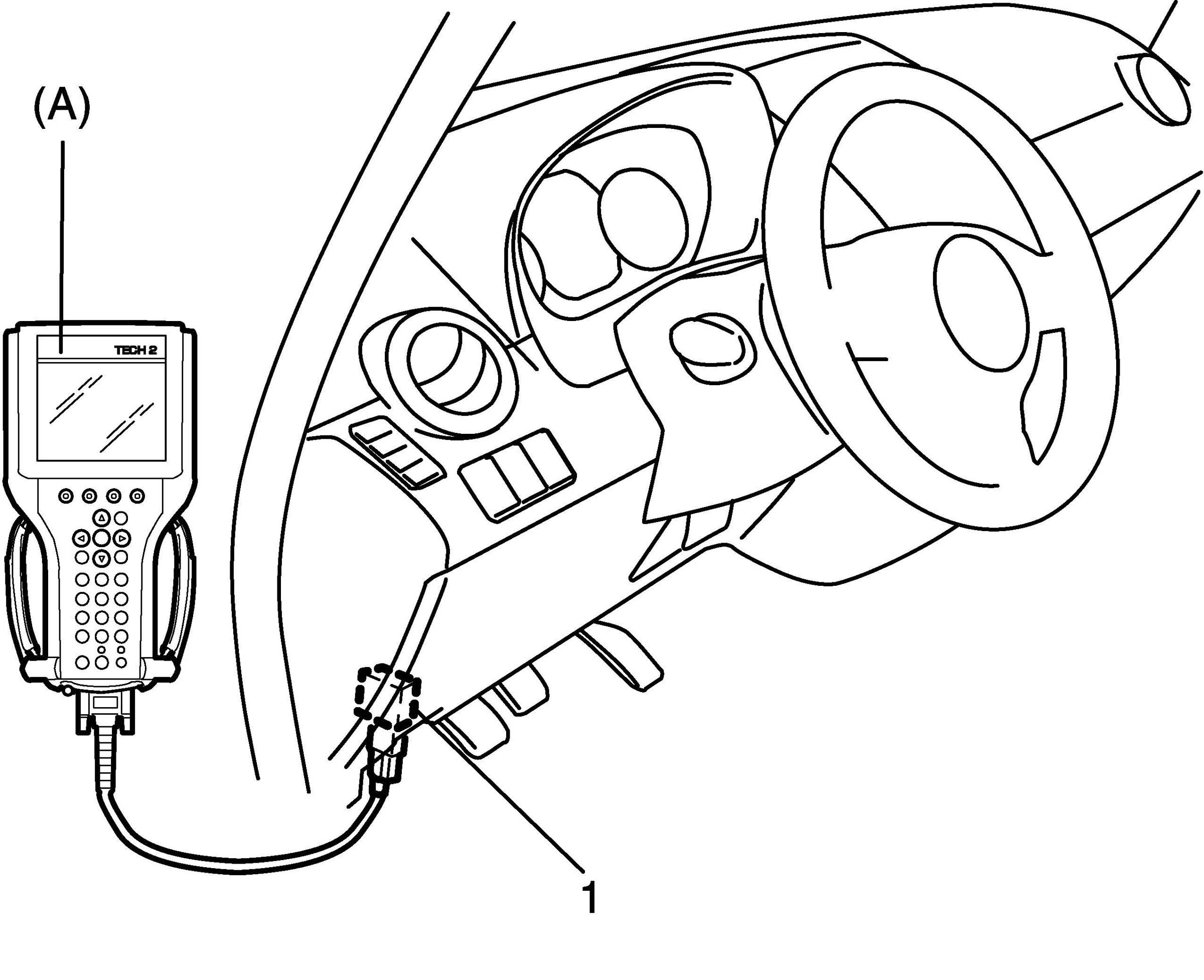

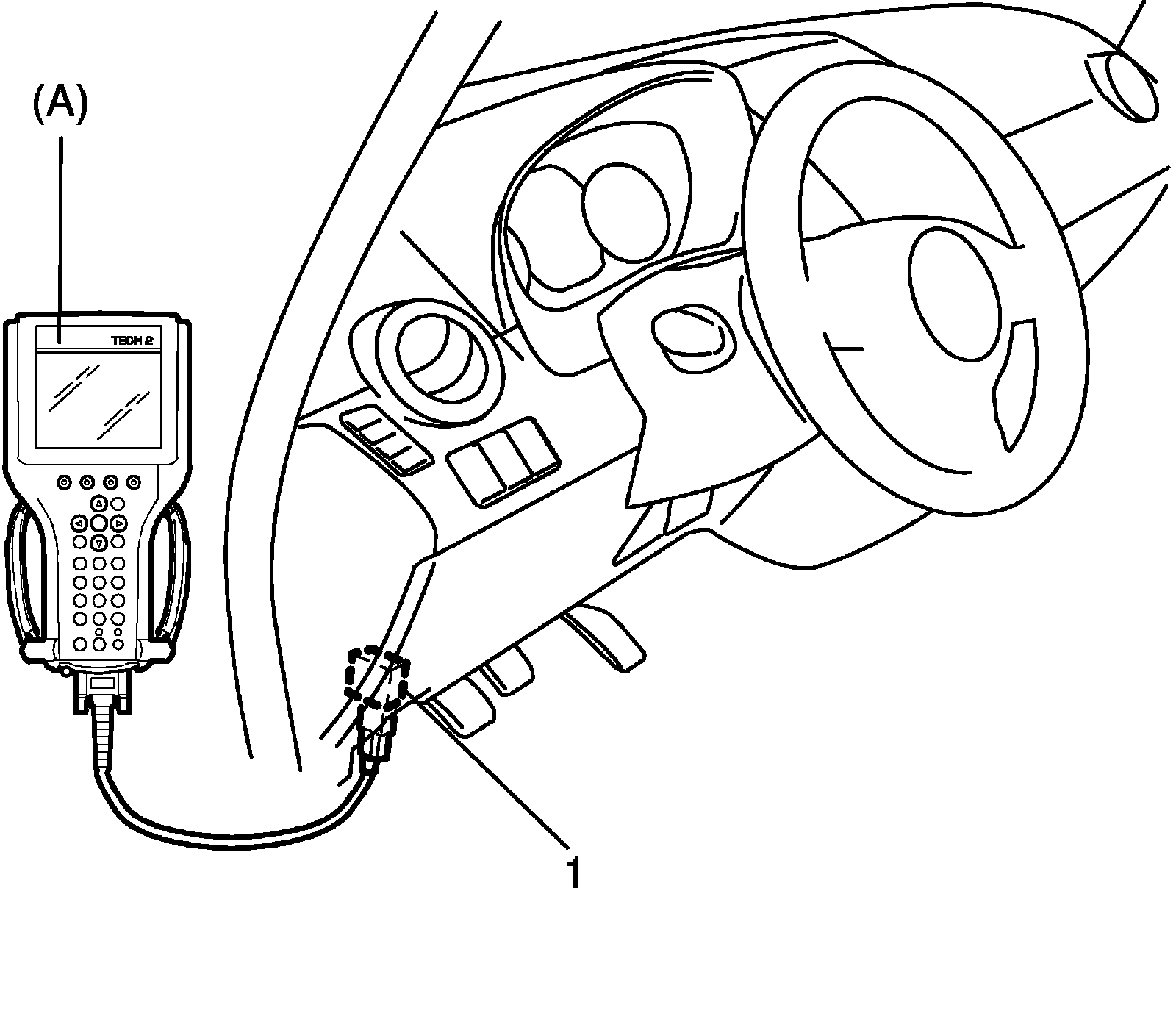

2. Connect SUZUKI scan tool to data link connector (1).
Special Tool (A): SUZUKI scan tool





3. Turn ignition switch to ON position.
4. Read DTC according to instructions displayed on SUZUKI scan tool and print it or write it down.

NOTE: If SUZUKI scan tool can not communicate ABS hydraulic unit / control module, perform Serial Data Link Circuit Check.

5. After completing the check, turn ignition switch off and disconnect SUZUKI scan tool from DLC.
