Home >> Suzuki >> 2007 >> SX4 2WD L4-2.0L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Fail-Safe Table >> EVAP Leak Check Model

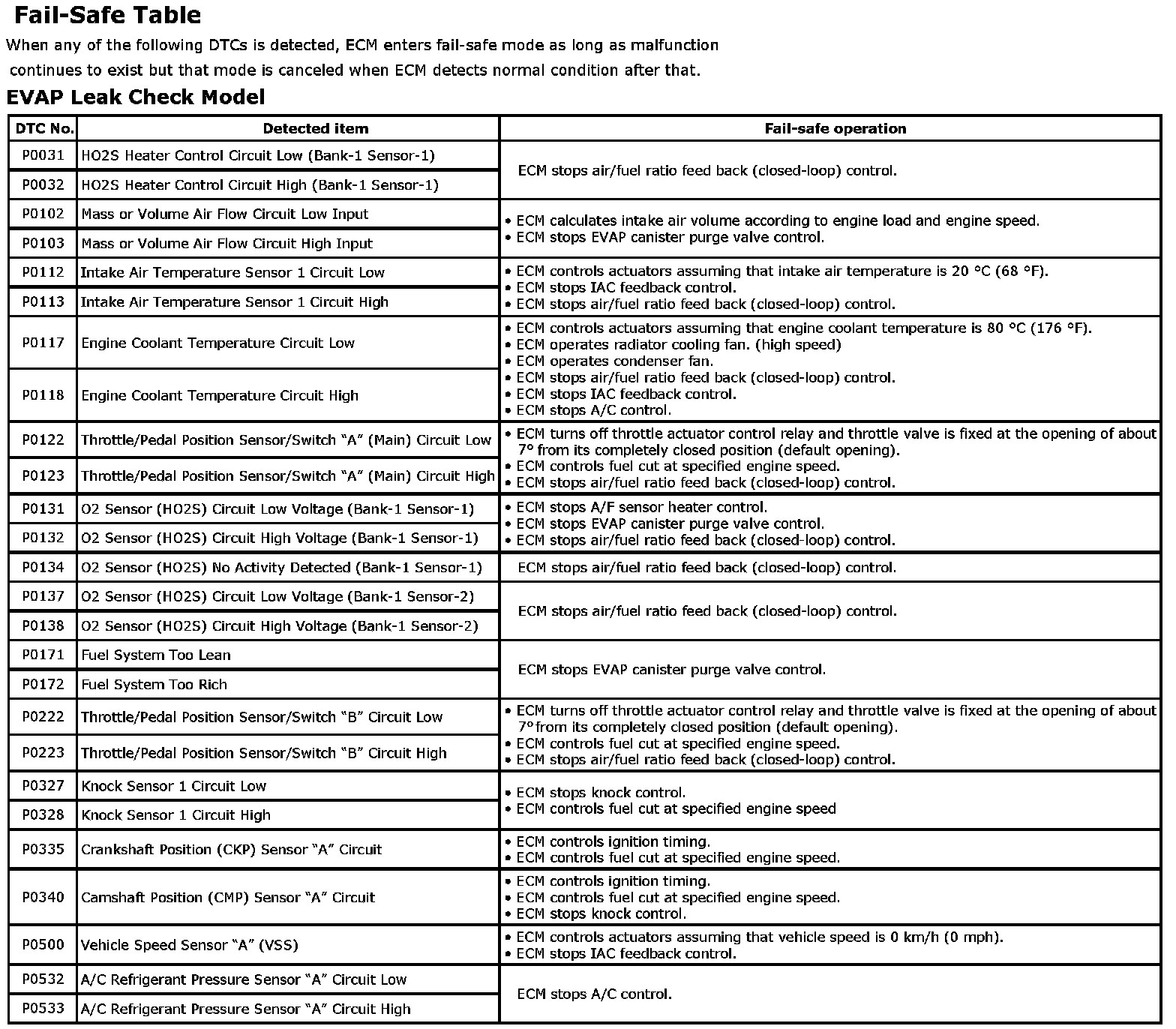

EVAP Leak Check Model

P0031-P0533:

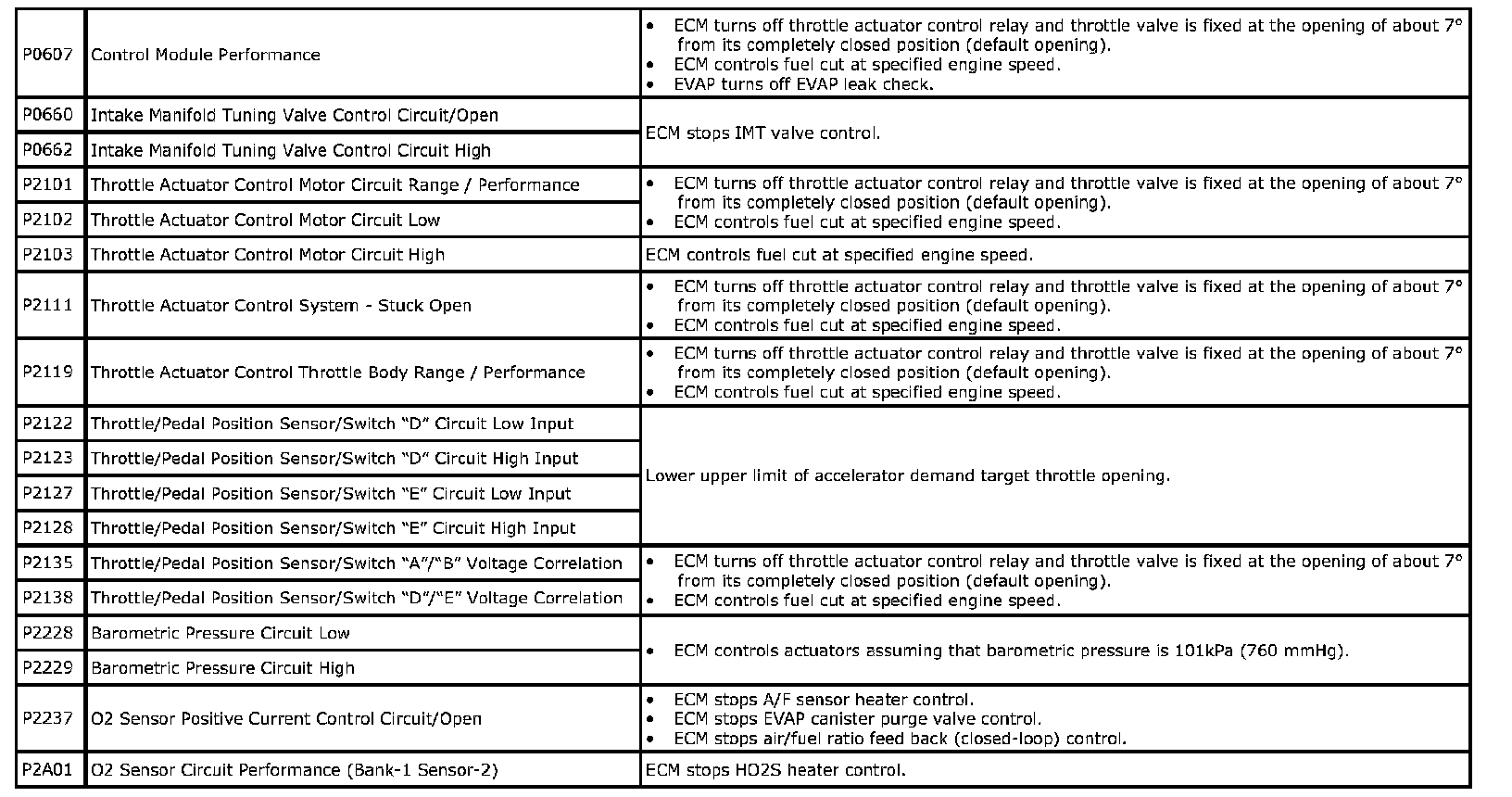

P0607-P2A01:
