C1155

DTC C1155: P/S Control Module Internal Failure

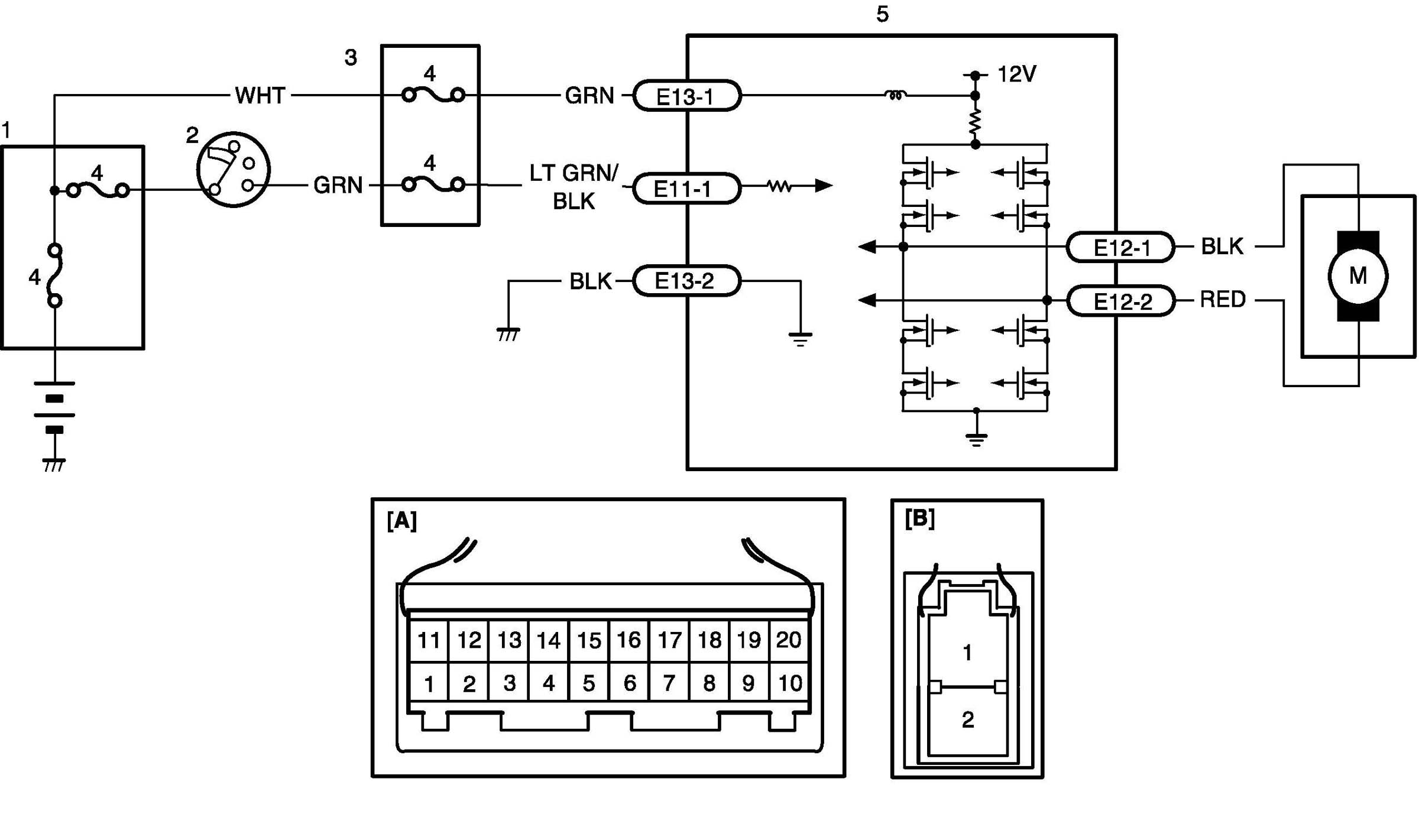

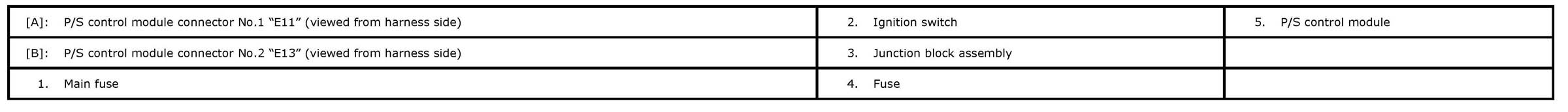

Wiring Diagram

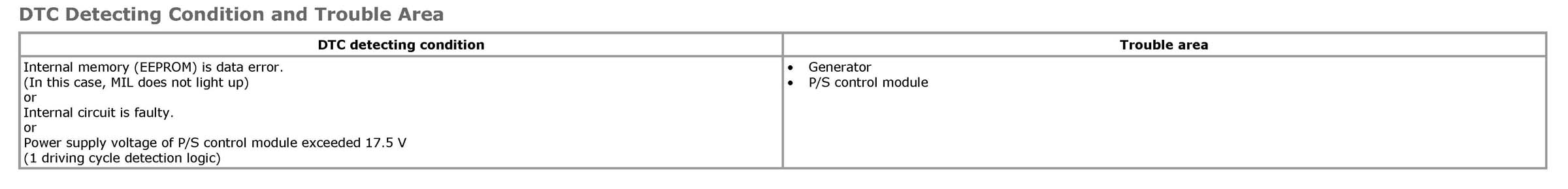

DTC Detecting Condition and Trouble Area

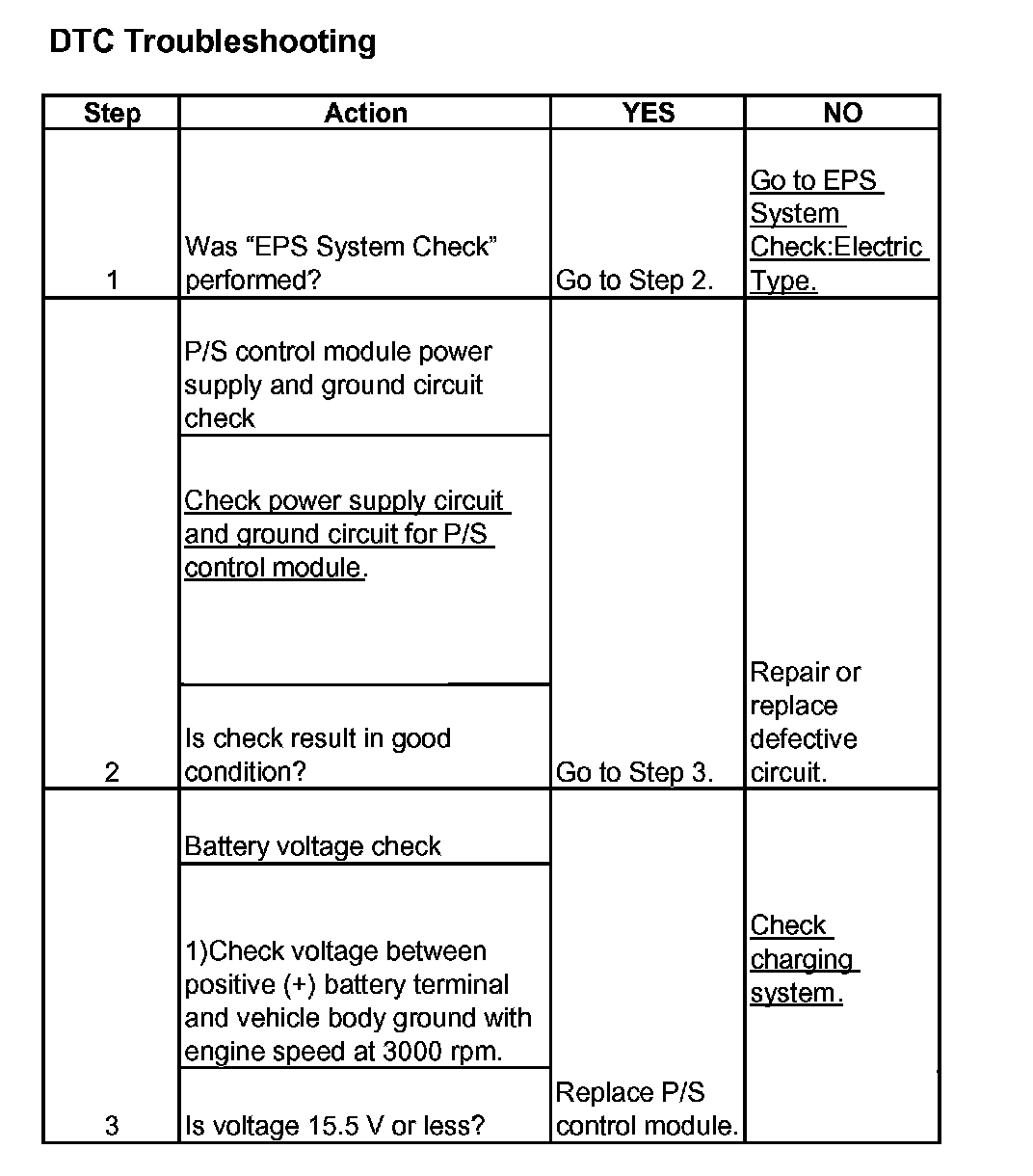

DTC Troubleshooting

Step 1-3:
