B1563
B1563
DTC B1563: A/C Refrigerant Pressure Signal Failure

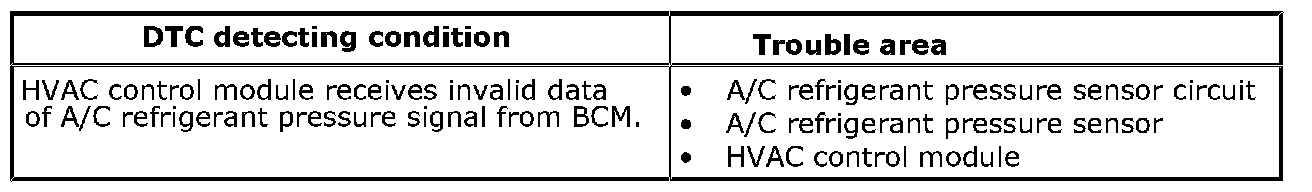

DTC Detecting Condition And Trouble Area:
DTC Detecting Condition and Trouble Area

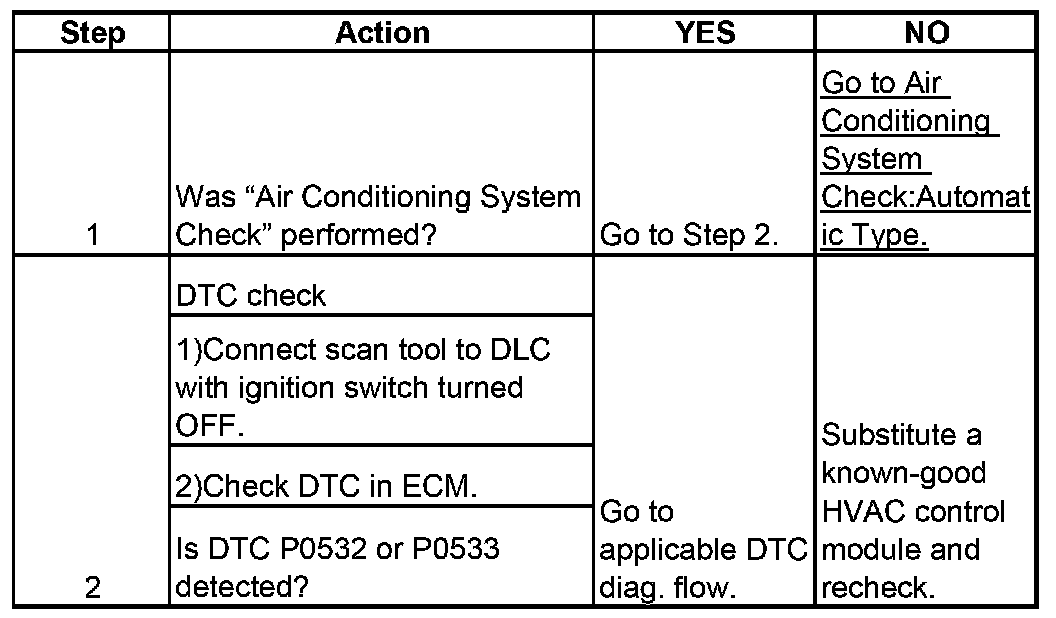

Step 1-2:
DTC Troubleshooting
