B1562
B1562
DTC B1562: Outside Air Temperature Signal Failure

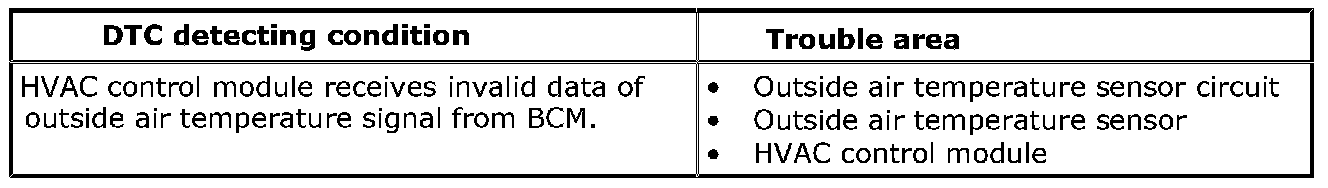

DTC Detecting Condition And Trouble Area:
DTC Detecting Condition and Trouble Area

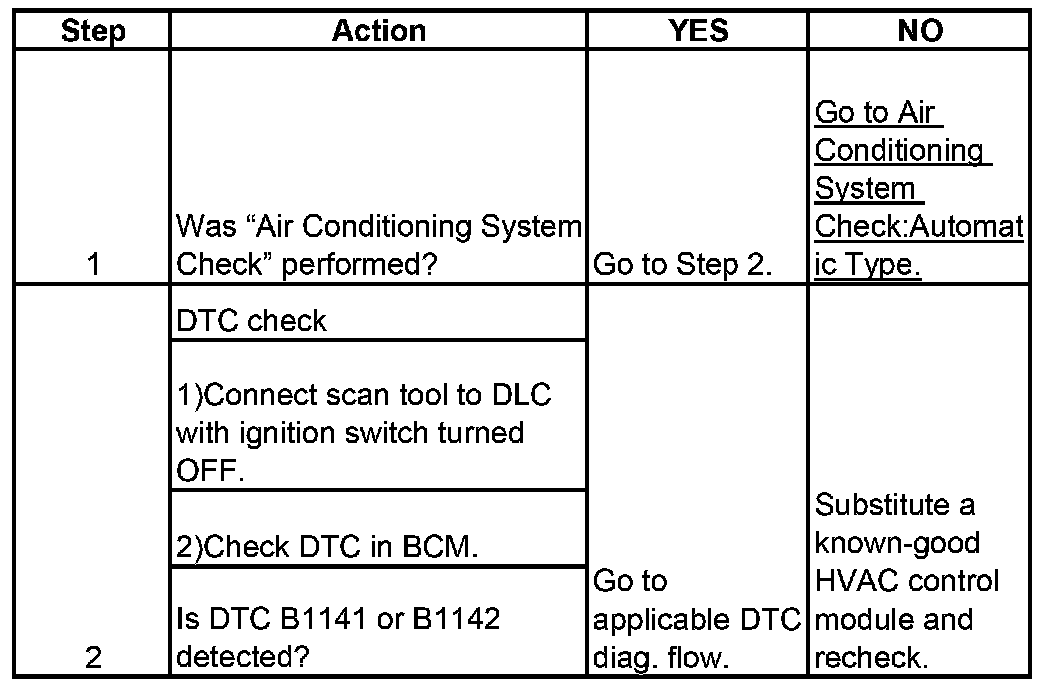

Step 1-2:
DTC Troubleshooting
