DTC B1553: CAN Communication Circuit Malfunction

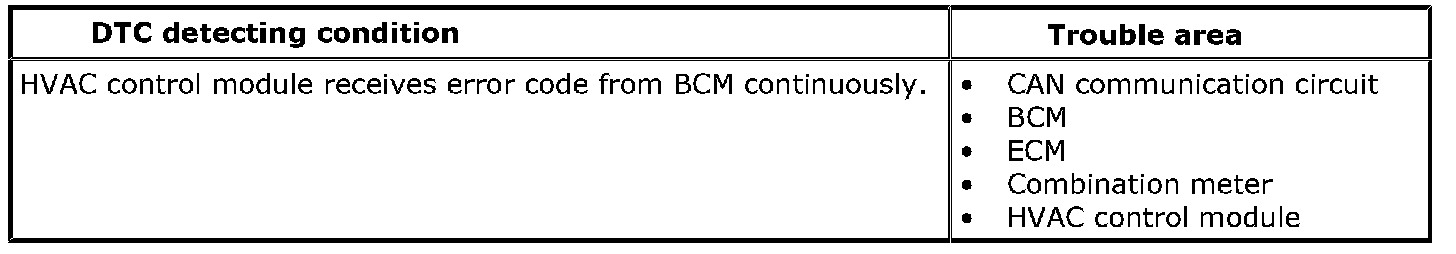

DTC Detecting Condition And Trouble Area:
DTC Detecting Condition and Trouble Area

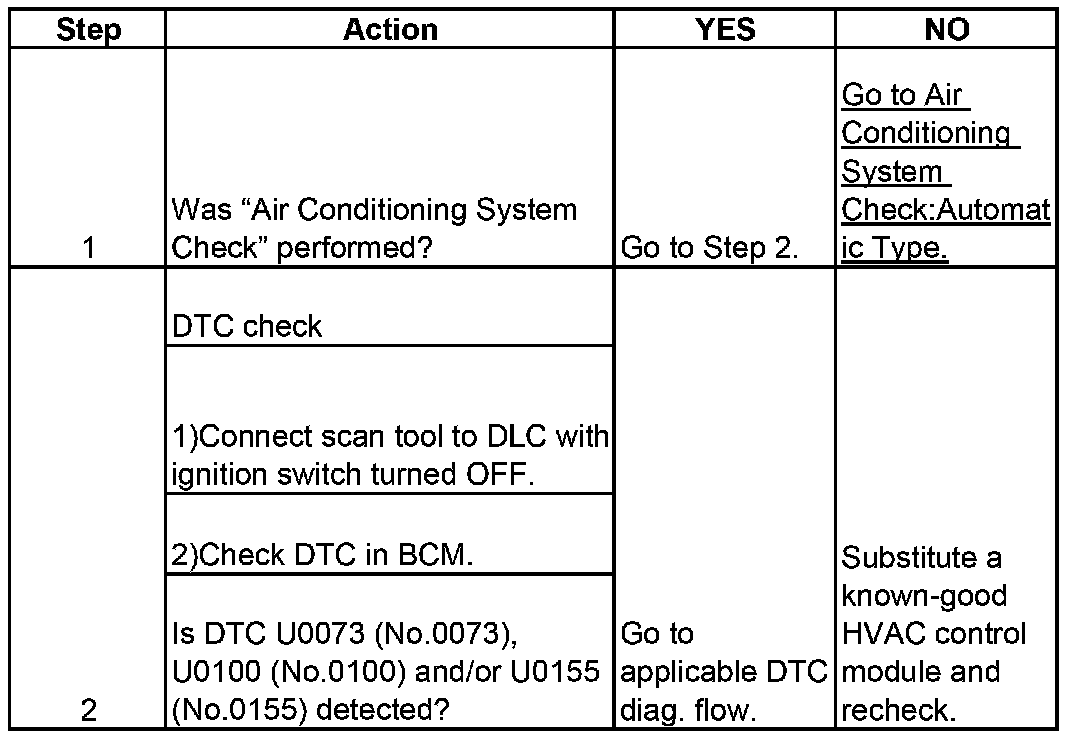

Step 1-2:
DTC Troubleshooting
