DTC B1461: No Input Vehicle Speed Signal

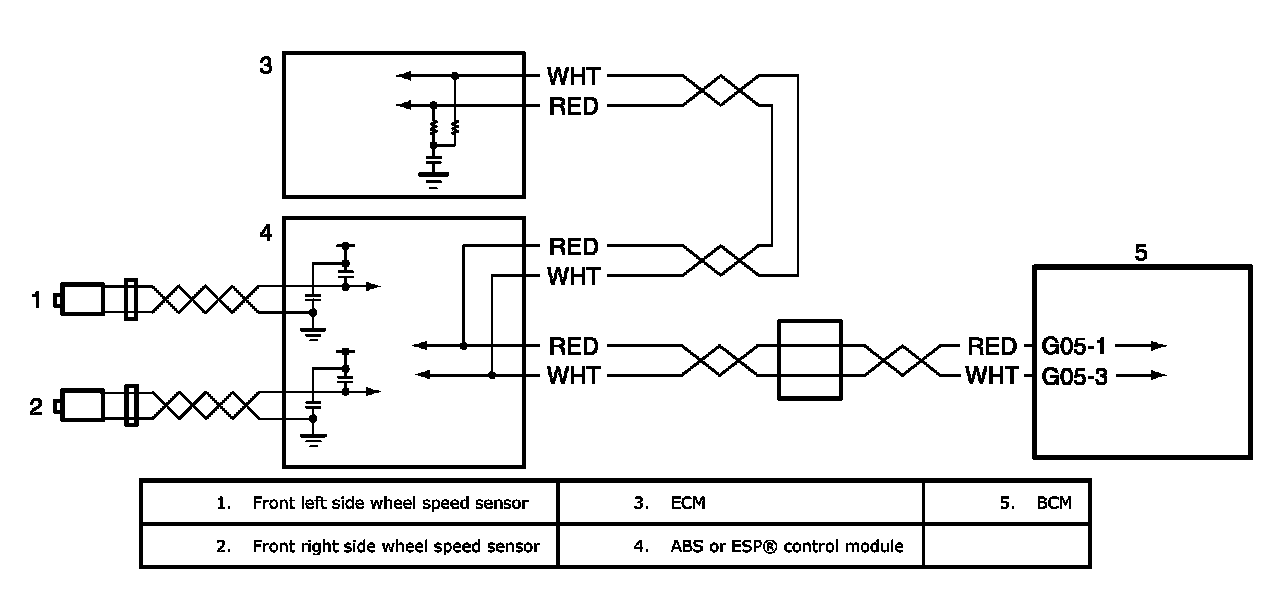

Wiring Diagram:

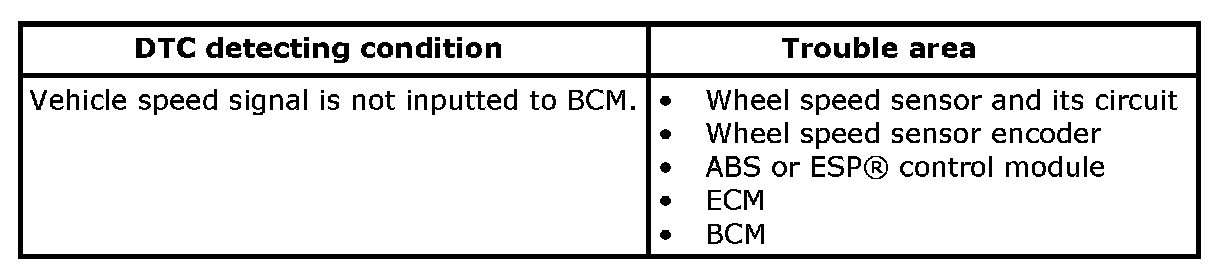

DTC Detecting Condition And Trouble Area:
DTC Detecting Condition and Trouble Area

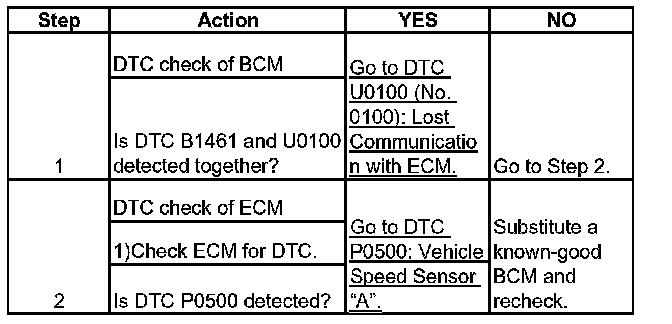

Step 1-2:
Troubleshooting
