Except Advanced Air Bag

DTC B1014: "AIR BAG" Warning Light Circuit

Wiring Diagram
Refer to "AIR BAG" Warning Light Comes ON Steady:Except advanced Air Bag. Except Advanced Air Bag

DTC Detecting Condition And Trouble Area:

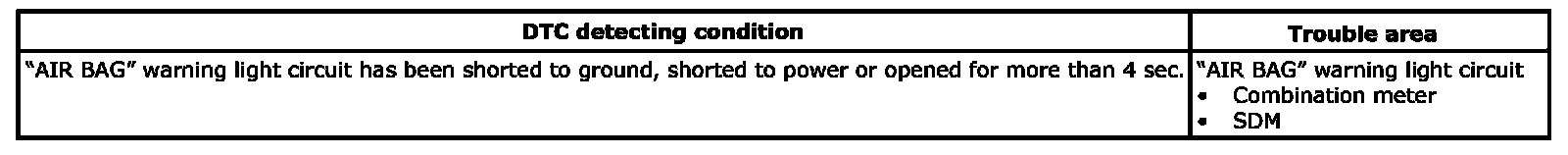

DTC Detecting Condition and Trouble Area

Step 1-2:

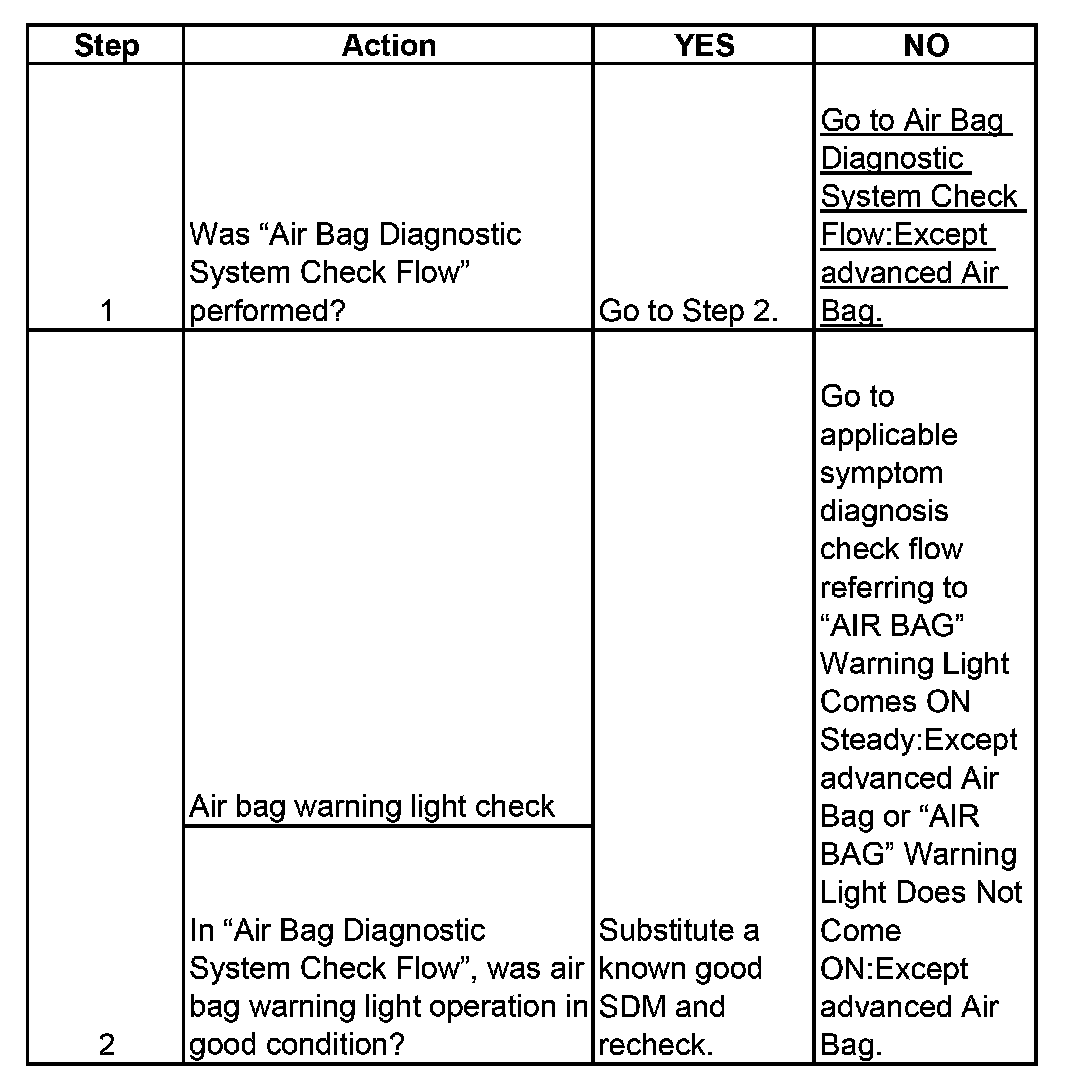

DTC Troubleshooting

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Except advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Except advanced Air Bag to confirm that the trouble has been corrected.
