Advanced Air Bag

DTC B1014: "AIR BAG" Warning Light Circuit

Wiring Diagram
Refer to "AIR BAG" Warning Light Comes ON Steady:Advanced Air Bag. Advanced Air Bag

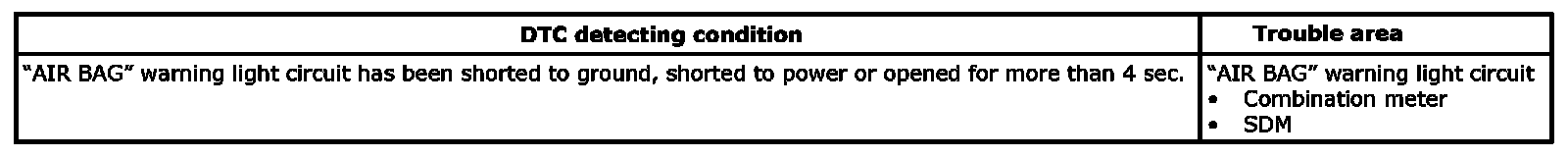

DTC Detecting Condition And Trouble Area:

DTC Detecting Condition and Trouble Area

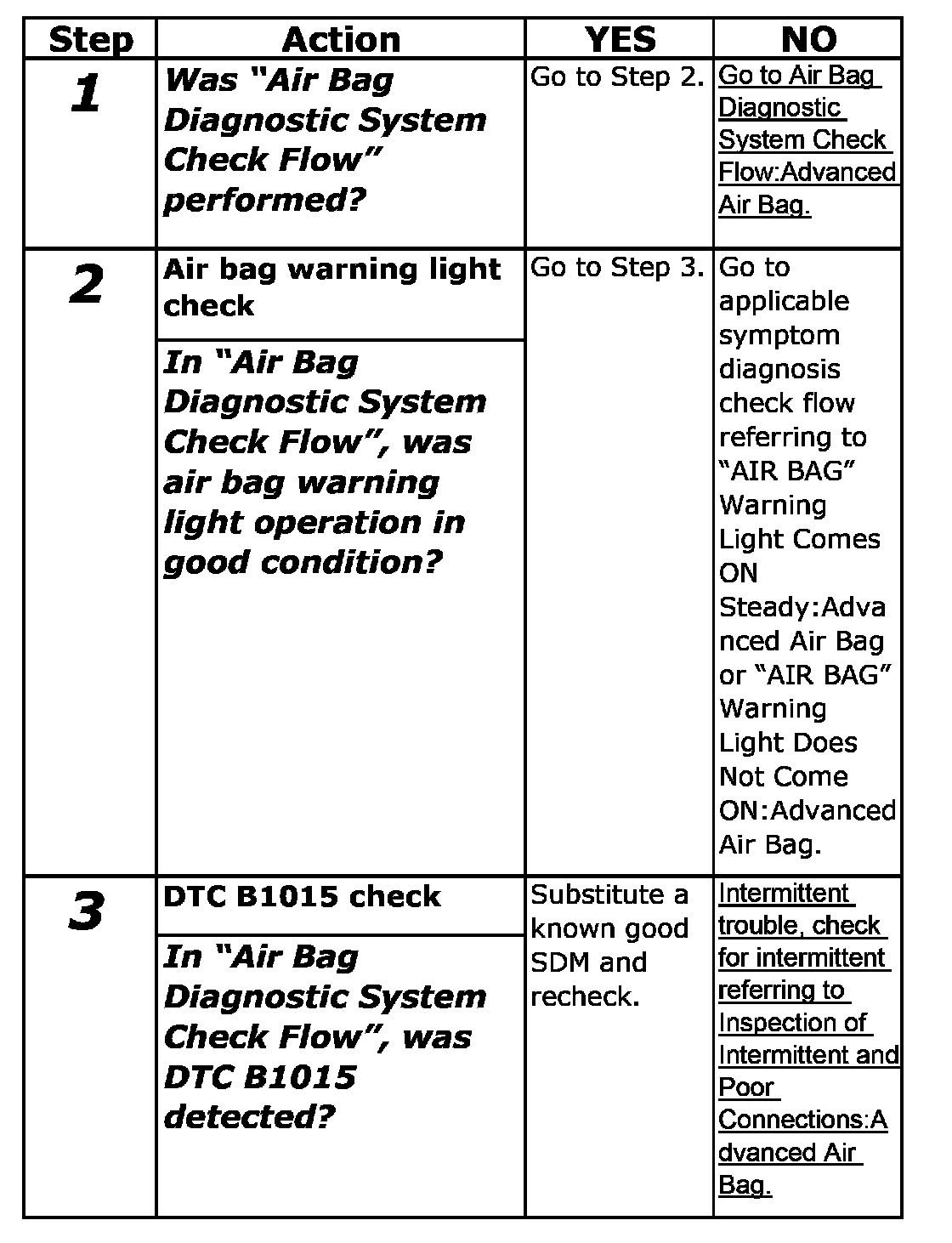

Step 1-3:

DTC Troubleshooting

CAUTION: Be sure to observe instructions in Air Bag Diagnostic System Check:Advanced Air Bag.

NOTE: Upon completion of inspection and repair work, perform the following items.
^ Reconnect all air bag system components and ensure all components are properly mounted.
^ Clear DTCs referring to DTC Clearance:Advanced Air Bag, if any.
^ Repeat Air Bag Diagnostic System Check:Advanced Air Bag to confirm that the trouble has been corrected.
