22. Transaxle Housing Removal and Installation

Transaxle housing Removal and Installation
Removal

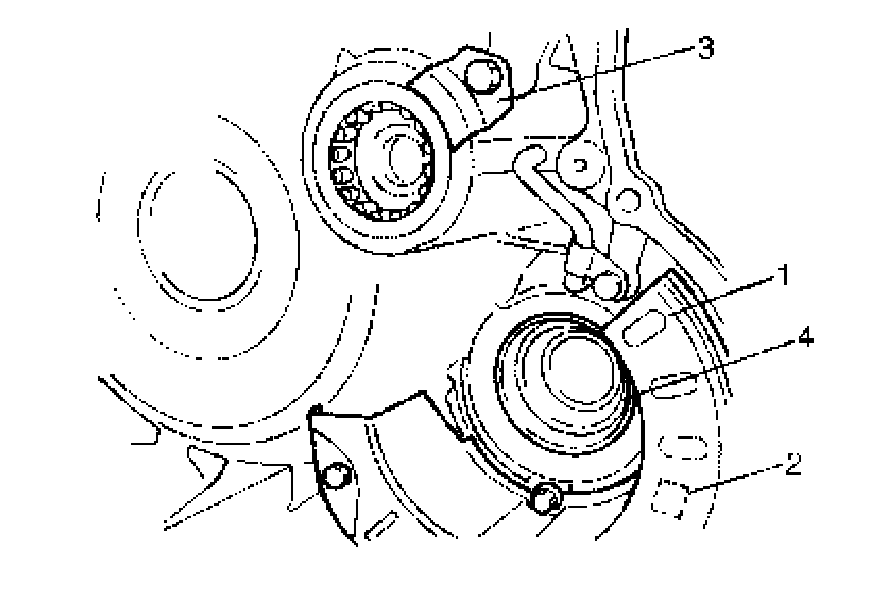

1. Remove oil seal (4).

NOTE: Never reuse removed oil seal.

2. Remove oil reservoir plate (1) with three magnets (2) by removing bolts.





3. Remove cylindrical roller bearing retainer (3) by removing bolt.

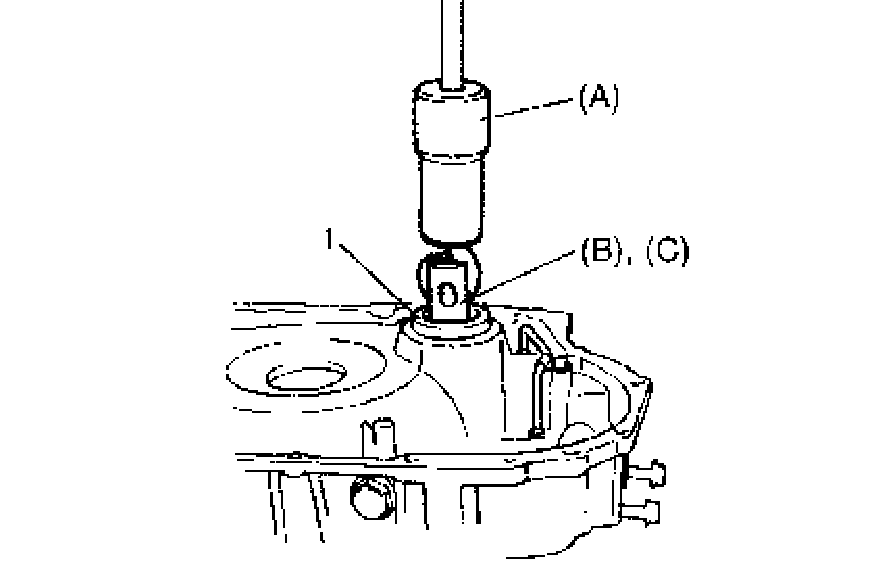

4. Remove counter shaft RH cylindrical roller bearing (1), using special tools.
Special Tool
(A): 09942-15511
(B): 09941-54911
(C): 09921-26010

NOTE: Never reuse removed cylindrical roller bearing.





5. Remove counter shaft RH thrust roller bearing.

Installation

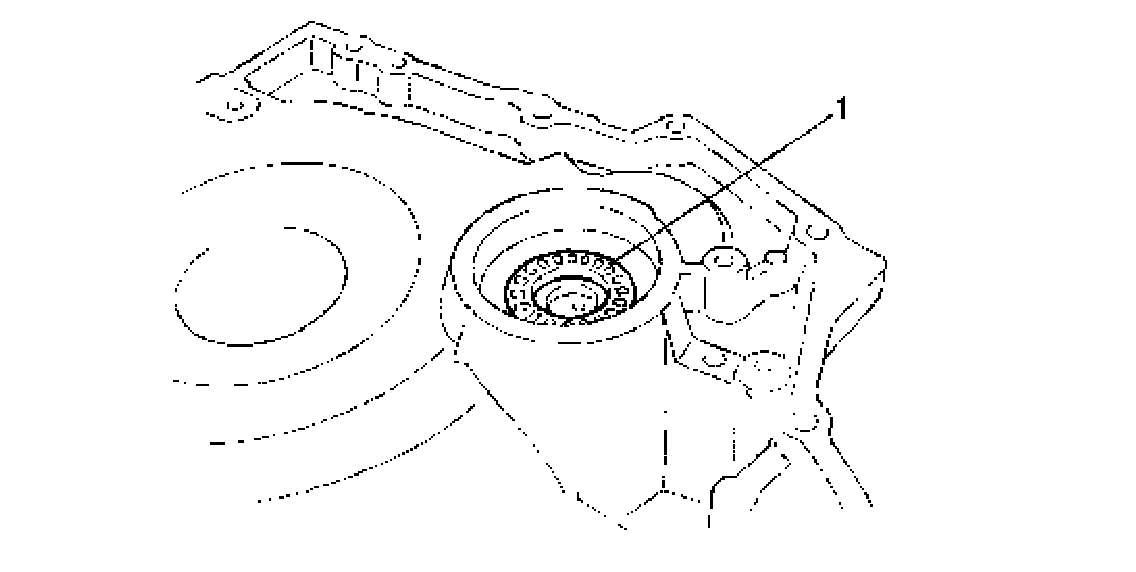

1. Apply A/T fluid to counter shaft RH thrust roller bearing (1).
Counter shaft RH thrust roller bearing dimension
Outside diameter: 46.0 mm (1.81 inch)
Inside diameter: 32.5 mm (1.28 inch)
Thickness: 3.2 mm (0.13 inch)





2. Install counter shaft RH thrust roller bearing (1) to transaxle housing.
3. Apply A/T fluid to outer surface of cylindrical roller bearing.





4. Tap cylindrical roller bearing, using special tools.
Special Tool
(A): 09924-74510
(B): 09944-88210

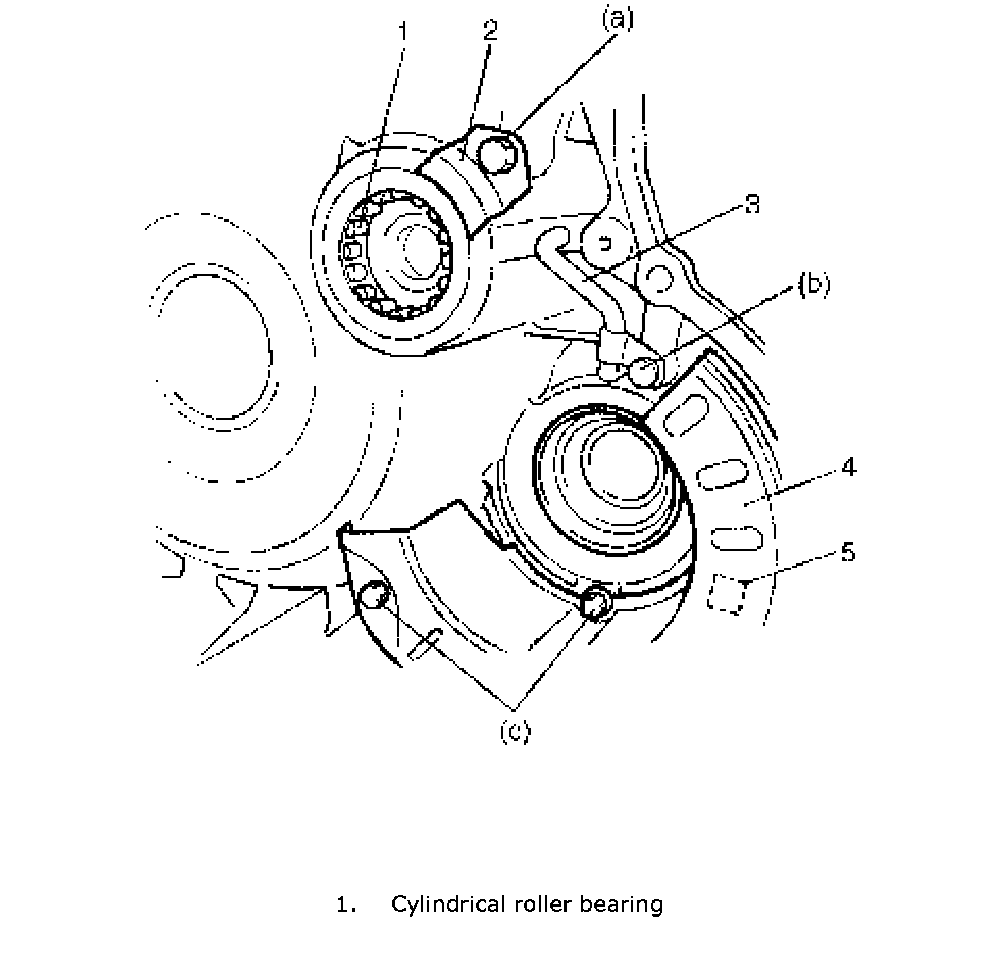

5. Tighten cylindrical roller bearing retainer (2) with bolt.
Tightening torque
Cylindrical roller bearing retainer bolt (a): 13 Nm (1.3 kgf-cm, 9.5 ft. lbs.)
6. Install transaxle lubrication tube (3) and clamp.





7. Tighten them with bolt.
Tightening torque
Lubrication tube clamp bolts (b): 5.5 Nm (0.55 kgf-cm, 4.0 ft. lbs.)
8. Tighten oil reservoir plate (4) (with three magnets (5) installed) with bolts.
Tightening torque
Oil reservoir plate bolts (c): 5.5 Nm (0.55 kgf-cm, 4.0 ft. lbs.)
