Seals and Gaskets: Service and Repair

Differential Side Oil Seal Replacement
1. Lift up vehicle and drain automatic transaxle fluid.
2. Remove drive shaft joints from differential gear of transaxle. For differential side oil seal removal, it is not necessary to remove drive shafts from steering knuckle.
3. Remove differential side oil seal by using screw driver or like.
4. Apply grease to new differential side oil seal lip.
Grease 99000-25030

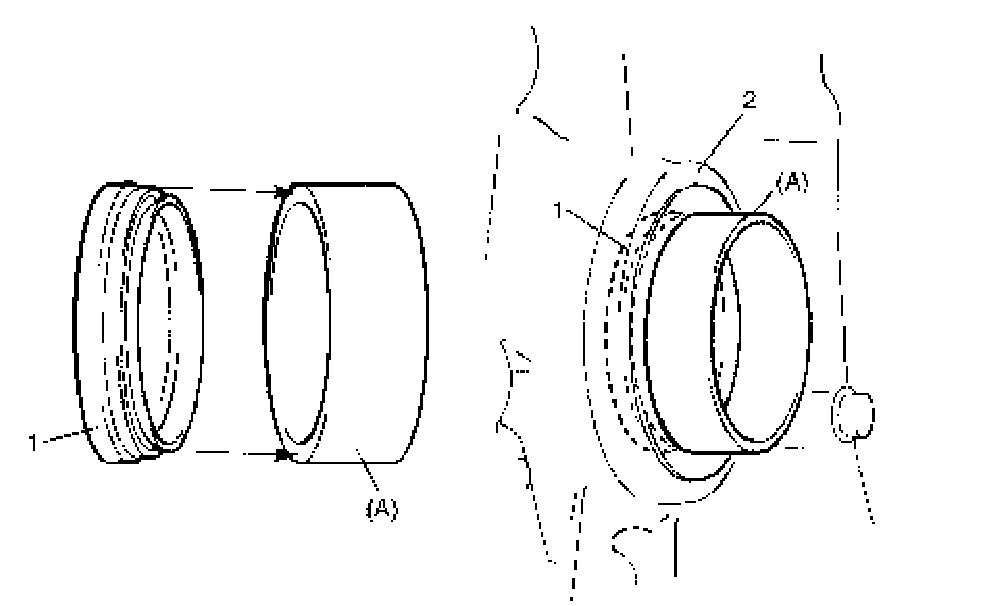

5. Install new differential side oil seal (1) by using special tool.

NOTE: For oil seal installation, press-fit oil seal so that transaxle case end face (2) is flush with oil seal end face.

Special Tool (A): 09944-66020
6. Install drive shaft.
7. Pour A/T fluid.
