Fuse: Application and ID

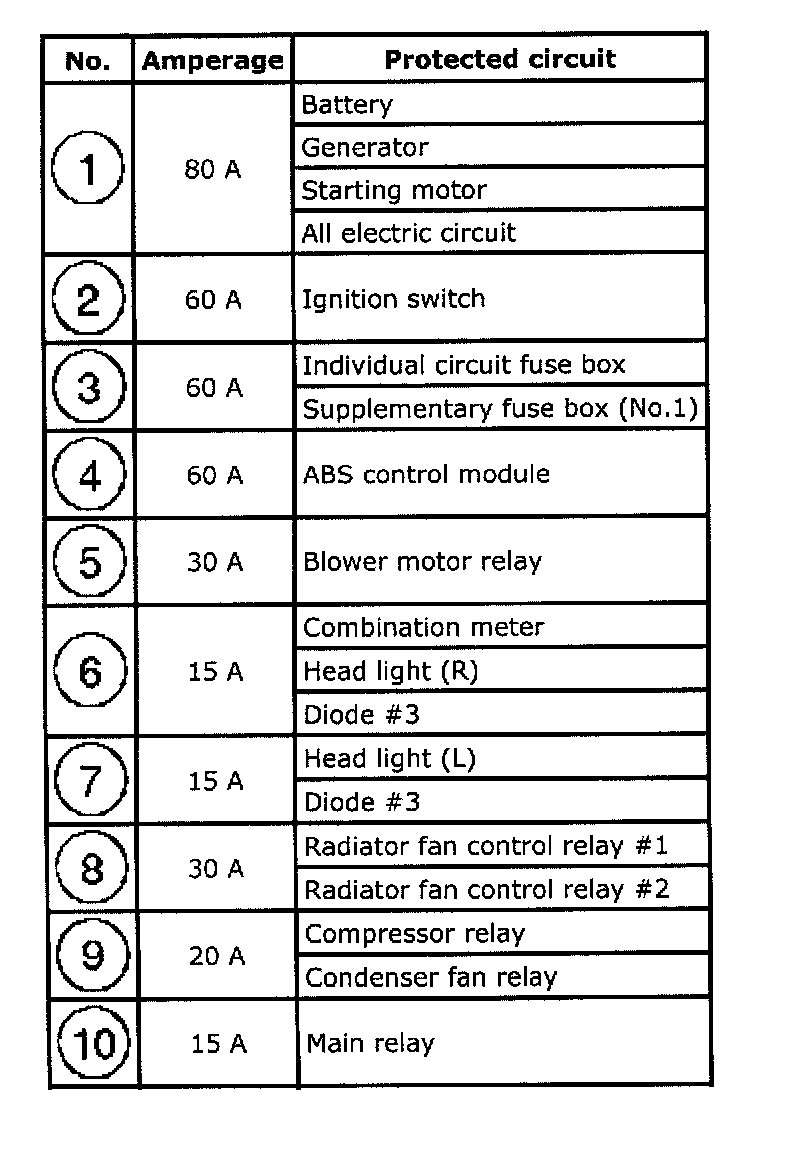

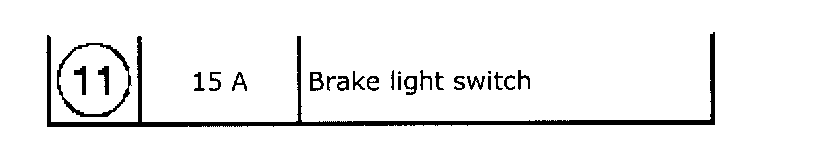

Application Table 1:

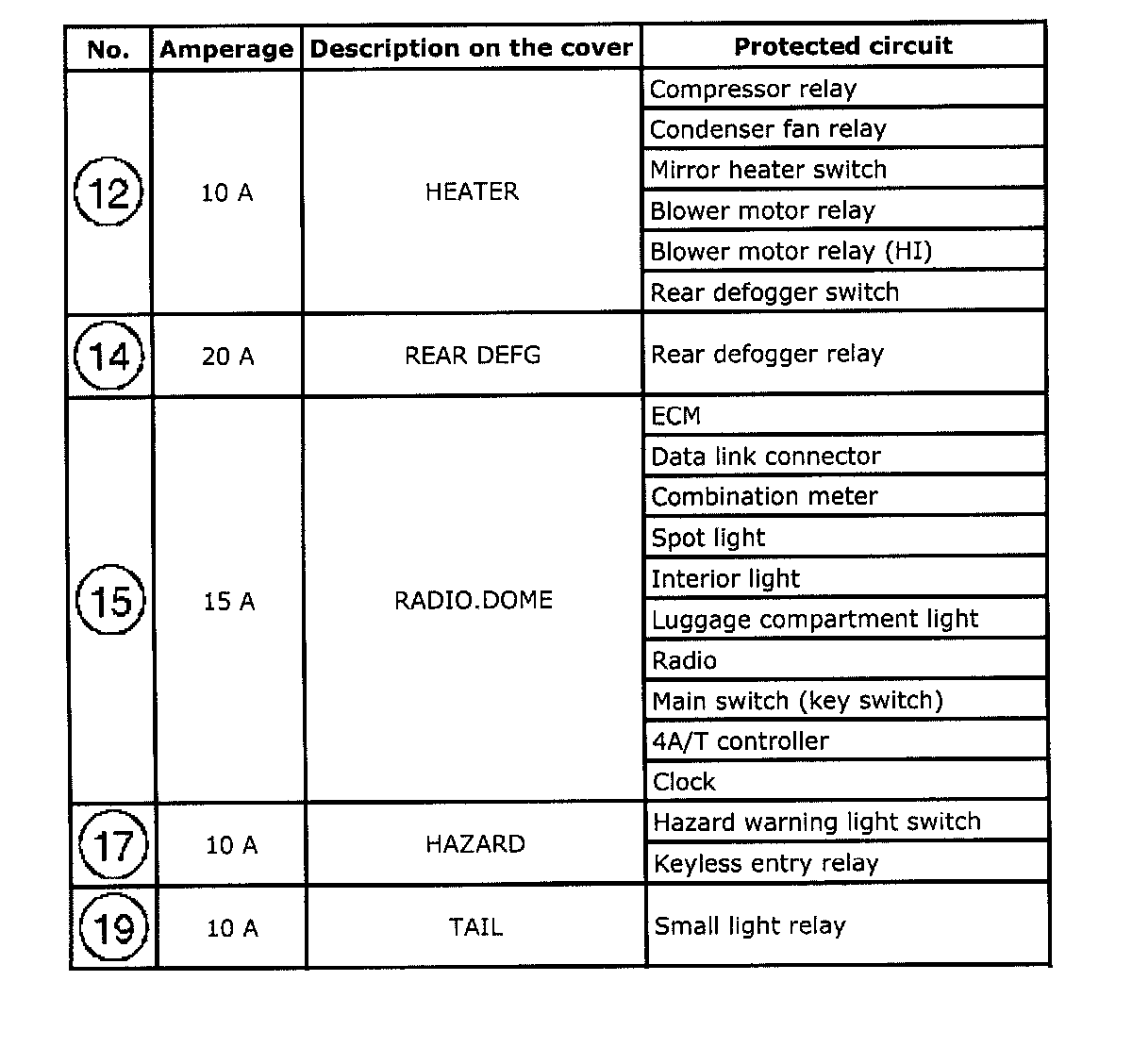

Application Table 3:

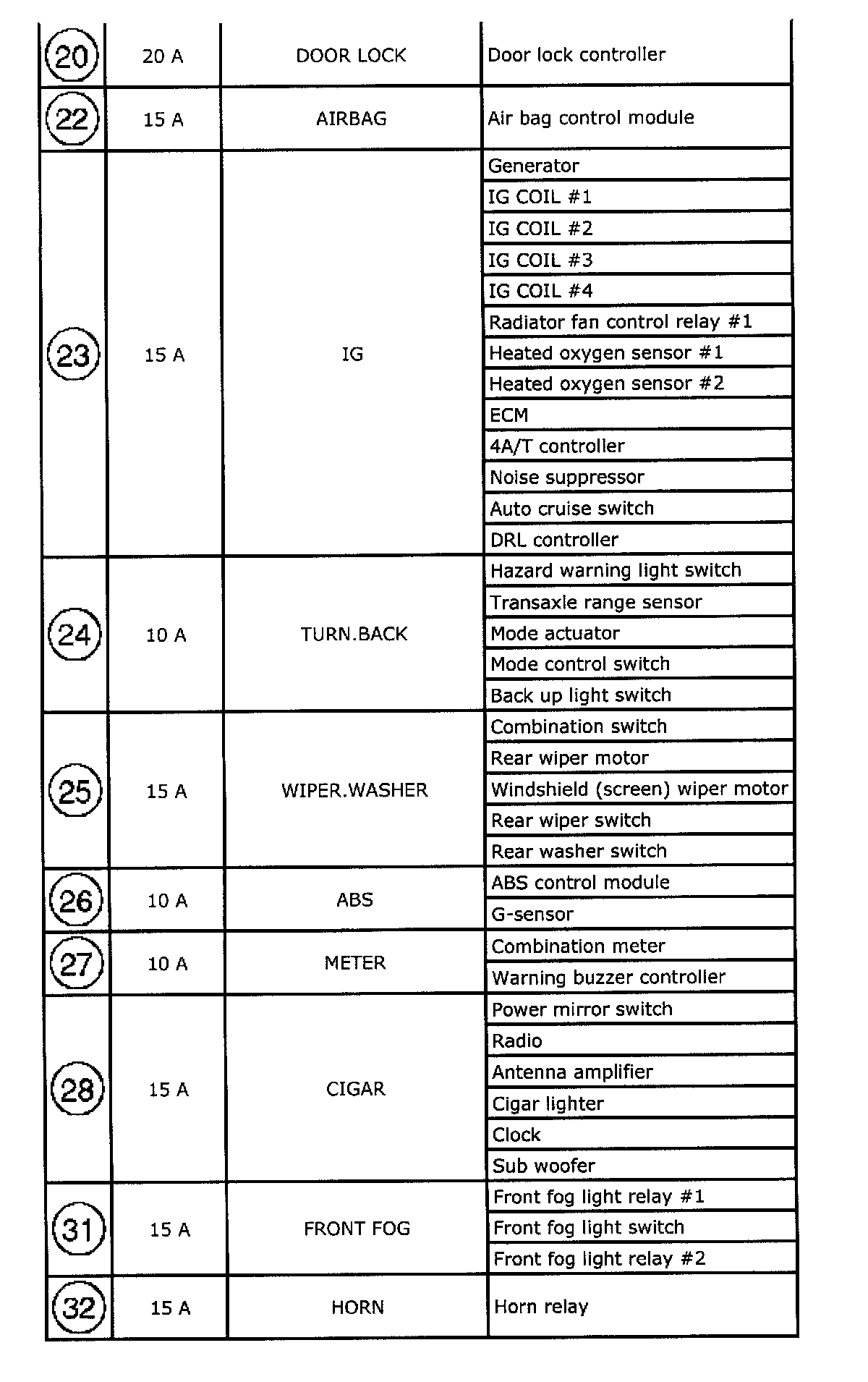

Application Table 4:

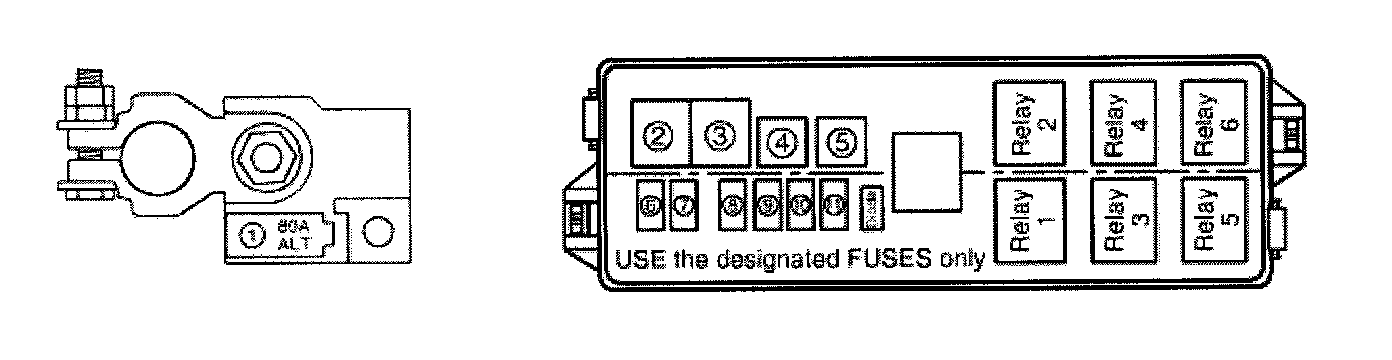

Fuse Box View 1:



1 Of 2:



2 Of 2:

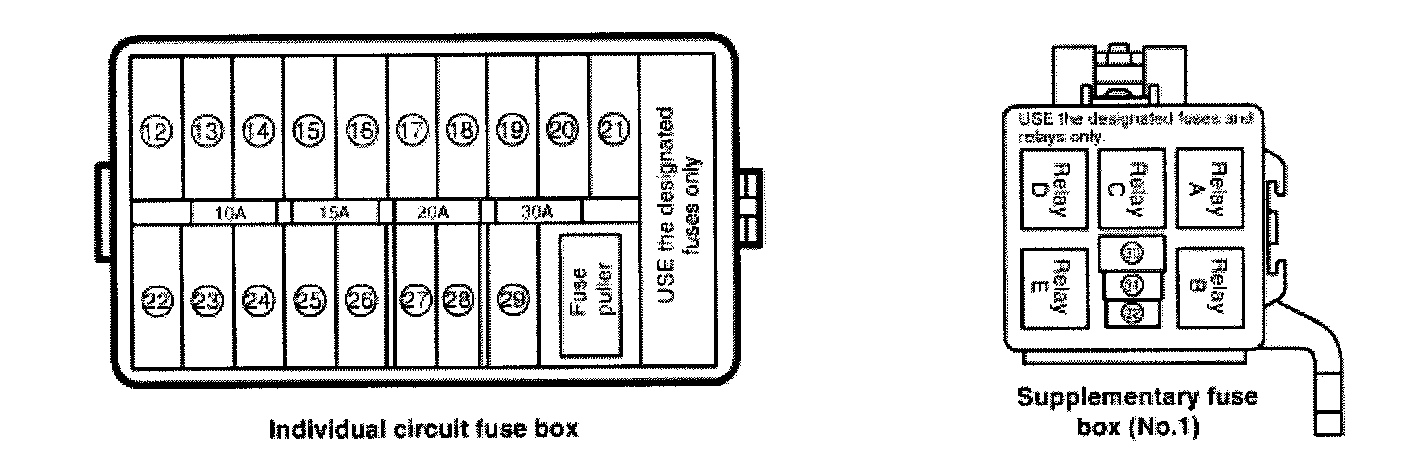

Fuse Box View 2:



1 Of 2:



2 Of 2:

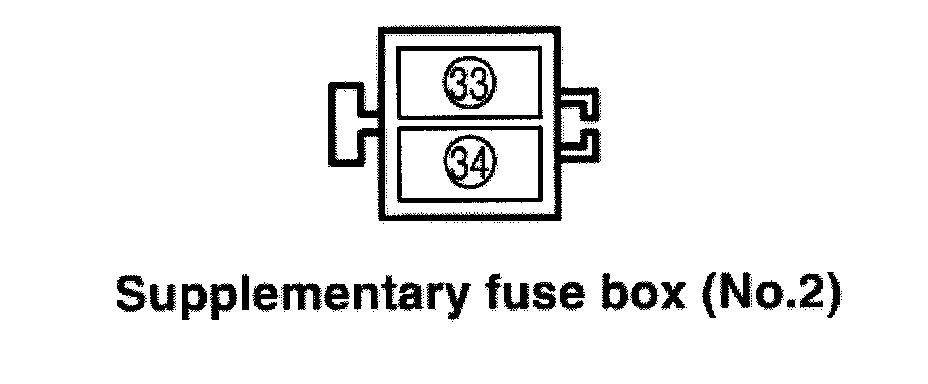

Supplementary Fuse Box (No 2):
