Component Locations

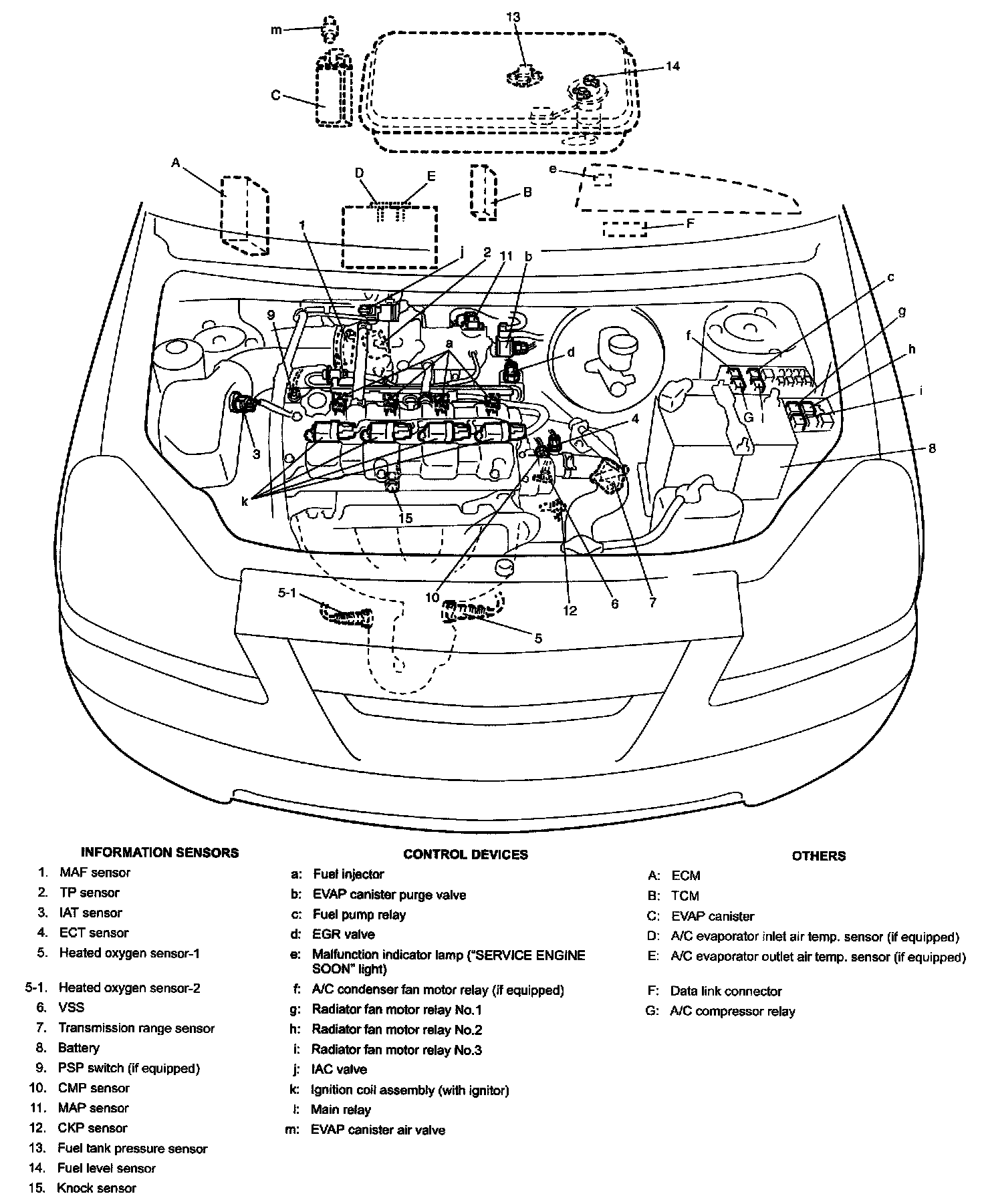

Electronic Control System Component Location:



Engine And Emission Control System Hose And Piping Location:



Ignition System Components Location:
