Throttle Body: Testing and Inspection

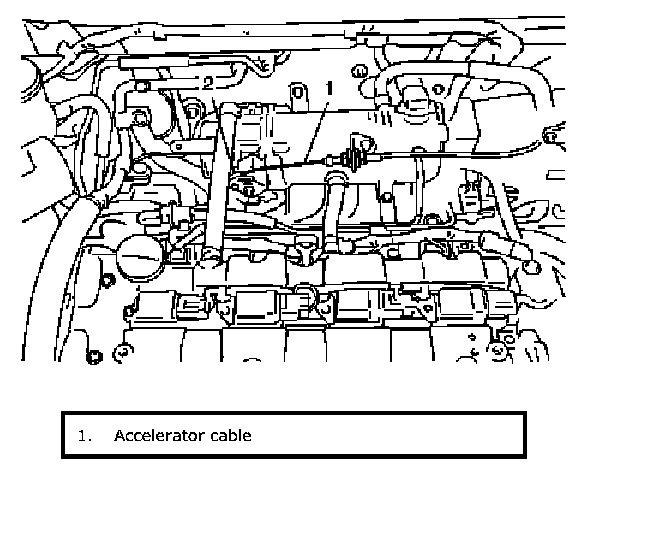

Throttle Body On-Vehicle Inspection




Check that throttle valve lever (2) moves smoothly.
