Home >> Suzuki >> 2004 >> Aerio L4-2.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Malfunction Indicator Lamp >> Malfunction Indicator Lamp Remains "ON" after Engine Starts

Malfunction Indicator Lamp Remains "ON" after Engine Starts

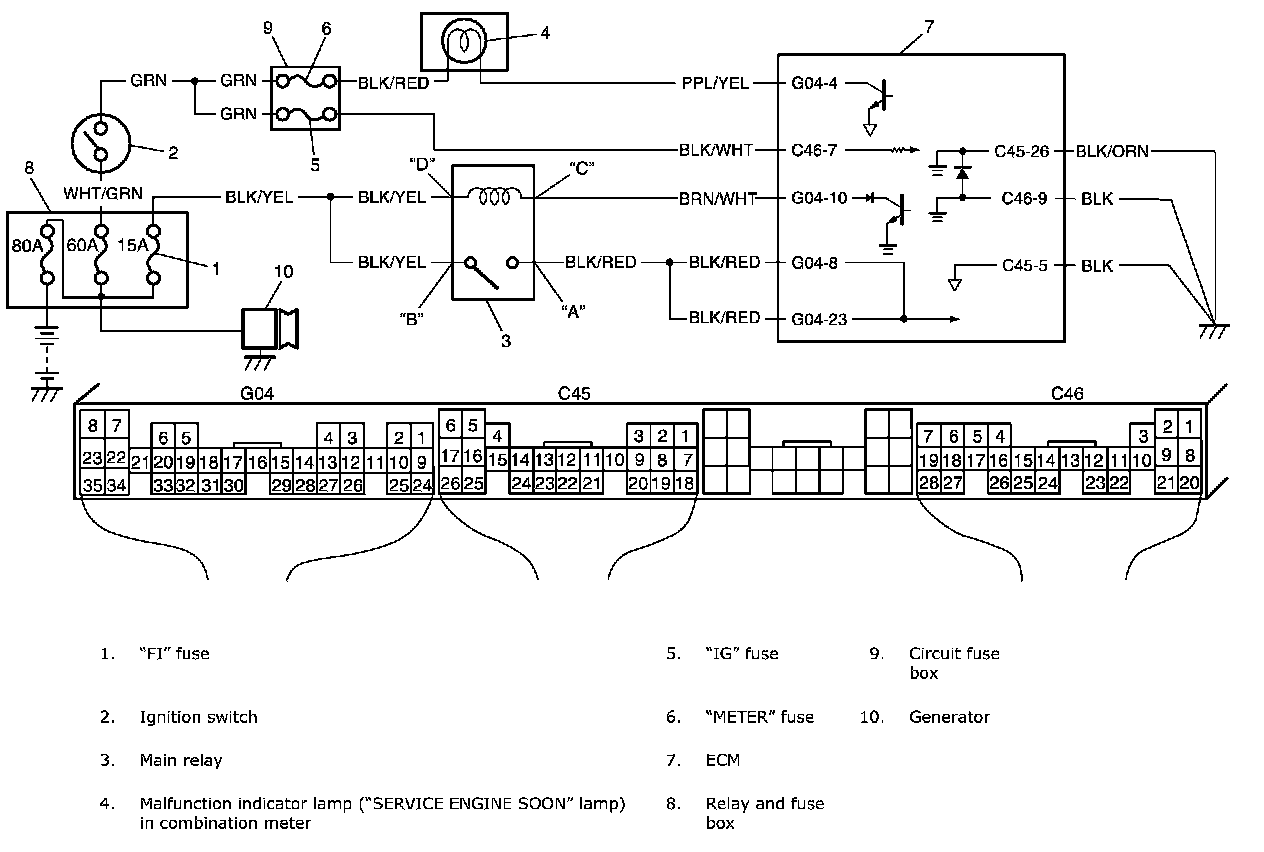

Wiring Diagram / Circuit Description:

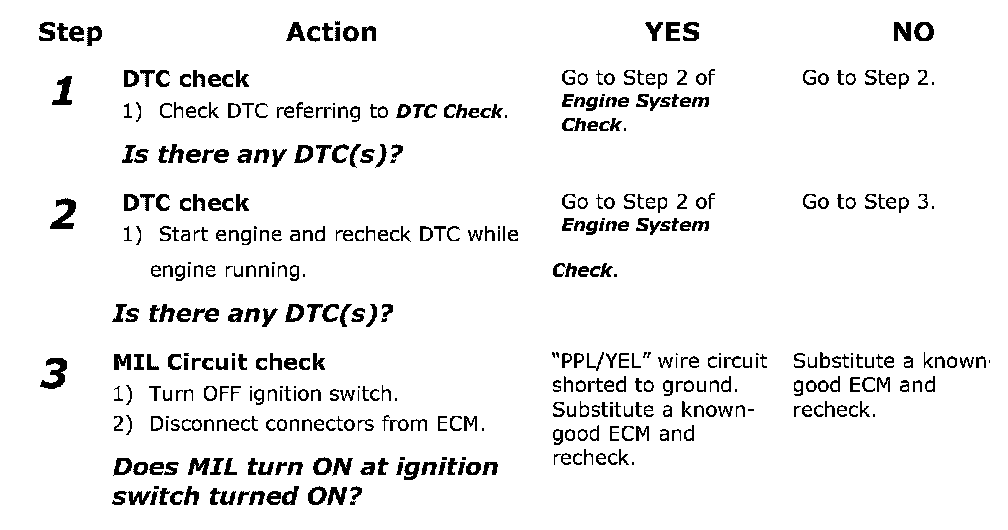

Step 1 - 3:




Troubleshooting
