Air Cleaner Fresh Air Duct/Hose: Service and Repair

Air Cleaner Outlet Hose Removal and Installation

Removal

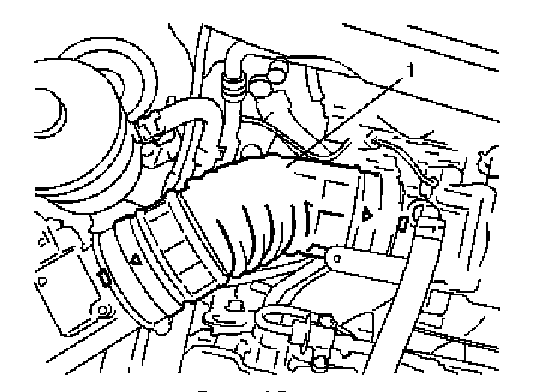

1. Remove air cleaner outlet hose (1).

Installation
Reverse removal procedure for installation.

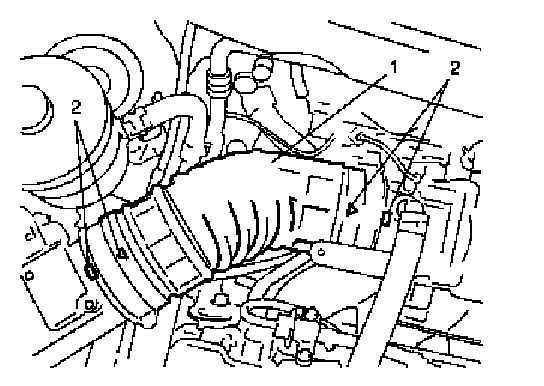

1. Install air cleaner outlet hose (1) by aligning match marks (2) as shown in figure.
