Main Bearings, Crankshaft and Cylinder Block

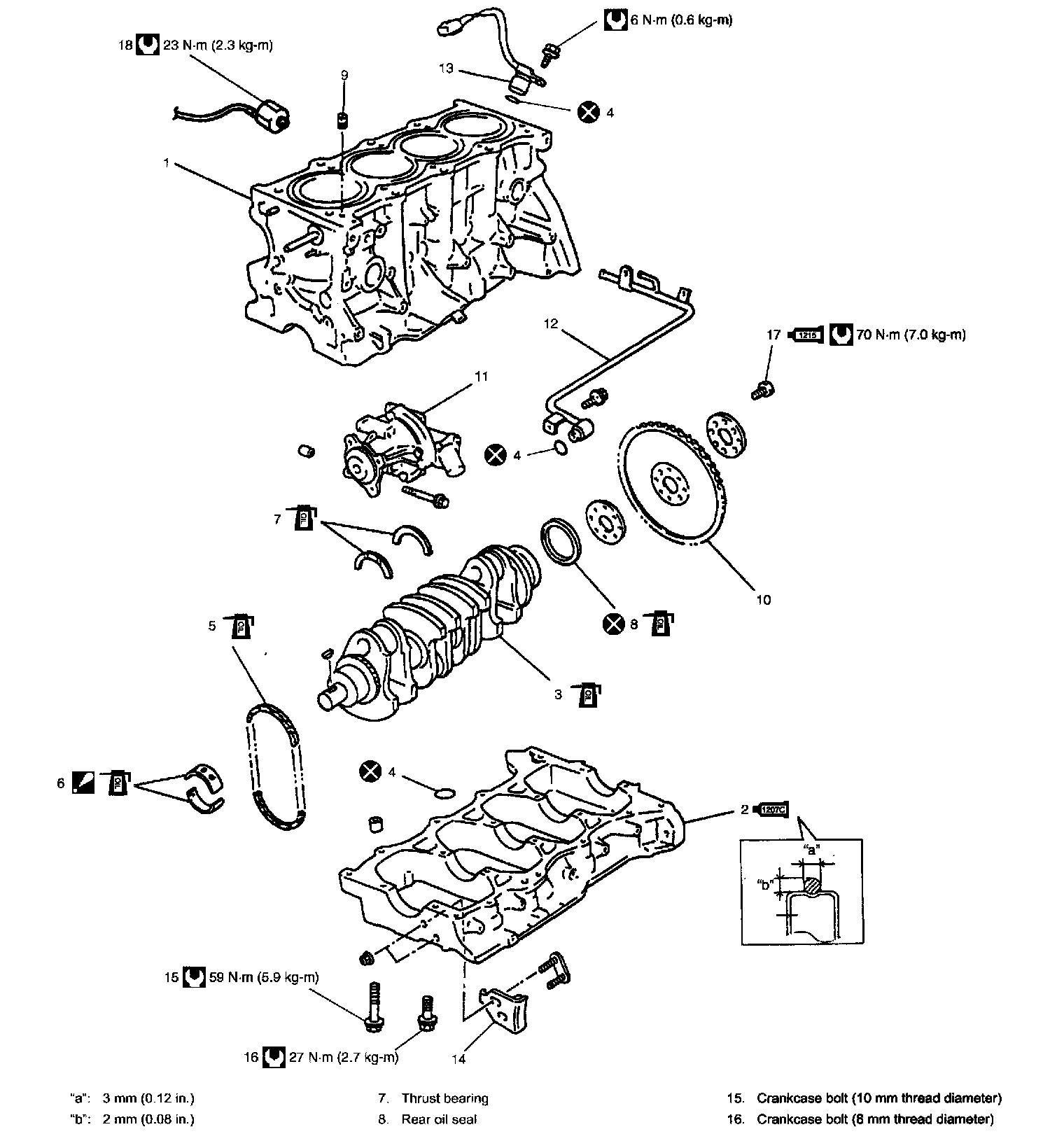

Main Bearings, Crankshaft and Cylinder Block Components W/ Related Components

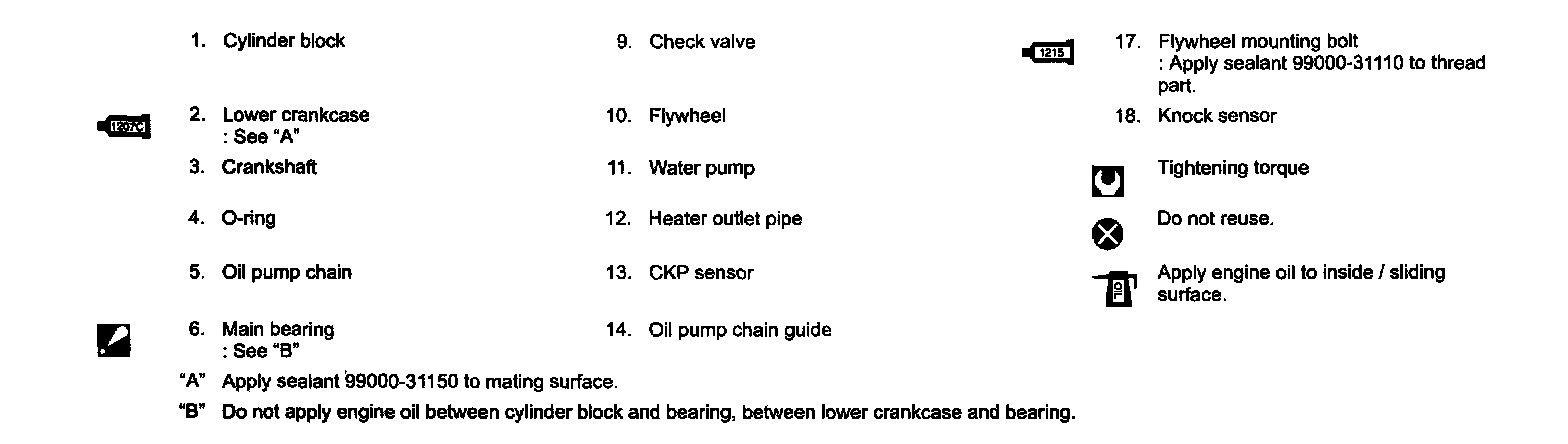

Part 1 of 2





Part 2 of 2
