Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
E Connectors
E Connectors

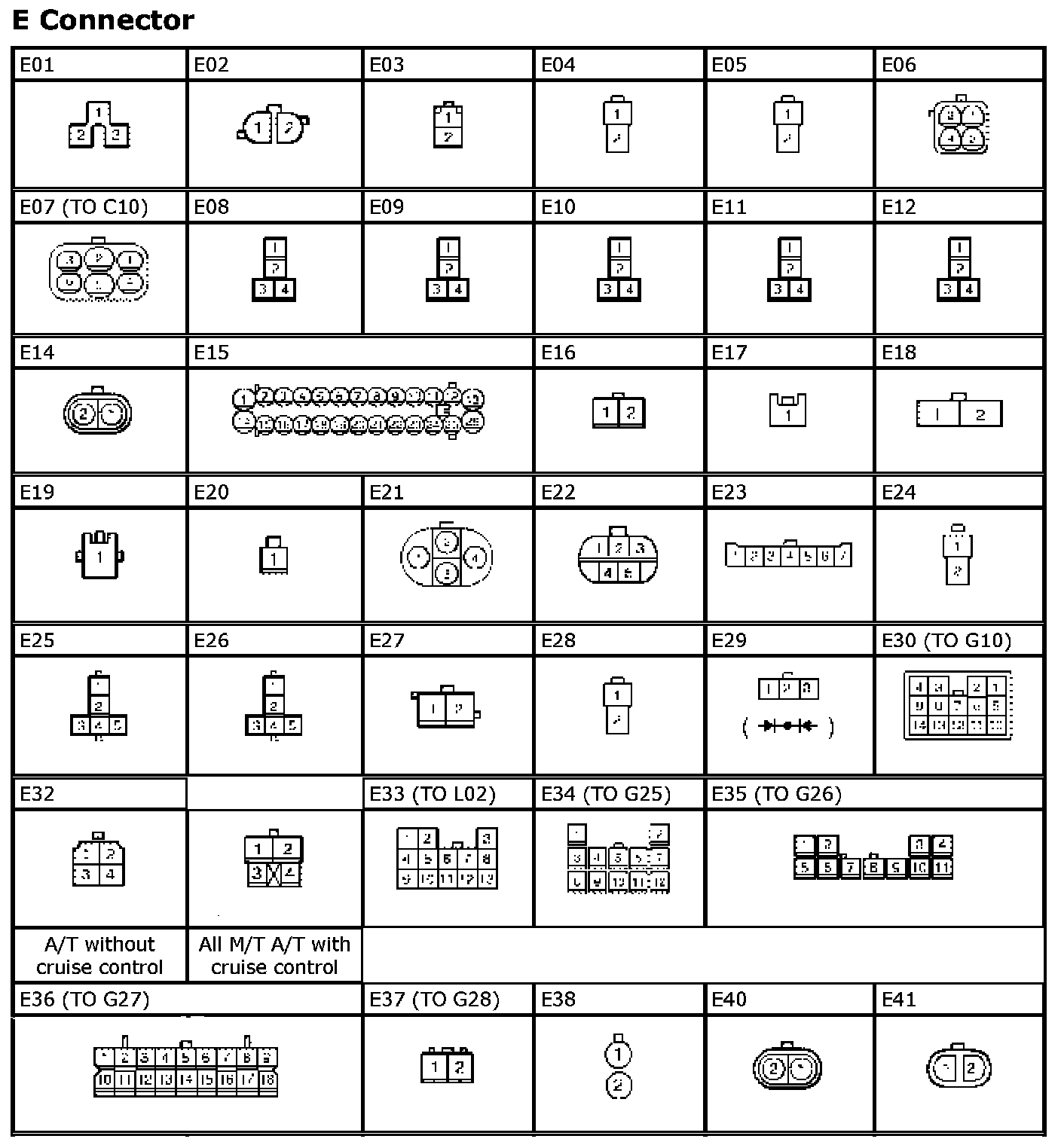

E01 - E41:

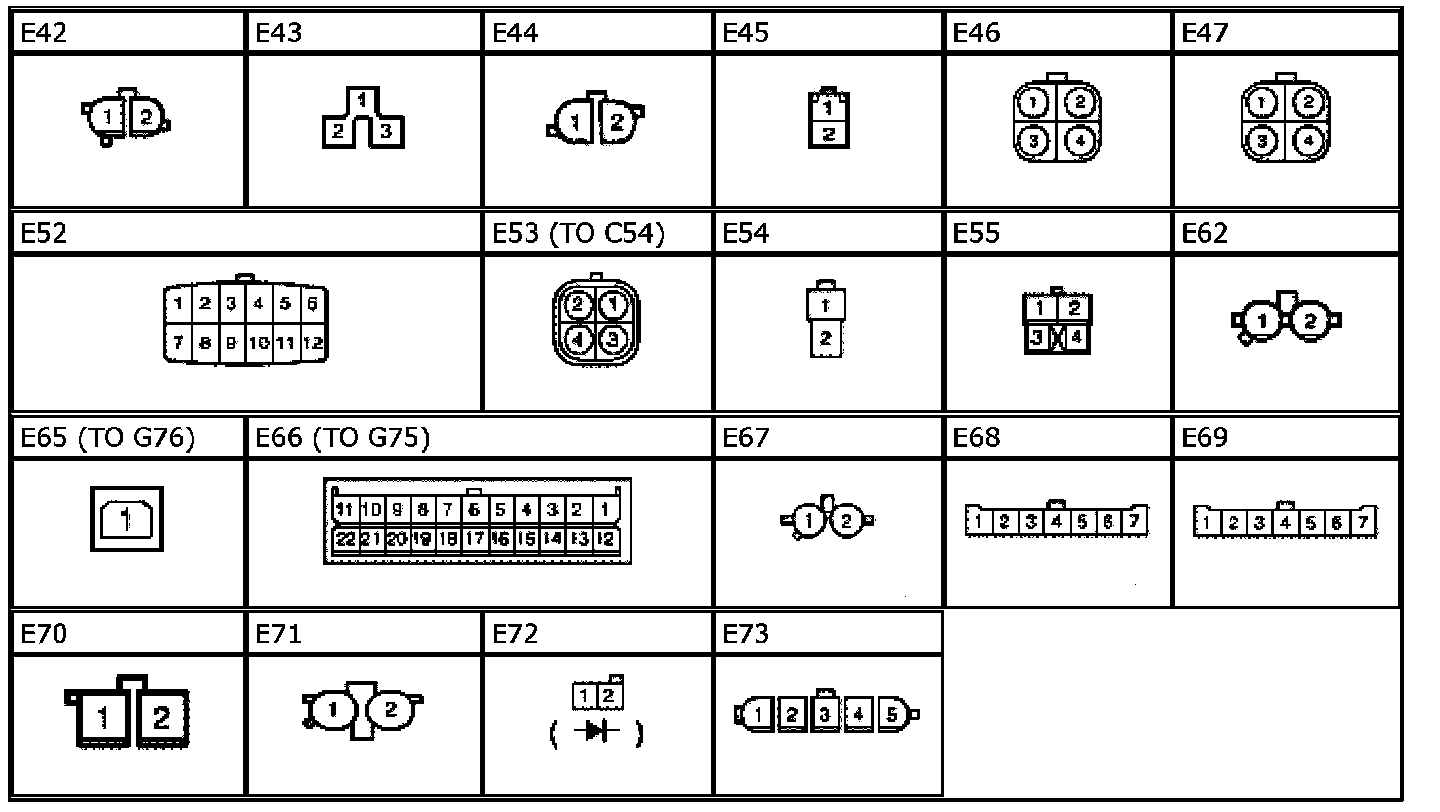

E42 - E73:
