Without Scan Tool

DTC Clearance

WARNING: When performing a driving test, select a safe place where there is neither any traffic nor any traffic accident possibility and be very careful during testing to avoid occurrence of an accident.

After repair or replace malfunction part(s), clear all DTCs by performing the following procedure or using SUZUKI scan tool.
1. Turn ignition switch OFF.

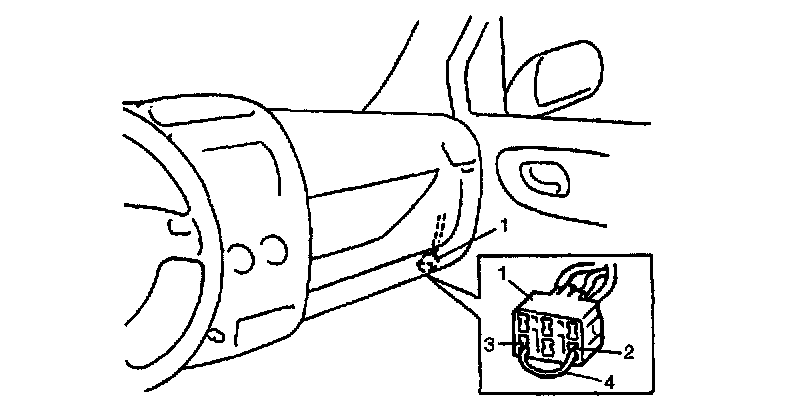

2. Using service wire (4), connect diagnosis switch terminal (2) of monitor connector (blue) (1) to ground terminal (3).
3. With connection described in Step 2 maintained, turn ignition switch ON.

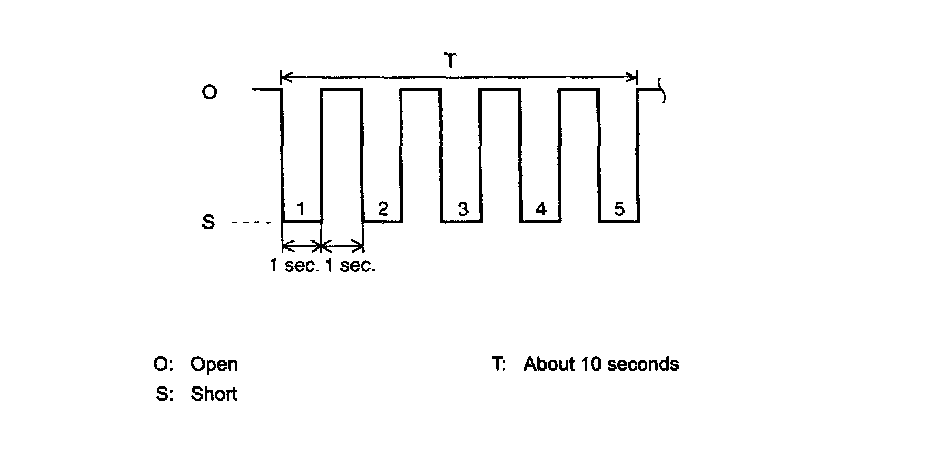

4. Repeat disconnecting and reconnecting of service wire between diagnosis and ground terminals 5 times or more at about 1 second interval within 10 seconds.
5. Turn ignition switch OFF and disconnect service wire from monitor coupler.
6. Perform "Driving Test" (Step 2 of "ABS Check: ") and "DTC Check: " and confirm that normal DTC (DTC 12. is displayed; not malfunction DTC.

NOTE: It is also possible to clear DTC by using SUZUKI scan tool.
