Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Transfer Case >> Service and Repair >> Components

Components

Part 1 Of 3:

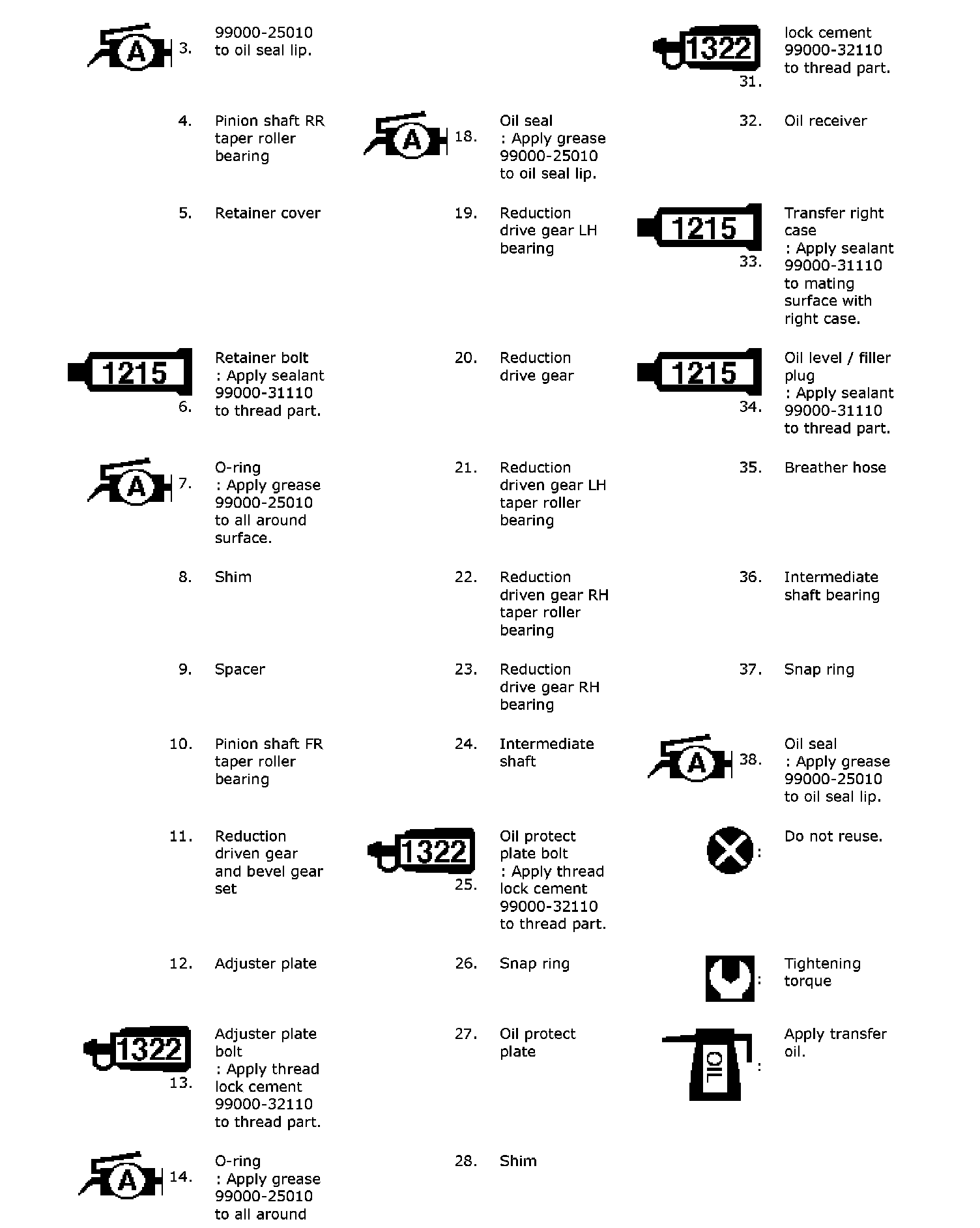

Part 2 Of 3:




Part 3 Of 3:

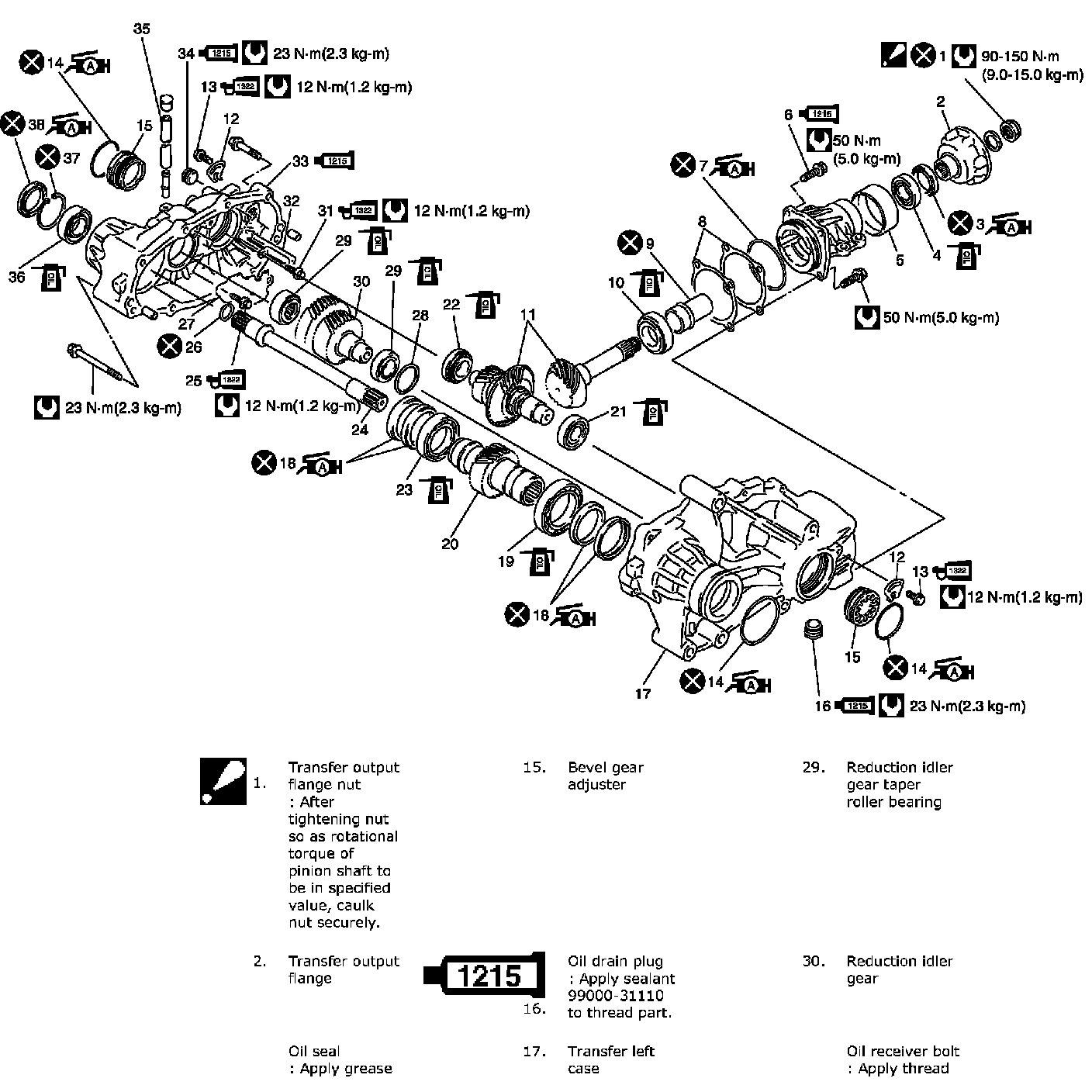

Transfer Components
