Clutch Master Cylinder Disassembly and Reassembly

Clutch Master Cylinder Disassembly and Reassembly
Disassembly

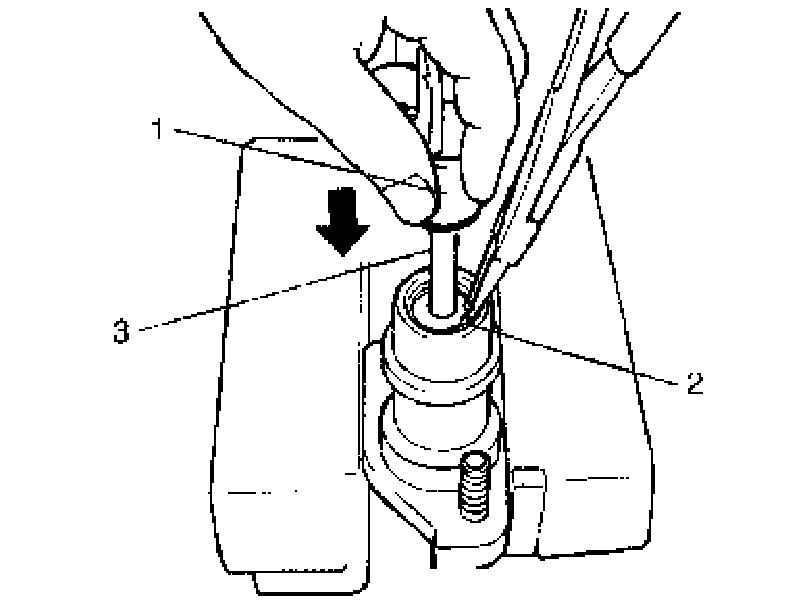

1. Remove boot (1) and then circlip (2) with piston rod (3) pushed in.

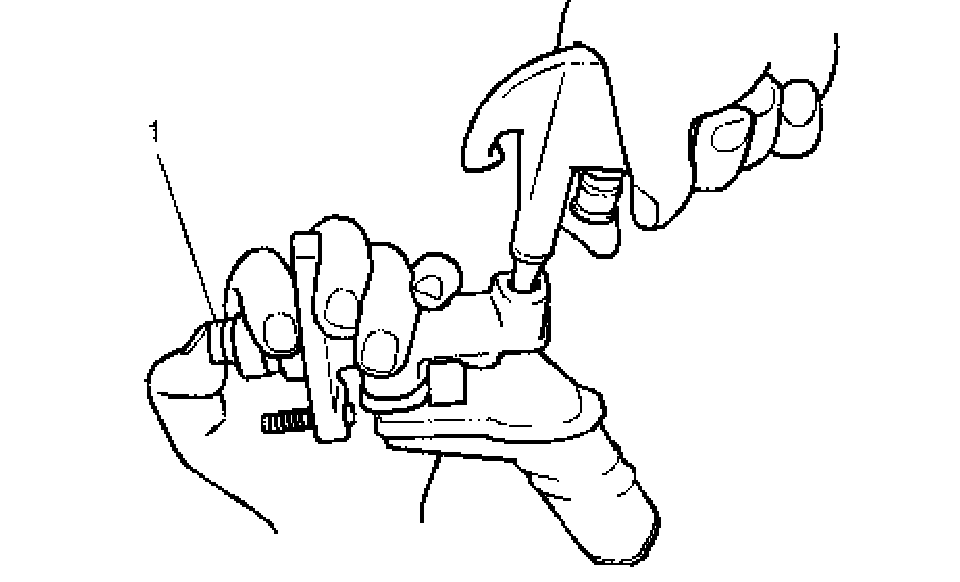

2. Blow compressed air gradually into hole for pipe connection to remove piston assembly (1), using care to prevent it from jumping out.

Reassembly

NOTE: Before installation, wash each part in specified brake fluid.

1. Apply brake fluid to piston assembly and inside of cylinder body.
2. Install piston assembly into cylinder.

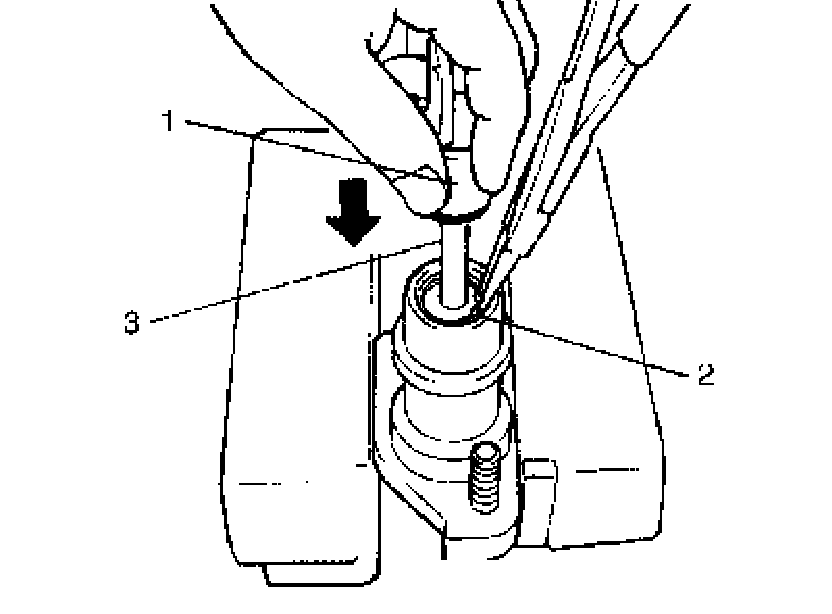

3. With piston pushed rod (3) down, install circlip (2) as shown.





4. Install boot (1).
