Reading and Clearing Diagnostic Trouble Codes
>>
Displaying & Reading Trouble Codes
>>
Without Scan Tool
Without Scan Tool
"O/D OFF" Lamp Check
1.
Turn ignition switch ON.
2.

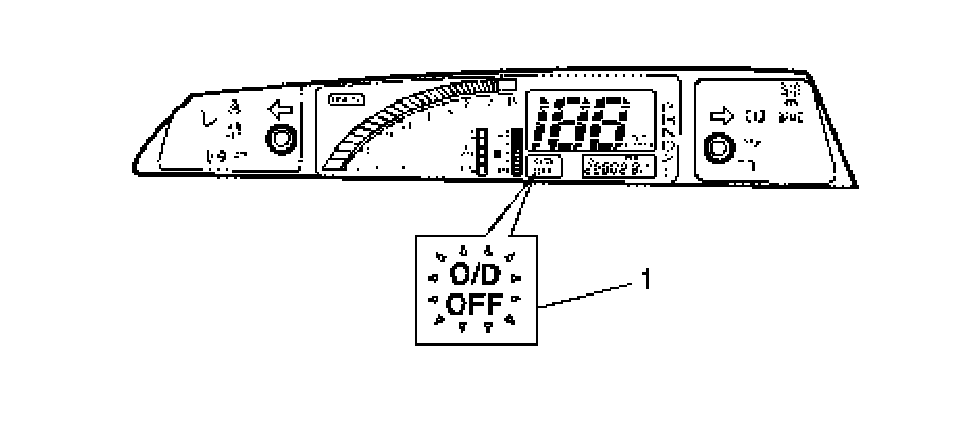

Check that "O/D OFF" lamp (1) lights for about
2 sec.
and then goes OFF.
If anything faulty is found, advance to "O/D OFF" Lamp Circuit Check.
