DTC CheckAutomatic transaxle DTC can be checked using any one of the following 3 methods.
Reading DTC from ECU Using SUZUKI Scan Tool - Method-1
Refer to the same item in DTC Check for reading procedure.
Reading DTC from TCM Using SUZUKI Scan Tool - Method-2
1. Turn ignition switch OFF.

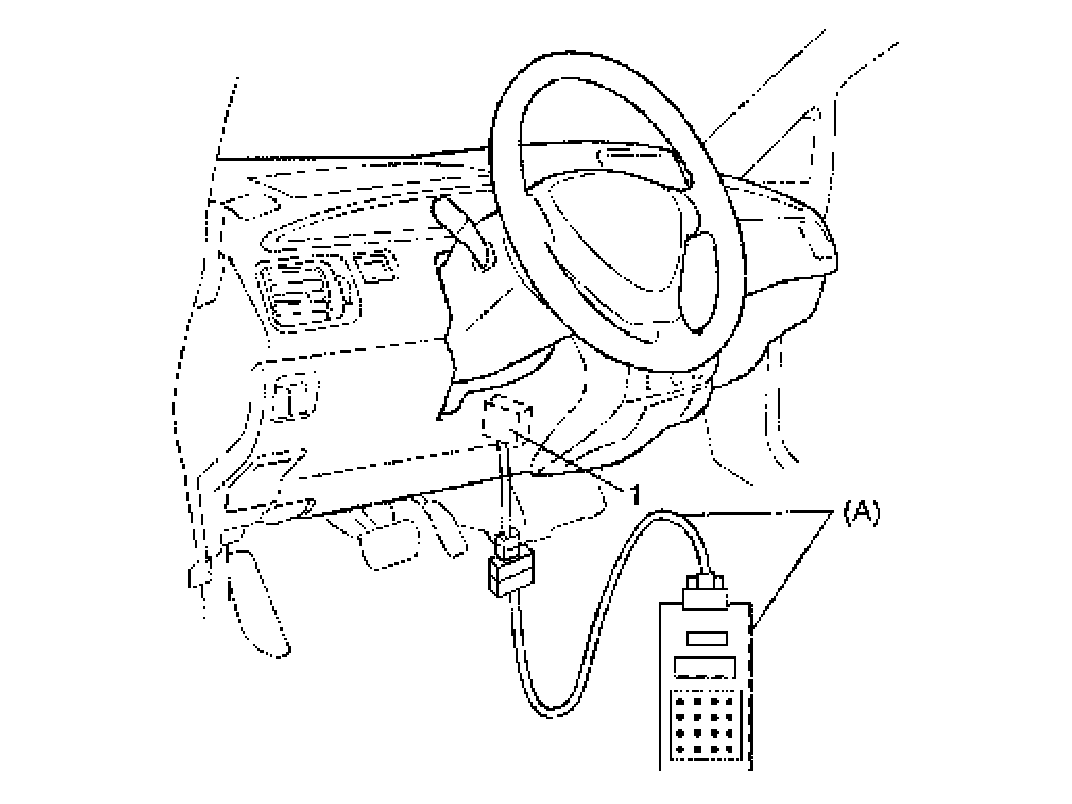

2. Connect SUZUKI scan tool to Data Link Connector (DLC) (1) located in underside of instrument panel at driver's seat side.
Special Tool (A): SUZUKI scan tool (Tech 2 kit)
3. Turn ignition switch ON.
4. Read DTC according to instructions displayed on SUZUKI scan tool and print it down. Refer to SUZUKI scan tool operator's manual for further details.
5. After completing the check, turn ignition switch OFF and disconnect SUZUKI scan tool from Data Link Connector (DLC) (1).
Displaying DTC on Odometer - Method-3
1. Turn ignition switch OFF.

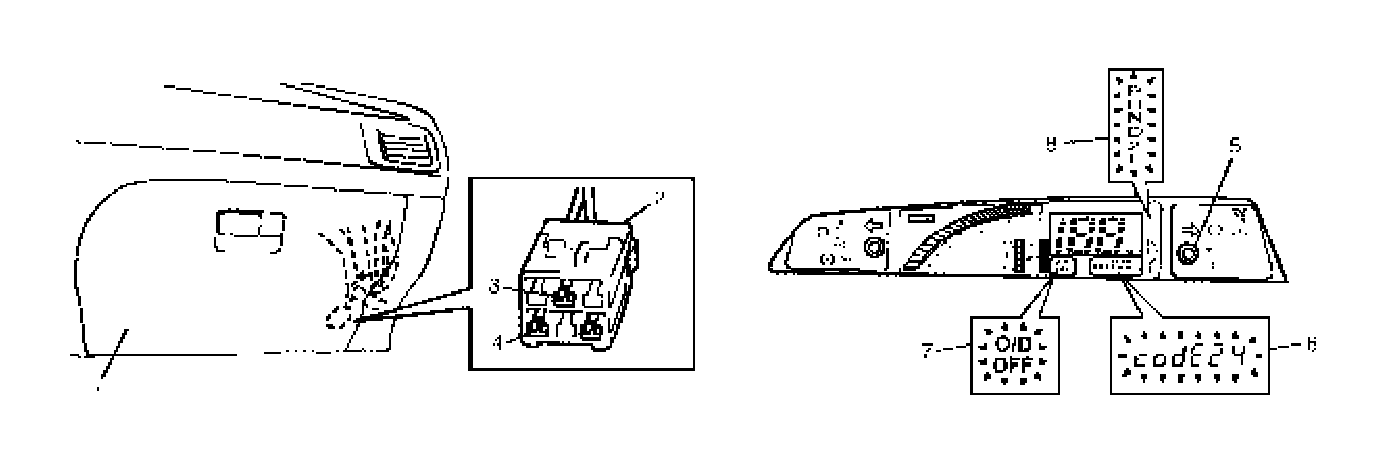

2. Remove glove box (1) from instrument panel.
3. Using service wire, connect diagnosis switch terminal (3) with ground terminal (4) of monitor connector (color in Blue) (2).
4. Turn ignition switch ON.
5. Press reset button (5) and hold on pressing it.
6. Read DTC displayed on odometer (6). (For example, DTC No. 24 is displayed on odometer in the figure.)
7. After completing the check, release reset switch, turn ignition switch OFF and disconnect service wire from monitor connector (2).
NOTE: While DTC is displayed on odometer, "O/D OFF" lamp (7) and shift indicator (8) light together.
