TCM Power and Ground Circuit Check
TCM Power and Ground Circuit Check
TCM
Power and Ground Circuit Check

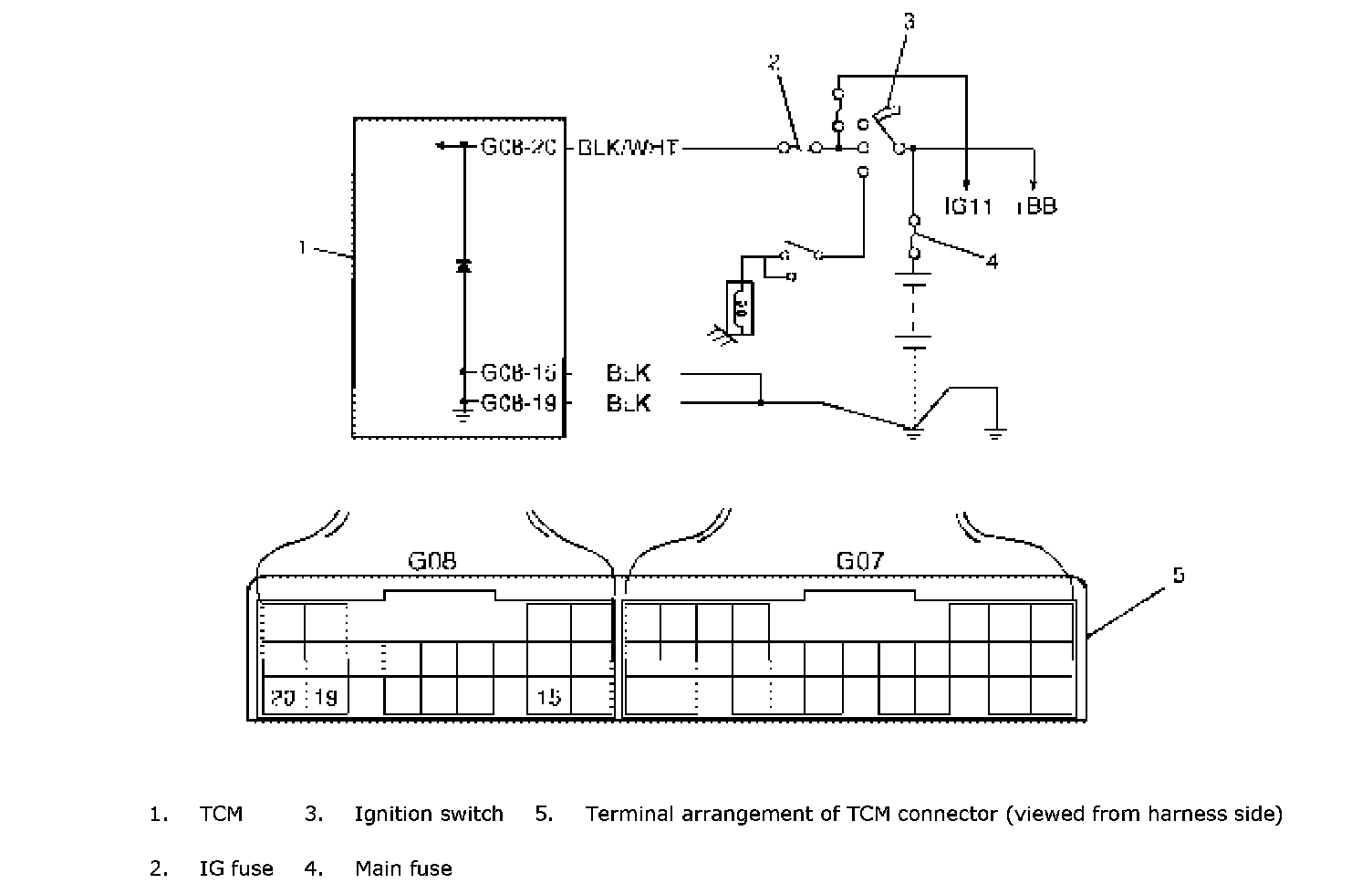

Wiring Diagram
Part 1 Of 2:
Part 2 Of 2:

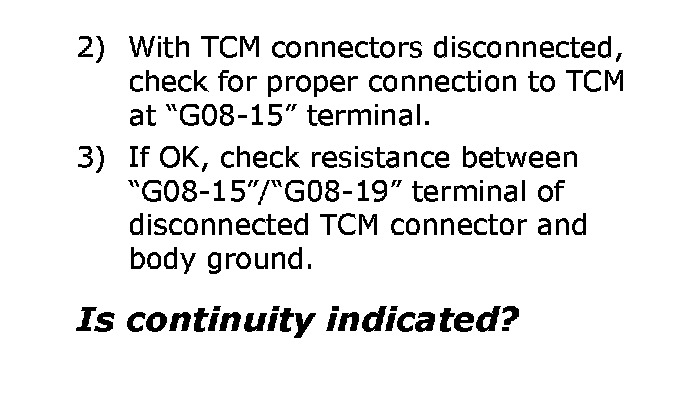

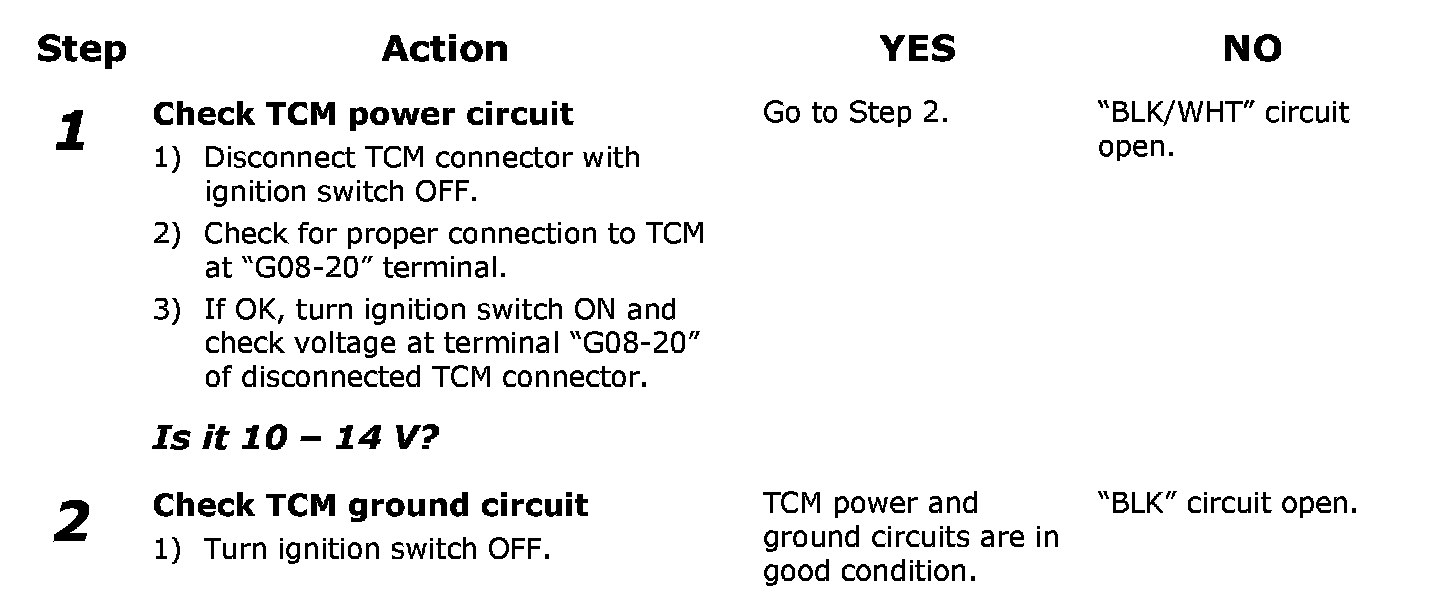

Troubleshooting
