Home >> Suzuki >> 2003 >> Aerio AWD L4-2.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> A/T Basic Check

A/T Basic Check

A/T Basic Check

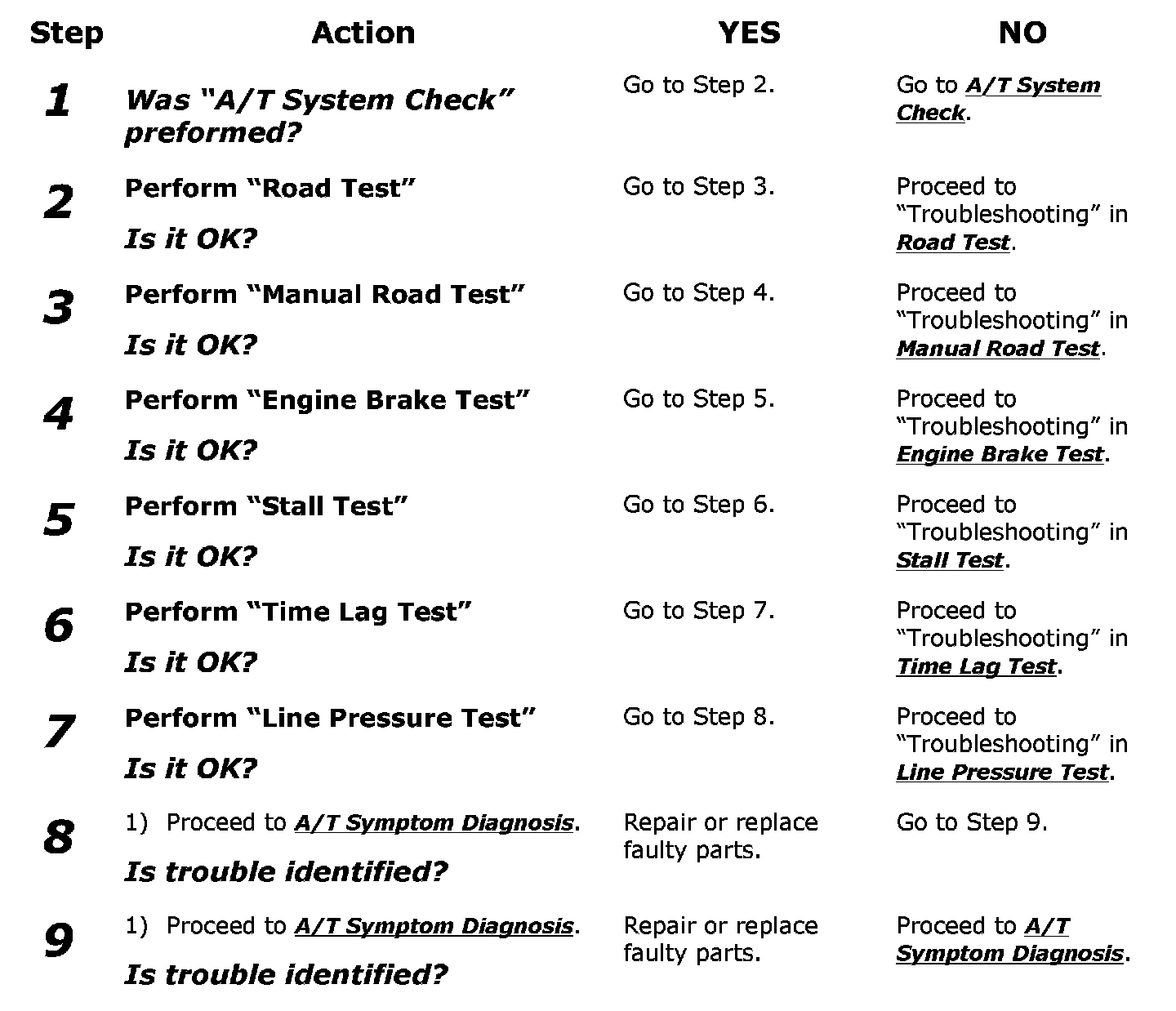

This check is important for troubleshooting when TCM has detected no DTC and no abnormality has been noted in visual inspection. Follow the flow table carefully.
