Repair Instructions

Inspection and Repair Required after Accident
After an accident, whether the seat belt pretensioner has been activated or not, be sure to perform checks and repairs described on "Repairs and Inspections Required after an Accident"

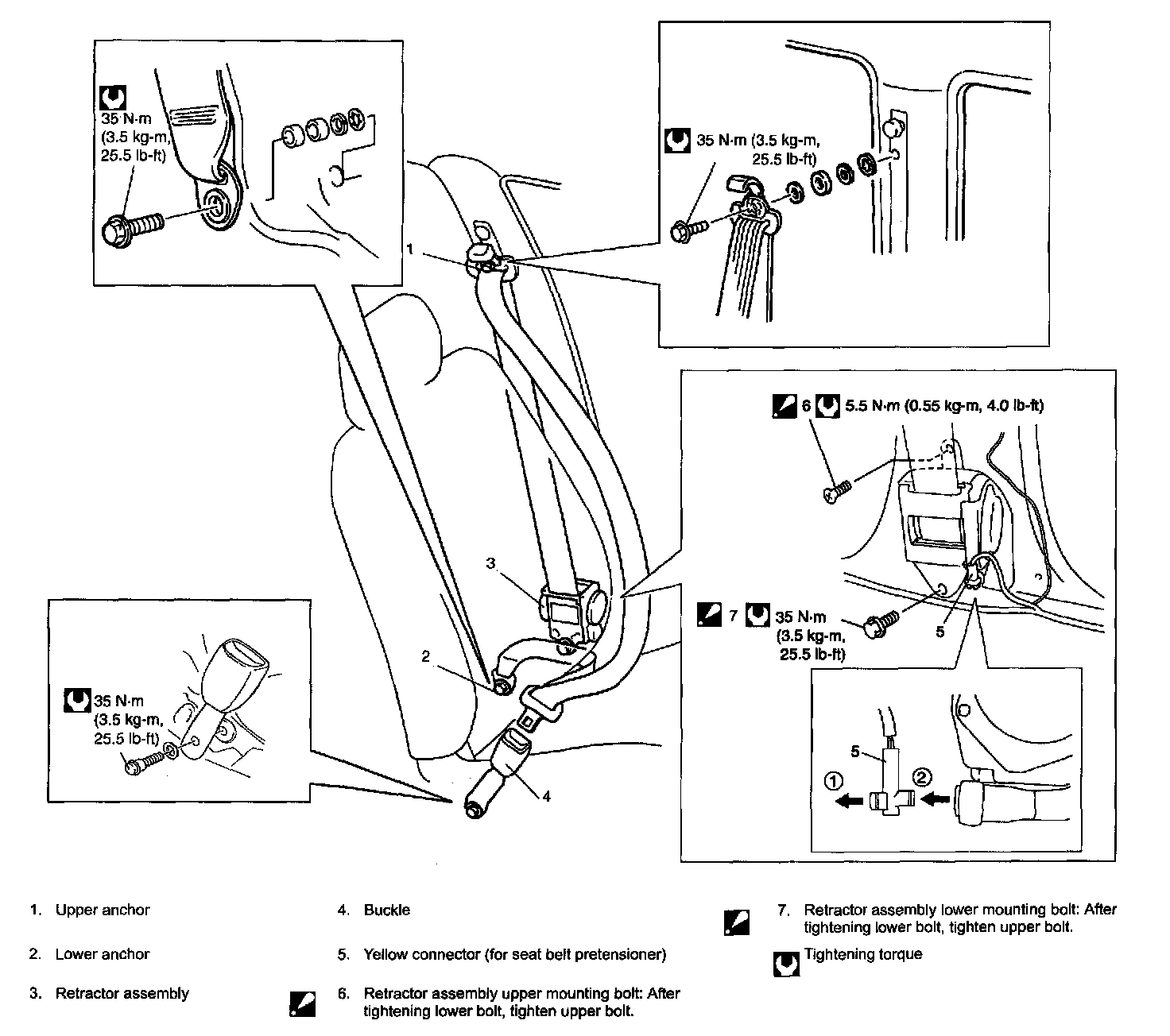

Front Seat Belt Components

WARNING:
- Never attempt to disassemble or repair the seat belt pretensioner (retractor assembly). If any abnormality is found, be sure to replace it with new one as an assembly.
- Be sure to read "Precautions on Service and Diagnosis of Seat Belt" before starting to work and observe every precaution during work. Neglecting them may result in personal injury or unactivation of the seat belt pretensioner when necessary.
